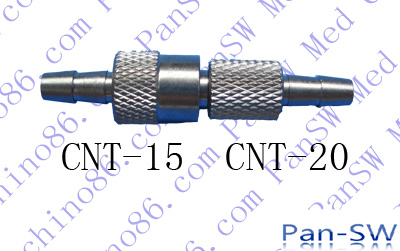

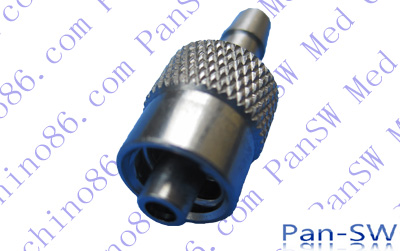

Use with CNT-15

Our connectors and solutions are compatible with most patient monitor brands. Pls contact PanSW for the details.

Material: brass with nickle plated;

operating temperature range: -30℃～＋60℃
leak rate: less than 4mmHG/min(0.5Kpa/min) when pressure difference>400mmHg
mechanical life: more than 1000 times plug and unplug

PanSW part number: CNT-20



compliance with:

ANSI/AAMI SP10 EN60601-1 EN980 EN1041 ISO 10993-1 ISO 10993-5 ISO 10993-10

RoHS
