Picture 1: connector view

material: TPU jacket wires; completely shielded structure; more details for cable structure here:

Compatible with: Burdick quinton q stress treadmill

Part No	OEM No	Description
EKG-10030A		integrated; IEC, DB15M-Din3.0
EKG-10030B		integrated;  AHA, DB15M-Din3.0
EKG-10030C		integrated; IEC, DB15M-Banana4.0
EKG-10030D		integrated; AHA, DB15M-Banana4.0
EKG-10030E		integrated; IEC, 10 leads clip end
EKG-10030F		integrated; AHA, DB15M-clip
EKG-10030G		integrated; IEC, DB15, snap
EKG-10030H		integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

compatible Burdick Quinton Q stress ECG cable, IEC color, clips

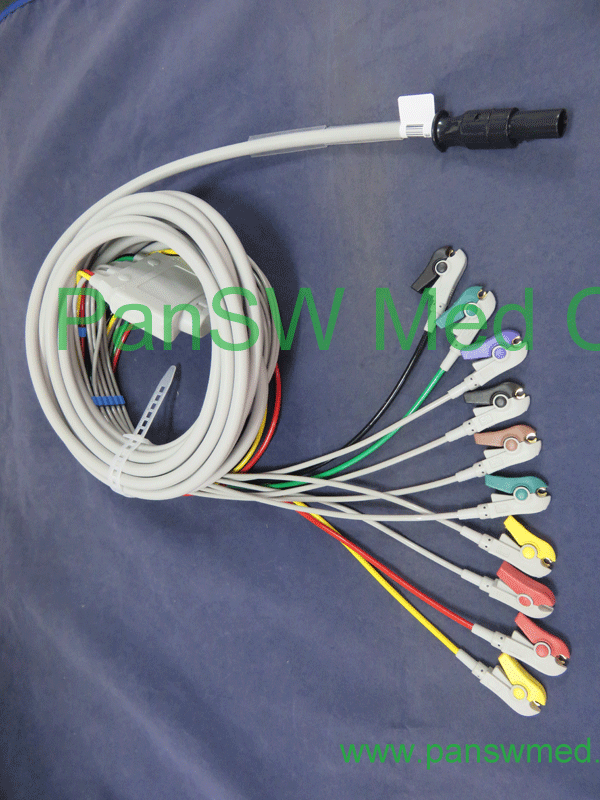

compatible burdick quinton q stress ecg cable, ten leads;

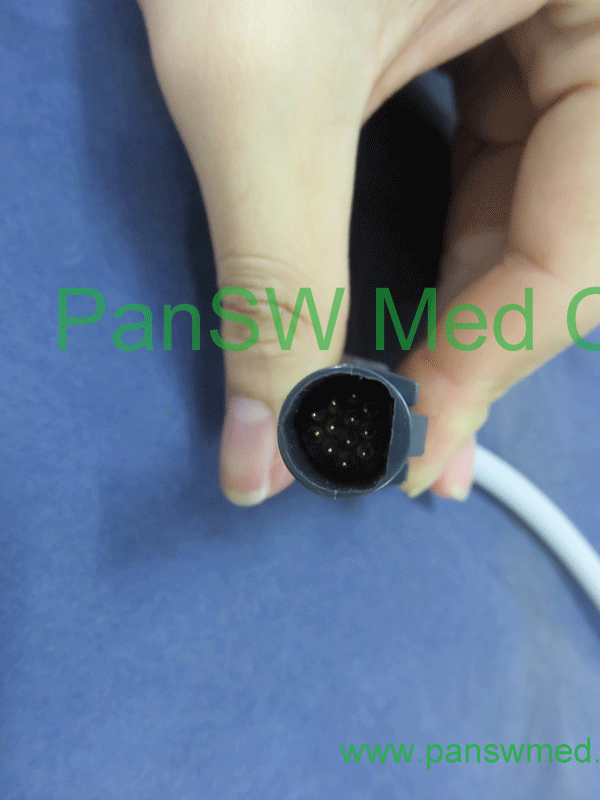

12 pins connector, hypertronics type

multi use adapter to use with disposible electrodes...

banana plug to use along with disposible ECG electrodes, with an adapter.
