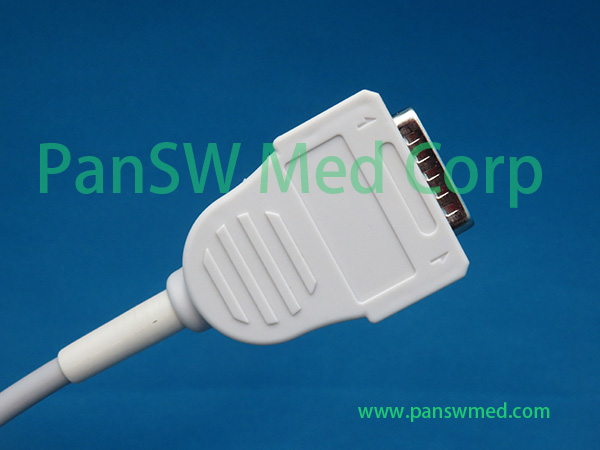

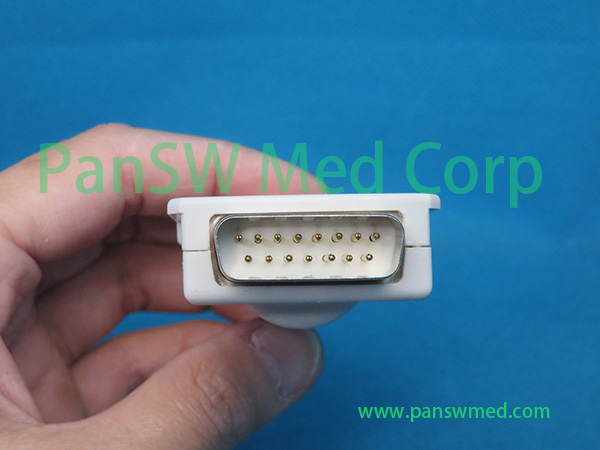

Picture 1: connector view

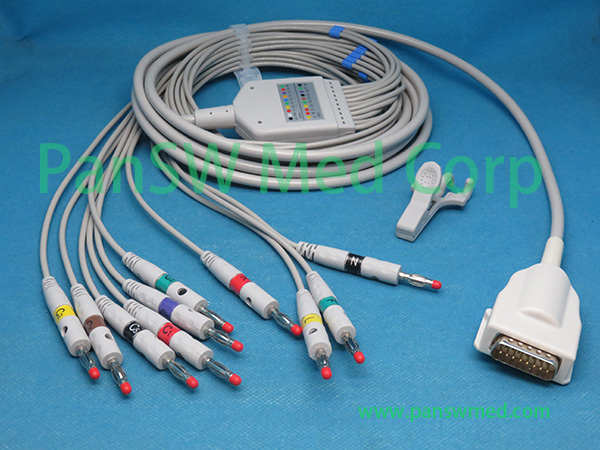

Description: Connector:DB 15pin male 3.0 Din on electrode end

material: TPU jacket wires; completely shielded structure; more details for cable structure here:

Compatible with: Burdick

BURDICK (QUINTON):Eclipse 4,
Eclipse 400,Eclipse 8,
Eclipse 800, Eclipse 850,
Eclipse 850i, Eclipse Plus,
Eclipse LE II BURDICK with
serial number starting with 1067
or 92304
ATRIA: ATRIA PLUS, ATRIA3000

Part No	OEM No	Description
EKG-10051A		integrated; IEC, DB15M-Din3.0
EKG-10051B		integrated; AHA, DB15M-Din3.0
EKG-10051C		integrated; IEC,DB15M-Banana4.0
EKG-10051D		integrated; AHA,DB15M-Banana4.0
EKG-10051E		integrated; IEC,DB15M-Clip end
EKG-10051F		integrated; AHA,DB15M-Clip end
EKG-10051G		integrated; IEC,DB15M-snap end
EKG-10051H		integrated; AHA,DB15M-snap end

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
