Compatible with Mortara ELI 250/ELI210/Eli10/ELI150/ELI350
Description: impedance protected
IEC/AHA/AAMI color coding available,
banana/clip/snap ends available
medical TPU jacket cable with dual shielding structure;
For Mortara ELI50/100/200 patient cable, click here

All the connectors available:

Part No	OEM No	Description
EKG-10054A		integrated; IEC, DB15M-Din3.0
EKG-10054B		integrated; AHA, DB15M-Din3.0
EKG-10054C		integrated; IEC,DB15M-Banana4.0
EKG-10054D		integrated; AHA,DB15M-Banana4.0
EKG-10054E		integrated; IEC,DB15M-Clip end
EKG-10054F		integrated; AHA,DB15M-Clip end
EKG-10054G		integrated; IEC,DB15M-snap end
EKG-10054H		integrated; AHA,DB15M-snap end

Original part number: 9293-040-50 (banana end); 9293-042-50 (clips end)

9293-032-60

More information, more products please contact Pansw.

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

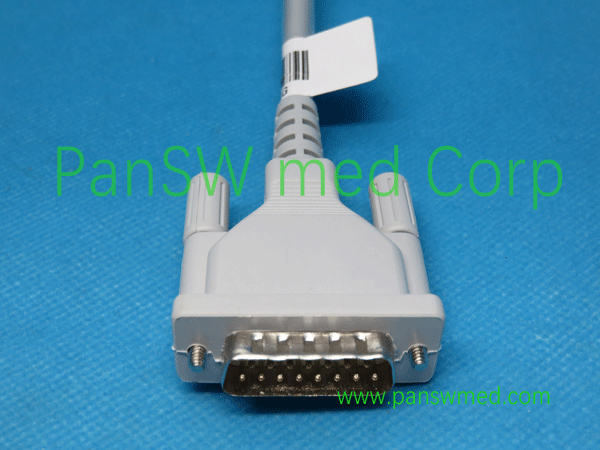

Mortara ELI250 ECG cable pinout

multi use adapter to use with disposible electrodes...

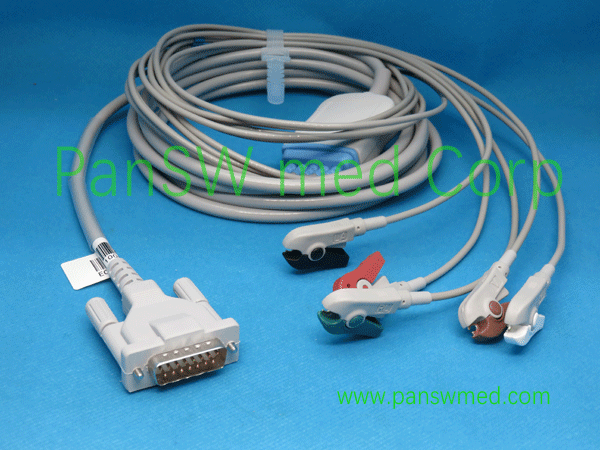

compatible ecg patient cable for Mortara, with 5 leads, clips, AHA color.
we have other cables like IEC color or snap, banana leads
