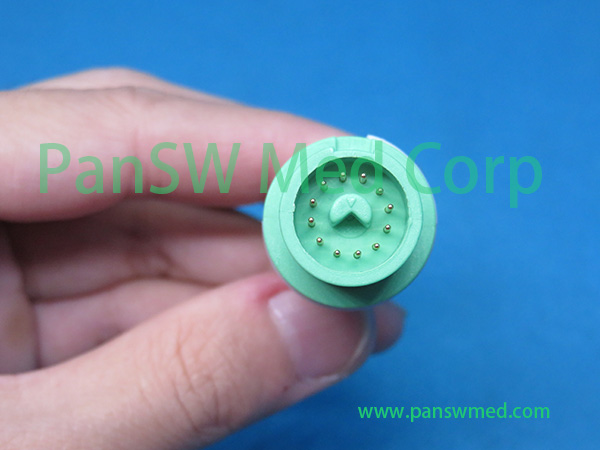

Description: Connector: Round 15pin connector ,
Electrode terminal: Banana
Compatibile with: NEC;YY-1063; NEC:K-3321,3330,3370
Types of cables available are listed below:
Part No |
OEM No |
Description |
EKG-10011A |
|
integrated; IEC, DB15M-Din3.0 |
EKG-10011B |
|
integrated; AHA, DB15M-Din3.0 |
EKG-10011C |
|
integrated; IEC,DB15M-Banana4.0 |
EKG-10011D |
|
integrated; AHA,DB15M-Banana4.0 |
EKG-10011E |
|
integrated; IEC,DB15M-Clip end |
EKG-10011F |
|
integrated; AHA,DB15M-Clip end |
EKG-10011G |
|
integrated; IEC,DB15M-snap end |
EKG-10011H |
|
integrated; AHA,DB15M-snap end |
Core technology:
1, All the leads we have longer length to coordinate with bigger size patients without difficulty.
2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment
3, the wires we use bigger size, very durable; surface is convenient for cleaning
4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.
compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
multi use adapter to use with disposible electrodes...
