Description: Connetor: 12 pin connector;

Cable material: medical TPU jacket wires; anti-noise design; double shielding; main cable: 2.5 meters long; leadwire length: 0.9 meters for chest leads; 1.3 meters for limb leads; main cable OD: 6.0mm; lead wire OD: 3.0mm; more details of ECG cable structure here:

Electrode terminal: 3.0 Din type. Other connectors for electrodes also available, please check the list below;

Compatible with: Nihon Kohden BSM series, 10 leadwires

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Please refer to the list below for all the types cables; for more information please feel free to contact Pansw.

Part No	OEM No	Description
EKG-10025A		integrated; IEC, DB15M-Din3.0
EKG-10025B		integrated;  AHA, DB15M-Din3.0
EKG-10025C		integrated; IEC, DB15M-Banana4.0
EKG-10025D		integrated; AHA, DB15M-Banana4.0
EKG-10025E	BJ-900P	integrated; IEC, 10 leads clip end
EKG-10025F	BJ-900PA	integrated; AHA, DB15M-clip
EKG-10025G		integrated; IEC, DB15, snap
EKG-10025H		integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

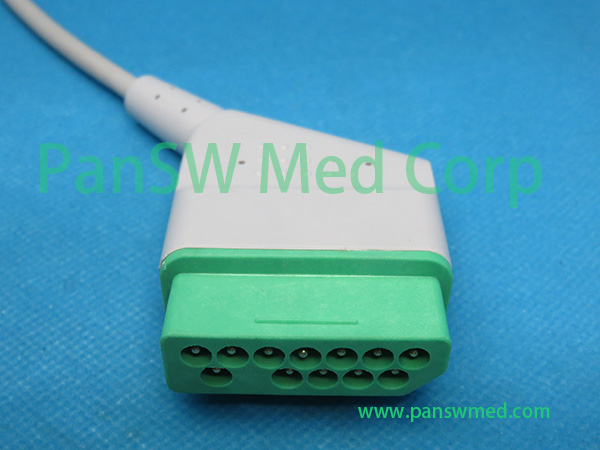

 connector view 1;

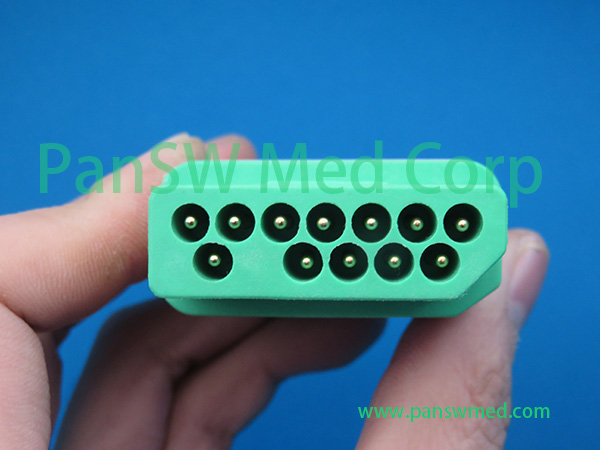

connector view 2

compatible Nihon Kohden BSM ten leads ECG cable, IEC color, clip

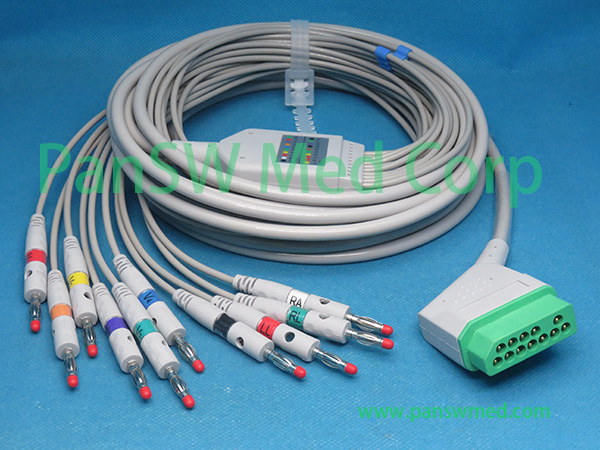

compatible Nihon Kohden BSM ten leads ECG cable, AHA color, banana

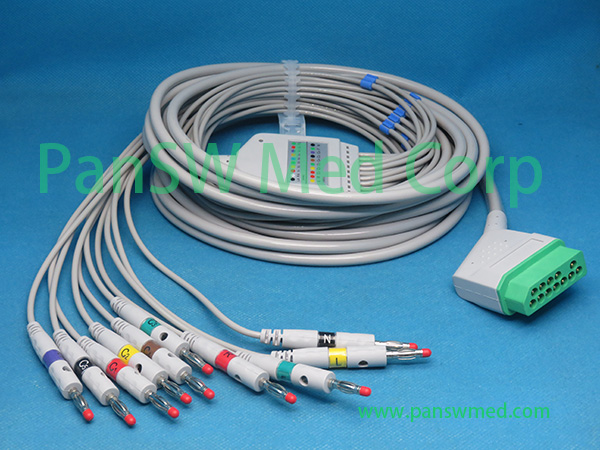

compatible Nihon Kohden BSM ten leads ECG cable, IEC color, banana

compatible Nihon Kohden BSM ten leads ECG cable, AHA color, DIN 3.0 connector

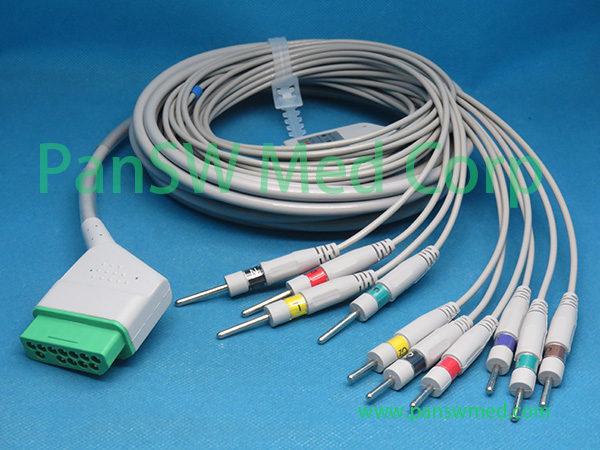

compatible Nihon Kohden BSM ten leads ECG cable, IEC color, DIN 3.0 connector

compatible Nihon Kohden BSM ten leads ECG cable, AHA color, clip/grabber

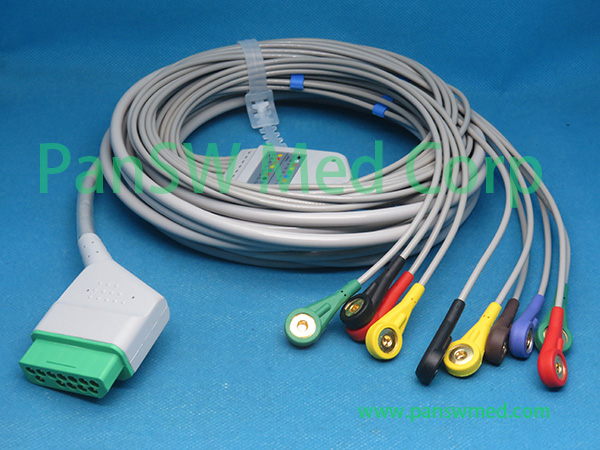

compatible Nihon Kohden BSM ten leads ECG cable, IEC color, snap

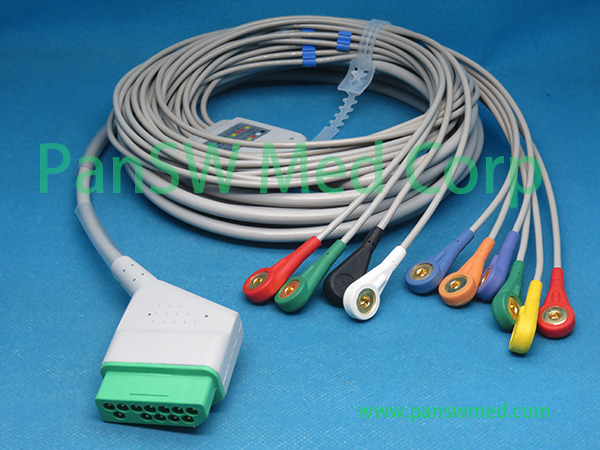

compatible Nihon Kohden BSM ten leads ECG cable, AHA color, snap

multi use adapter to use with disposible electrodes...
