Product >>ECG/EKG cables>>compatible Schiller 10-lead resting ECG/EKG cable

For description please refer to below

for more detailed pictures please click here.

Description: Schiller 10 lead cable, AHA/IEC/AAMI Connector Guide:DB 15pin,
All cables are made from medical TPU jacket cables; all are carefully shielded with anti-noise design; connectors are molded with soft relief to make sure comfortable and duarable;
more details for cable structure here:

Compatibility:Schiller ECG :AT-102, CS-200, Cardiovit AT-10 plus, AT-104 PC, AT-110
Schiller: AT1 ,AT2, AT3, AT5, AT6, AT10, AT60,AT104 PC,CS100,CS6, CS 6/12,AT4, AT104, AT101, AT102; Avionics(Del Mar): 910 / 920 / 930
/ 940 / 942 / 950 / 960 / 970 / 980
Custo-med: Custo-norm
Cardioline: E1, E1R, E;Delta 3; Delta 300; C3
Cardiorapid: K11, K111, K112, K131, K31, K33, K36
Cardiotek: EP Tracer
Dr Lee: ECG-310A; ECG-310B;
Del mar: 910,920,930,940,942,950,
960,970,980
Elettronica Trentina/Carditte: Autoruler 12/1; 12/3; Microruler 12/1; Microruler 12/3; Microtel: Excel 101; Excel 103; Excel 106;
Ergoline: Autoruler, Autoscript 6/12
Cardiette, EK 3003 / 3012, Ergoline
Esaote Biomedica: EKG P120
Fidelity: LP 3000
Innomed: Heart Mirror1, Heart Mirror3; Heart Mirror3D; Heart Screen 80G; Heart Screen 112C; Heart Screen 112D;
Kontron: EKG P80
Progetti: EPG Smarty; EPG Pocket; EPG Junior; EPG View; EPG 6 View; EPG Plus; EPG 612; EPG 13
Reynolds: Cardiotrack 12
Schiller:AT3, AT5, AT6,AT10, AT60,
AT104 PC, AT104,
CS6, CS12,CS100, CS200
Von Berg: Bioset 9000

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Clips end, banana end, snaps end available; AHA/AAMI/IEC color coding available. for detailed products types please refer to the list below:

Part No

OEM No

Description

EKG-10001A



integrated; IEC, DB15M-Din3.0

EKG-10001B



integrated; AHA, DB15M-Din3.0

EKG-10001C

AT-1

integrated; IEC,DB15M-Banana4.0

EKG-10001D



integrated; AHA,DB15M-Banana4.0

EKG-10001E

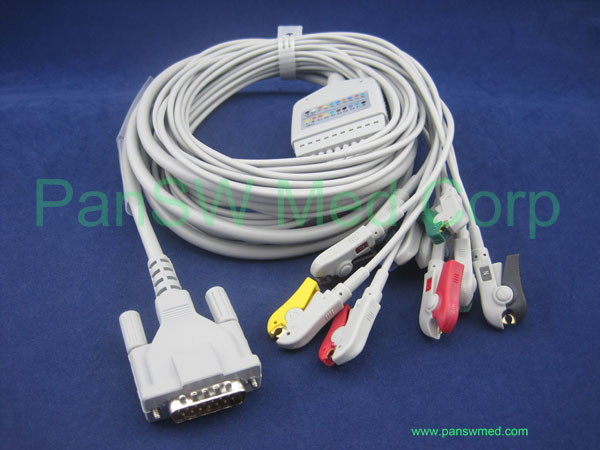

integrated; IEC,DB15M-Clip end

EKG-10001F



integrated; AHA,DB15M-Clip end

EKG-10001G

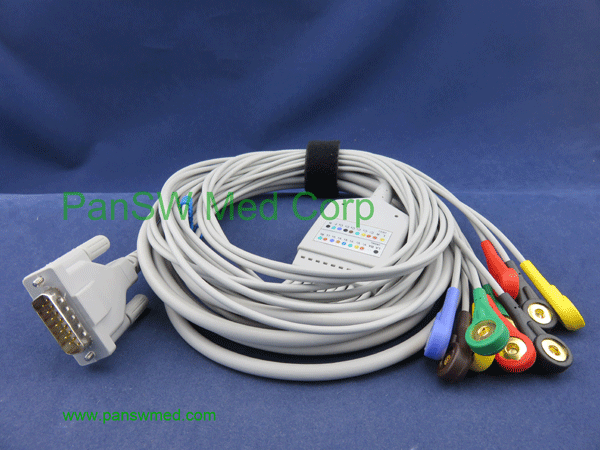

integrated; IEC,DB15M-snap end

EKG-10001H



integrated; AHA,DB15M-snap end

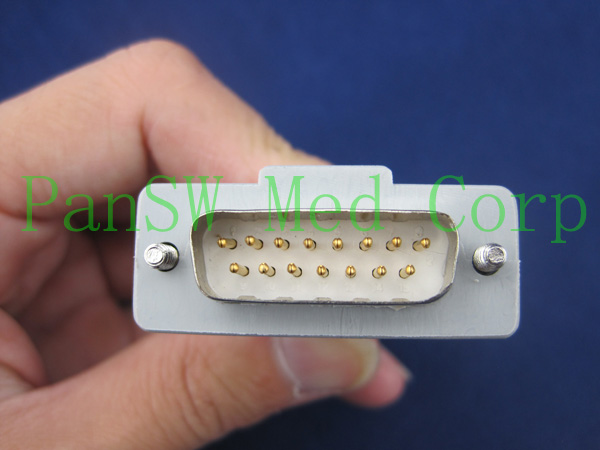

connector view;

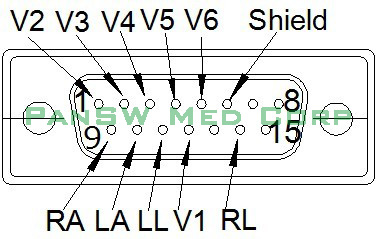

cable diagram
Cable diagram for IEC color;

Cable diagram for AHA color coding
Cable diagram for AHA color

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.


integrated cable, strong in design, well shielded,

For description please refer to above

for more detailed pictures please click here.


Related products:
Suction ball ECG electrode Limb clamps ECG electrode

universal flat clip adapter banbana to ecg electrodes

suction balls ecg electrode ecg electrode limb clamp ECG electrodes adapter
Schiller Argus LCM ECG cable Schiller Argus LCM spo2 cable Schiller Argus NIBP connector
schiller argus LCM ECG cable Schiller Argus LCM Nellcor spo2 cable Schiller Argus NIBP connector

Schiller kontron pb-1000 ecg cable

Schiller Innomed SpO2 sensor Schiller Innomed ECG cable
schiller kontron ECG cable 5 leads clip schiller innomed SpO2 sensor schiller innomed Innocare  T ECG cable

Why us?

  • 1, Complete products database (For the models not found here, pls contact Pan-SW for help.)
    2, Reliable quality, best materials;
    3, Cost-effective, fast and reliable transportation
    4, Responsible, fast after sales service.
    5, Competitive price.
    6, Experienced in OEM/ODM, with retail & wholesale acceptable.

  • More about PanSW service

  • Declaration: All the trademarks mentioned in this website are for citation purpose only. PanSW does NOT sell any original accessories from any other brand except for PanSW. PanSW manufactures and sells generic products compatible with other brands only.
