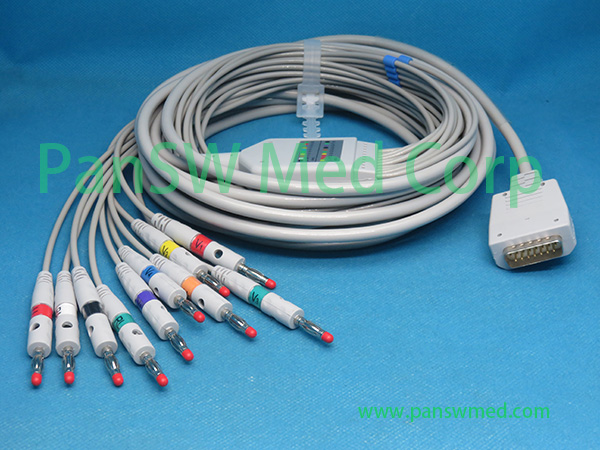

Description: D-sub 15 pins connector with gold plated pins; no screw; main cable diamater: 6.0 mm; leadwire cable diameter: 3.0mm; TPU jacket cable with fully shielded structure to optimize signal transfer; banana connector/clip connector/snap connector/DIN connector are available;
Compatibility : ShaiHai Kohden : ECG-6511, ECG-6151, 8110P/K, 6353

Part No	OEM No	Description
EKG-10006A		integrated; IEC, DB15M-Din3.0
EKG-10007B		integrated; AHA, DB15M-Din3.0
EKG-10007C		integrated; IEC, DB15M-Banana4.0
EKG-10007D		integrated; AHA, DB15M-Banana4.0
EKG-10007E		integrated; IEC, DB15M-clip
EKG-10007F		integrated; AHA, DB15M-clip
EKG-10007G		integrated; IEC, DB15M-snap
EKG-10007H		integrated; AHA, DB15M-snap

connector front view;

Cable diagram for IEC color;

for description please refer to above

for more detailed pictures please click here

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
