Description:

Cable material: medical TPU jacket wires; anti-noise design; double shielding; main cable: 2.5 meters long; leadwire length: 0.9 meters for chest leads; 1.3 meters for limb leads; lead wire OD: 3.0mm; more details of ECG cable structure here:

Electrode terminal: clips. Other connectors for electrodes also available, please check the list below;

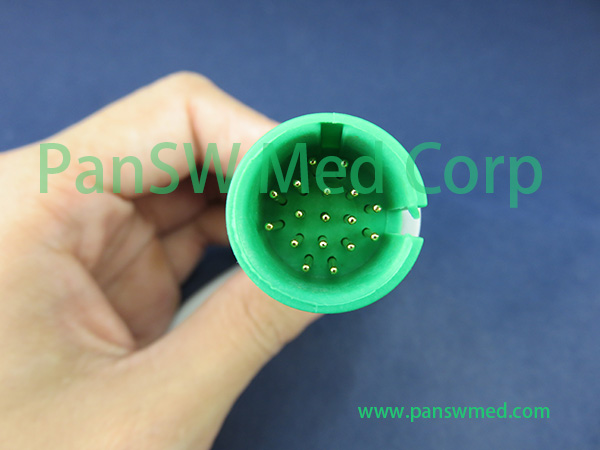

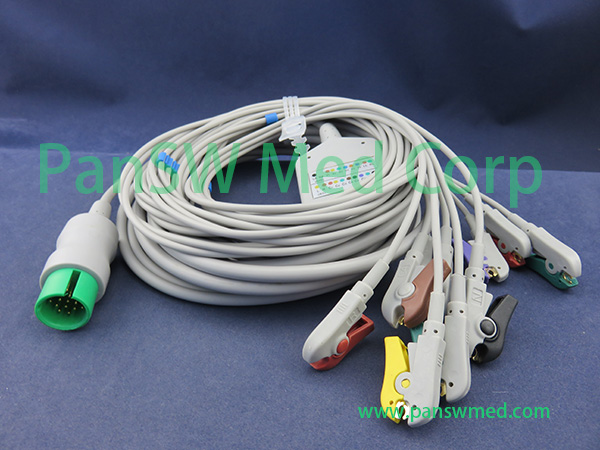

Compatible with: Spacelabs medical, 10 leadwires

Please refer to the list below for all the types cables; for more information please feel free to contact Pansw.

Spacelabs  EKG cable
Part No	OEM No	Description
EKG-10037A		integrated; IEC, DB15M-Din3.0
EKG-10037B		integrated;  AHA, DB15M-Din3.0
EKG-10037C		integrated; IEC, DB15M-Banana4.0
EKG-10037D		integrated; AHA, DB15M-Banana4.0
EKG-10037E		integrated; IEC, 10 leads clip end
EKG-10037F		integrated; AHA, DB15M-clip
EKG-10037G		integrated; IEC, DB15, snap
EKG-10037H		integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
