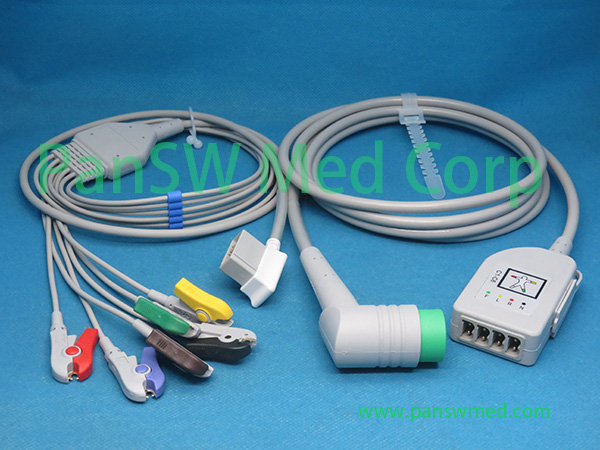

Product >>ECG/EKG cables>>compatible Medtronic integrated 10 lead ECG trunk cable with leadwire

Compatible with: Medtronic Physio Control: Lifepak 12
Description: clips end/banana end/snaps end available
Cable length: 2.5 meters main cable and 0.8 meters (chest electrodes); 1.2 meters leadwires (limb electrodes)
Medical TPU jacket wires with dual shielding structure to carefully protect signal;
more details for cable structure here:

All the products types are listed below:

Part No	OEM No	Description
EKG-10022A		integrated; IEC, DB15M-Din3.0
EKG-10022B		integrated; AHA,DB15M-Din3.0
EKG-10022C		integrated; IEC,DB15M-Banana4.0
EKG-10022D		integrated; AHA,DB15M-Banana4.0
EKG-10022E		integrated; IEC, DB15M-clip
EKG-10022F		integrated; AHA, DB15M-clip
EKG-10022G		integrated; IEC, DB15M-snap
EKG-10022H		integrated; AHA, DB15M-snap

Medtronic EKG cable
Part No	OEM No	Description

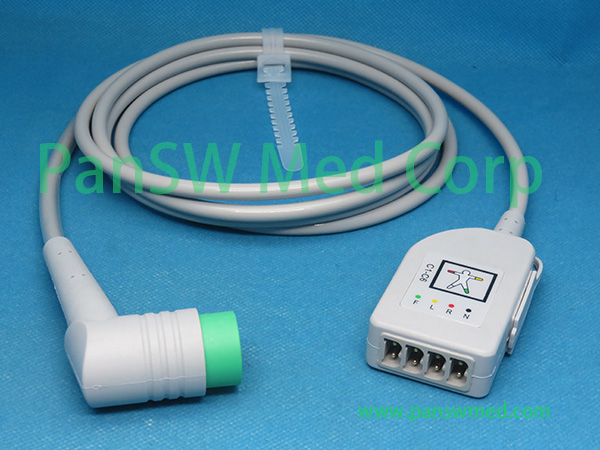

EKG-10049		EKG trunk cable for medtronic;  it works for both IEC & AHA color;  cable length 2.2 meters

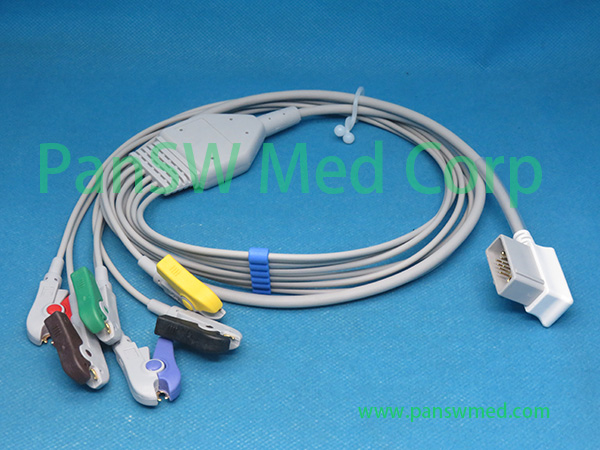

6 lead set

Part No	OEM No	Description
EKG-10050A		IEC, -Din3.0
EKG-10050B		AHA, Din3.0
EKG-10050C		IEC, -Banana4.0
EKG-10050D		AHA, -Banana4.0
EKG-10050E		IEC,  clip end
EKG-10050F		AHA, -clip
EKG-10050G		IEC,  snap
EKG-10050H		AHA, -snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

---
