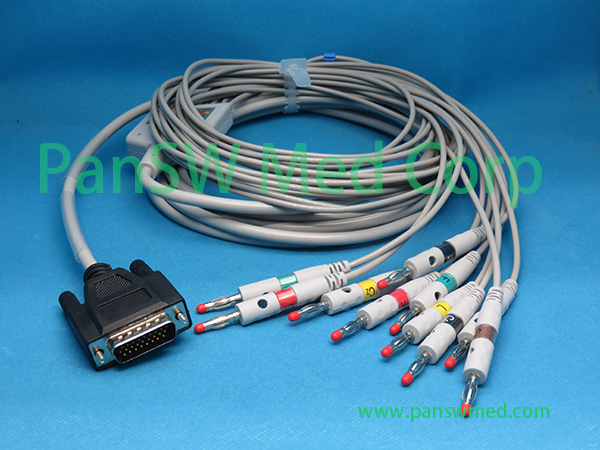

Description: D-sub 26 pins connector with gold plated pins; with screw; main cable diamater: 6.0 mm; leadwire cable diameter: 3.0mm; TPU jacket cable with fully shielded structure to optimize signal transfer; banana connector/clip connector/snap connector/DIN connector are available;
Compatibility : compatible Zoncare ECG cable



Part No	OEM No	Description
EKG-10061A		integrated; IEC, DB15M-Din3.0
EKG-10061B		integrated;  AHA, DB15M-Din3.0
EKG-10061C	ECG-FD12	integrated; IEC, DB15M-Banana4.0
EKG-10061D		integrated; AHA, DB15M-Banana4.0
EKG-10061E		integrated; IEC, 10 leads clip end
EKG-10061F		integrated; AHA, DB15M-clip
EKG-10061G		integrated; IEC, DB15, snap
EKG-10061H		integrated; AHA, DB15M-snap



Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

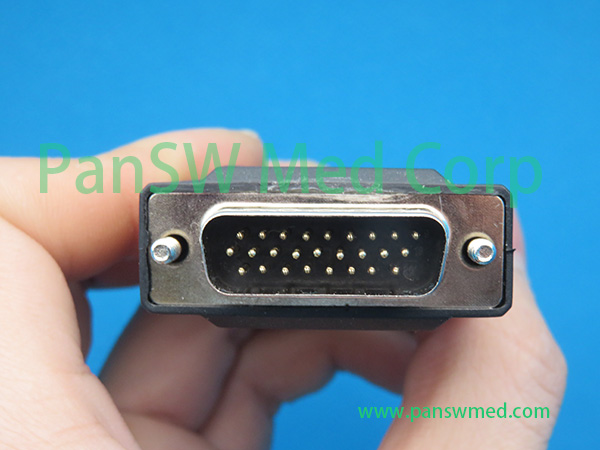

connector front view;
