Picture 1: complete picture

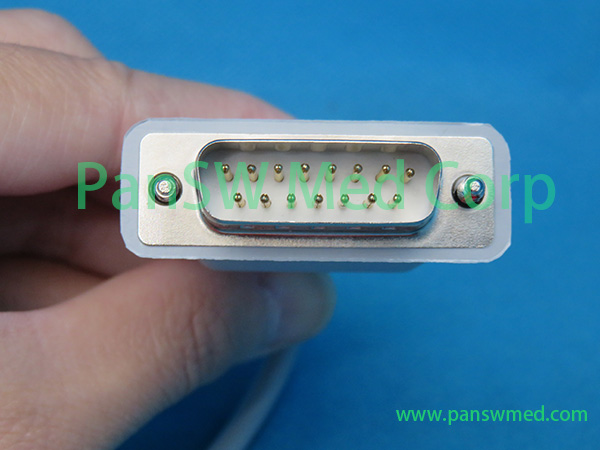

Description: Connector:DB 15pin male 4.0mm clip on electrode end
material: TPU jacket wires; completely shielded structure; more details for cable structure here:
Compatible with: ecafix funbec 12s
| Part No | OEM No | Description |
| EKG-10027A | integrated; IEC, DB15M-Din3.0 | |
| EKG-10027B | integrated; AHA, DB15M-Din3.0 | |
| EKG-10027C | integrated; IEC,DB15M-Banana4.0 | |
| EKG-10027D | integrated; AHA,DB15M-Banana4.0 | |
| EKG-10027E | integrated; IEC,DB15M-Clip end | |
| EKG-10027F | integrated; AHA,DB15M-Clip end | |
| EKG-10027G | integrated; IEC,DB15M-snap end | |
| EKG-10025H | integrated; AHA,DB15M-snap end |
Core technology:
1, All the leads we have longer length to coordinate with bigger size patients without difficulty.
2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment
3, the wires we use bigger size, very durable; surface is convenient for cleaning
4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.
compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
multi use adapter to use with disposible electrodes...
