Dräger Siemens SpO2, ECG, NIBP, Temperature Probe and IBP Accessories Compatibility Chart

This guide helps identify compatible Dräger Siemens patient monitor accessories, including SpO2 sensors and cables, ECG cables, MultiMed pods, NIBP hoses, NIBP cuffs, NIBP connectors, temperature probes, IBP cables and fetal transducer belts. Please confirm the monitor model, module type, connector, SpO2 technology and lead count before ordering.

Dräger Siemens SpO2 Sensors and SpO2 Cables

Dräger Nellcor Module SpO2 Sensor

Compatible SpO2 sensor for Dräger Nellcor module, including Infinity XL and related monitor configurations.

Compatible Dräger 6002XL adult clip SpO2 sensor - PanSW Medical

Compatible Dräger 6002XL adult soft SpO2 sensor - PanSW Medical

Dräger SpO2 sensor connector reference - PanSW Medical

PanSW reference: RSP-10057B

Dräger SpO2 Cable 3368433 / 3375834

Compatible SpO2 extension cable for Dräger MultiMed systems, reference part numbers 3368433 and 3375834.

Compatible Dräger 3368433 3375834 SpO2 cable - PanSW Medical

PanSW reference: ADP10024B

Dräger Nellcor OxiMax and Masimo SpO2 Cables

Compatible Dräger Nellcor OxiMax cable MS18683 / MS17330 and Dräger Masimo cable MS18680 / MS17041 / MS24303 / MS17522.

Siemens Dräger Nellcor OxiMax SpO2 cable MS18683 MS17330 - PanSW Medical

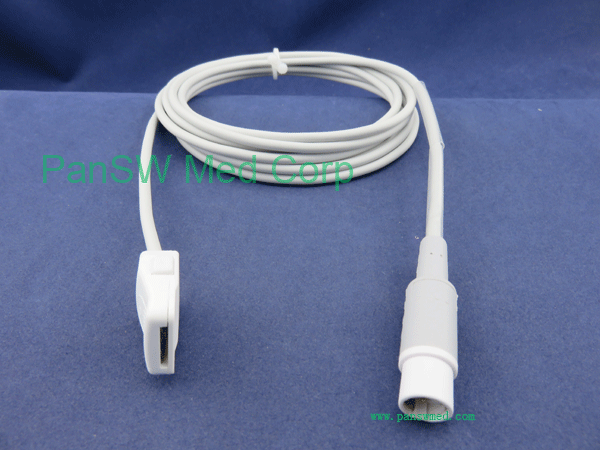

Siemens Dräger Masimo SpO2 cable MS17041 reference - PanSW Medical

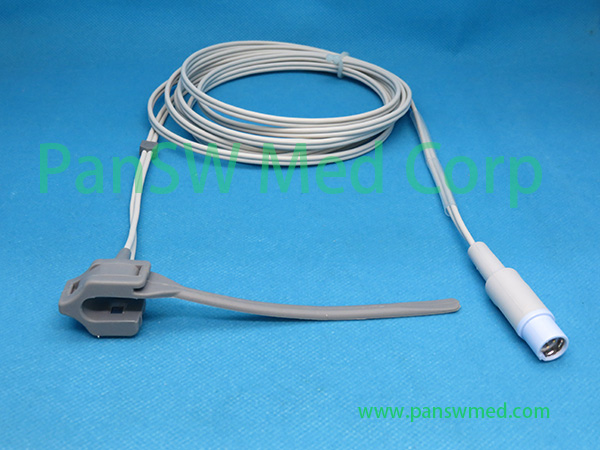

Compatible Dräger Masimo neonatal SpO2 sensor MS20093 - PanSW Medical

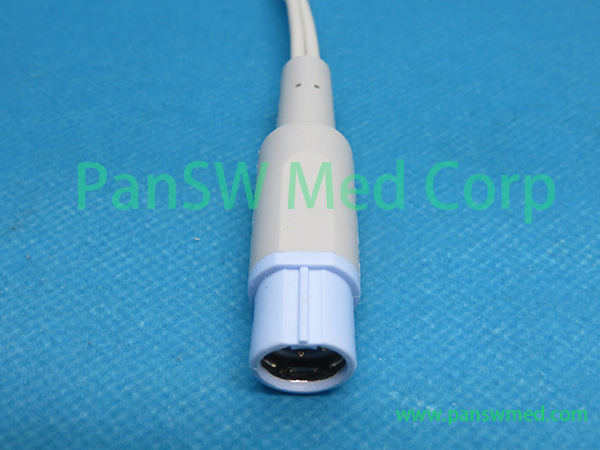

Dräger Masimo MS17522 SpO2 sensor connector - PanSW Medical

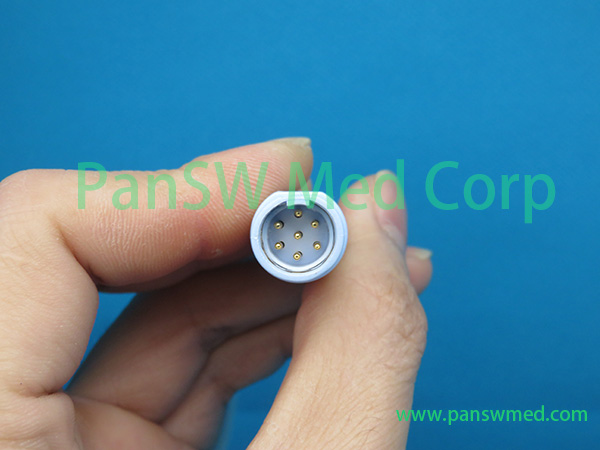

Compatible Dräger SpO2 sensor connector type 2 - PanSW Medical

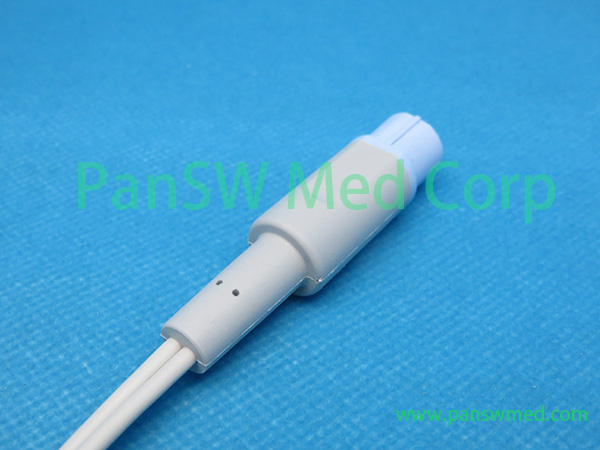

Compatible Dräger SpO2 sensor connector type 3 - PanSW Medical

PanSW references: ADP10024E / ADP10024F

Dräger PM8040 SpO2 Cable

Compatible SpO2 extension cable for Dräger PM8040.

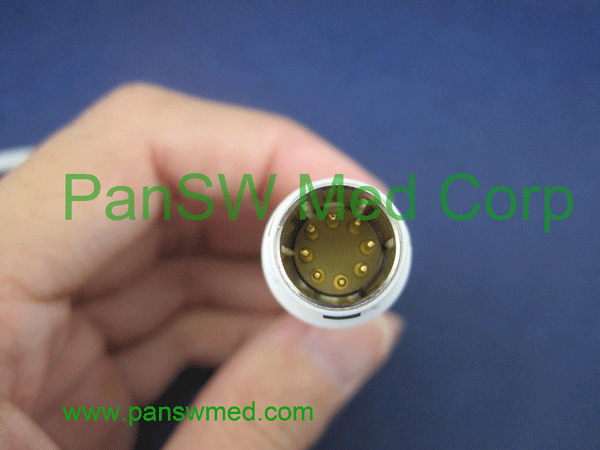

Dräger 5720084 SpO2 cable connector - PanSW Medical

Dräger 5720084 SpO2 extension cable - PanSW Medical

PanSW reference: ADP-10024D

Dräger Vista 120 SpO2 Cable and Sensor

Compatible SpO2 cable and sensor options for Dräger Vista 120. Please confirm whether the monitor uses Nellcor, Masimo or another SpO2 module.

Compatible Dräger Vista 120 SpO2 cable reference - PanSW Medical

Compatible Dräger Vista 120 adult clip SpO2 sensor reference - PanSW Medical

Compatible Nellcor DS-100 SpO2 sensor reference for Dräger Vista 120 - PanSW Medical

Dräger Siemens ECG Cables, ECG Leads and MultiMed Pods

Dräger MultiMed 5 Pod

Compatible Dräger / Siemens MultiMed 5 pod and related ECG/SpO2/temperature trunk connection.

Compatible Siemens Dräger MultiMed pod XDX-10028C - PanSW Medical

Compatible Siemens Dräger MultiMed pod 3368391 - PanSW Medical

Dräger MultiMed plus pod trunk ECG SpO2 temperature reference - PanSW Medical

PanSW reference: XDX-10028C

Dräger PM8060 3-Lead ECG Cable

Compatible Dräger PM8060 ECG cable, 3-lead configuration.

Compatible Dräger PM8060 three-lead ECG cable IEC color - PanSW Medical

PanSW reference: XDX-10027A

Dräger PM8060 / PM8010 5-Lead ECG Trunk and Leads

Compatible Dräger ECG trunk cable and leadwires, available in 5-lead IEC/AHA color and clip/snap/grabber patient-end options.

Compatible Dräger M35364 PM8060 ECG trunk cable - PanSW Medical

Compatible Dräger PM8060 ECG trunk connector - PanSW Medical

Compatible Dräger PM8060 ECG trunk and leads connection - PanSW Medical

Compatible Dräger PM8060 ECG trunk and leads - PanSW Medical

Compatible Dräger PM8060 ECG trunk connector detail - PanSW Medical

Compatible Dräger PM8060 ECG leadwire connector - PanSW Medical

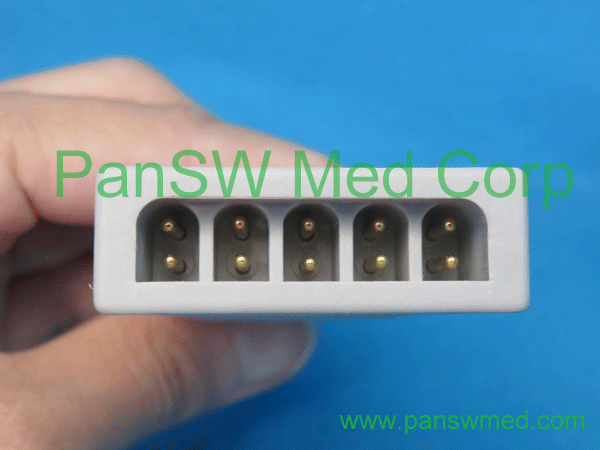

Compatible Dräger ECG trunk leads 5-lead connector - PanSW Medical

Compatible Dräger PM8060 ECG trunk leads IEC grabber - PanSW Medical

Compatible Dräger ECG trunk leads 5-lead AHA clip - PanSW Medical

Compatible Dräger ECG trunk leads 5-lead AHA snap - PanSW Medical

PanSW reference: XDX-10027D

Siemens Dräger ECG Leads

Compatible Siemens Dräger ECG leadwires, including IEC/AHA color code and clip/snap options.

Compatible Siemens Dräger ECG leads IEC color snap connector - PanSW Medical

Compatible Siemens Dräger 5956441 ECG leads AHA snap - PanSW Medical

Compatible Siemens Dräger 5956441 ECG leadwire connector - PanSW Medical

Siemens Dräger 3-lead ECG IEC clip - PanSW Medical

Siemens Dräger 3-lead ECG original part 5956433 - PanSW Medical

Dräger PM8060 Integrated ECG Cables

Compatible integrated ECG cable options for Dräger PM8060, including 3-lead and 5-lead versions.

Dräger PM8060 integrated 3-lead ECG cable - PanSW Medical

Dräger PM8060 integrated 5-lead ECG cable - PanSW Medical

Dräger MultiMed Plus Trunk Cable and Neo MultiMed Pod

Compatible Siemens Dräger MultiMed Plus trunk cable. Neo MultiMed pod options are also available.

Siemens Dräger MultiMed Plus trunk cable - PanSW Medical

Compatible Dräger MS20093 MultiMed Plus pod trunk ECG SpO2 temperature - PanSW Medical

Compatible Dräger MultiMed Plus pod ECG SpO2 temperature - PanSW Medical

Compatible Dräger neonatal pod - PanSW Medical

PanSW reference: XDX-10029A

Dräger NeoMed ECG Leads / 5592162 ECG Adapter Cable

Compatible Dräger ECG leads and 5592162 ECG trunk cable for NeoMed pod.

Compatible Dräger MS16159 ECG leads snap - PanSW Medical

Compatible Dräger 5592162 ECG cable - PanSW Medical

Compatible Dräger 5592162 ECG cable connector - PanSW Medical

Compatible Dräger 5592162 ECG adapter cable for NeoMed pod - PanSW Medical

PanSW reference: XDX-10030

Dräger Vista 120 ECG Cable

Compatible ECG cable for Dräger Vista 120. Please confirm connector and leadwire type before ordering.

Compatible Dräger Vista 120 ECG cable connector reference - PanSW Medical

Siemens SC2000 / ACUSON NX2 Elite ECG Cable

Compatible ECG cable for Siemens SC2000 ultrasound accessories and ACUSON NX2 Elite. Also referenced with Accuscreen ABR electrode cable code 8-71-88400.

Compatible Siemens SC2000 ECG cable snap AHA - PanSW Medical

PanSW reference: ECG-10090

Neonatal Pre-Wired ECG Electrodes

Compatible disposable pre-wired ECG electrodes with leads for neonatal single-patient use. Original part reference: 5195024.

Disposable pre-wired ECG electrodes IEC for neonatal use - PanSW Medical

Dräger Siemens NIBP Interconnect Hoses

Dräger Siemens NIBP Hose

Compatible NIBP hose for Siemens Dräger patient monitors. Please confirm adult/pediatric or neonatal application and connector type.

Compatible Siemens Dräger NIBP hose - PanSW Medical

Compatible Dräger MP00953 NIBP hose - PanSW Medical

PanSW reference: See list

Dräger Siemens NIBP Cuffs

Reusable NIBP Cuffs

Compatible reusable NIBP cuffs for Dräger Siemens monitors. Multiple sizes are available.

Compatible reusable NIBP cuff for Dräger Siemens monitors - PanSW Medical

PanSW reference: See list

Disposable NIBP Cuffs

Compatible disposable NIBP cuffs for Dräger Siemens monitors. Adult, pediatric, infant and neonatal sizes may be available.

Compatible disposable child NIBP cuff for Dräger Siemens monitors - PanSW Medical

PanSW reference: See list

Dräger Siemens NIBP Connectors

CNT-24 NIBP Connector

Compatible NIBP connector option for Dräger Siemens monitor accessories.

PanSW reference: CNT-24

CNT-07M NIBP Connector

Compatible fast NIBP connector option for Dräger Siemens monitor accessories.

PanSW reference: CNT-07M

Dräger Siemens Temperature Probes

Dräger Siemens Temperature Probe and Adapter

Compatible temperature probe and adapter for Siemens Dräger patient monitors.

Compatible Dräger temperature probe connector 5204644 - PanSW Medical

Compatible Dräger temperature probe adapter - PanSW Medical

PanSW reference: PTP-10007A

Dräger Siemens IBP Cables

Compatible Dräger IBP Cable

Compatible Dräger IBP cable. Please confirm the pressure transducer brand and connector before ordering.

Compatible Dräger IBP cable connector - PanSW Medical

PanSW reference: IBP10002C

Fetal Transducer Belt

Fetal Transducer Belt / CTG Belt

Fetal transducer belt / cardiotocography belt, approximately 130 cm long.

PanSW reference: FMT-3

Ordering note: Dräger Siemens accessories may use different SpO2 technologies such as Nellcor OxiMax or Masimo, and ECG cables may differ by pod type, lead count, AHA/IEC color code and patient-end style. To avoid mistakes, please confirm the monitor model, module type, connector photo, SpO2 technology, ECG lead count, NIBP connector and IBP transducer brand before ordering.

18h*6d technical support and product consultation. Please contact PanSW for the specific cable you need and avoid mistakes and unnecessary cost.

Please feel free to contact PanSW if there is any doubt or further questions.
