Compatible Spacelabs SpO2, ECG and NIBP Accessories Compatibility Chart

This guide summarizes compatible accessories for Spacelabs patient monitors, including SpO2 sensors, SpO2 cables, ECG cables, NIBP hoses, NIBP cuffs, NIBP connectors, temperature probes, and display screen parts.

Spacelabs compatibility may depend on the monitor model, module type, connector key position, and cable generation. Please confirm connector photos before ordering when the interface is uncertain.

1. Spacelabs SpO2 Sensors and SpO2 Cables

Spacelabs model / module Connector picture and description PANSW part and reference link
Spacelabs short-line SpO2 sensor Compatible Nellcor DS-100A non-Oximax SpO2 sensor for Spacelabs short-line use RSP-10041A
Nellcor technology, non-Oximax
Spacelabs SpO2 sensor / 90496 / 91496-U

Spacelabs SpO2 sensor and connector reference

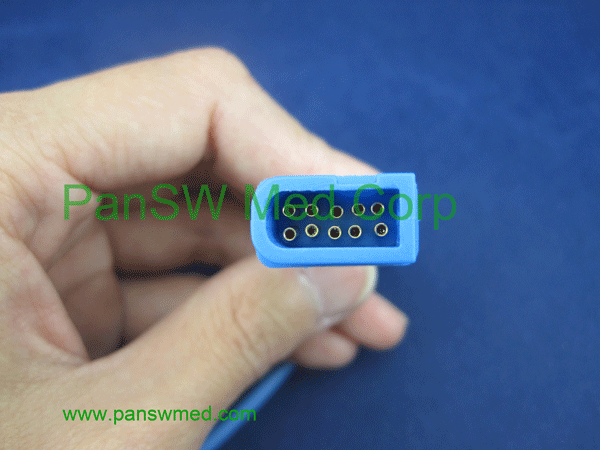

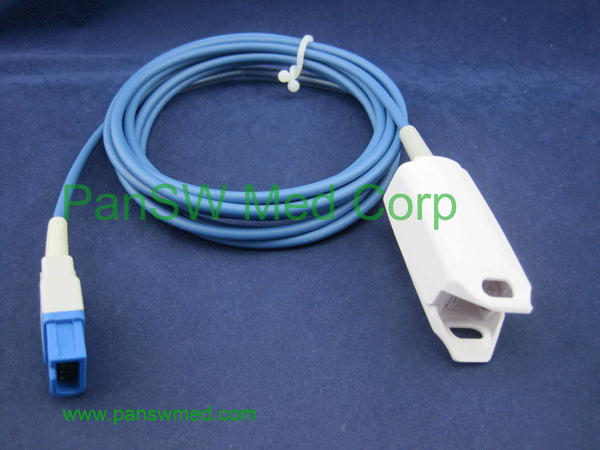

Spacelabs SpO2 sensor Compatible Spacelabs adult soft SpO2 sensor Spacelabs SpO2 sensor connector 		90496; 91496-U

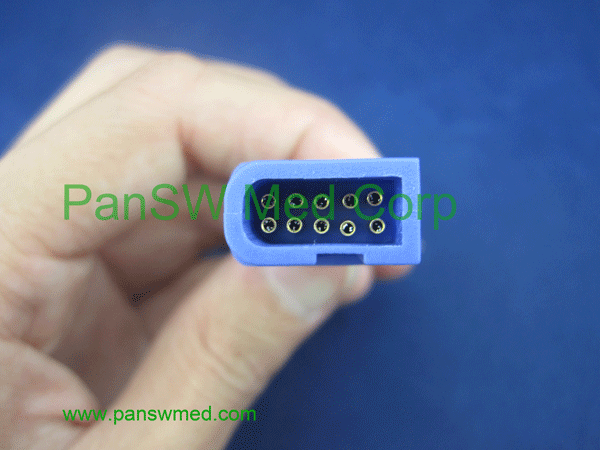

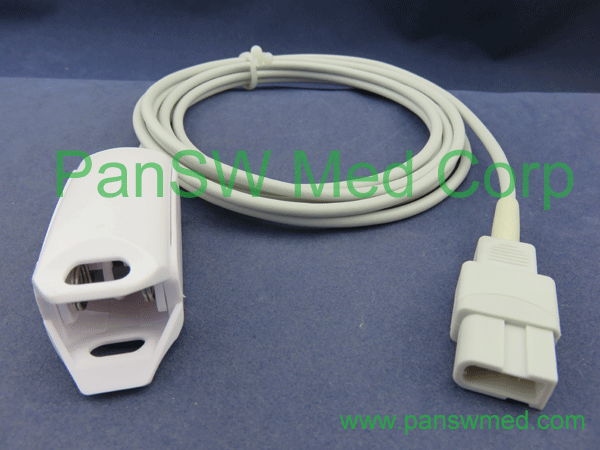

Spacelabs mCare 300 / Nellcor Oximax / Masimo module SpO2 sensor Spacelabs Oximax SpO2 sensor connector Spacelabs mCare 300 SpO2 sensor Compatible Spacelabs Masimo module SpO2 sensor connector with different key position Compatible Spacelabs Masimo module SpO2 sensor. Please note that the key position is different from other connectors. mCare 300; Nellcor Oximax module SpO2 sensor / cable
Old Spacelabs SpO2 sensor type Old Spacelabs SpO2 connector This old Spacelabs SpO2 sensor type is now rarely seen on the market. Old type Spacelabs SpO2 sensor Confirm by connector photo
Newer Spacelabs OEM-style SpO2 sensor Newer OEM-style Spacelabs SpO2 sensor, adult clip type Newly released Spacelabs SpO2 sensor style. PANSW can supply this SpO2 sensor. Contact PANSW to confirm availability

2. Spacelabs ECG Cables

Spacelabs model Connector picture and description PANSW part and reference link
Spacelabs 6-pin ECG cable Compatible 6-pin ECG lead trunk connector for Spacelabs and old patient monitors Compatible 6-pin ECG cable AHA snap for old patient monitors Compatible 012-0108-01, 012-0201-00 AAMI/AHA color coding; 012-0346-00 IEC color coding. This traditional 6-pin ECG cable was used on many older machines, including GE, Mindray, Biolight, Edan, and Spacelabs. Use with 90470

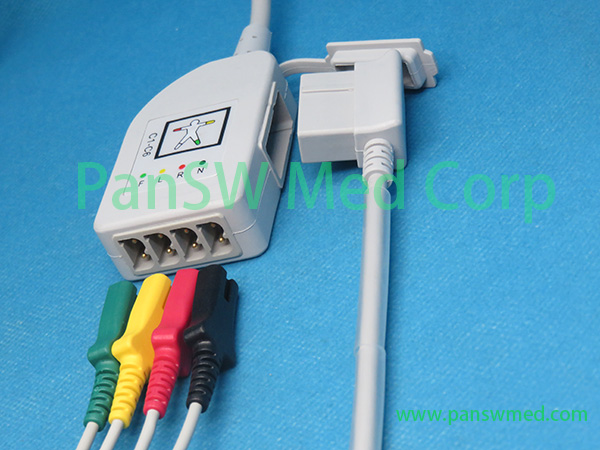

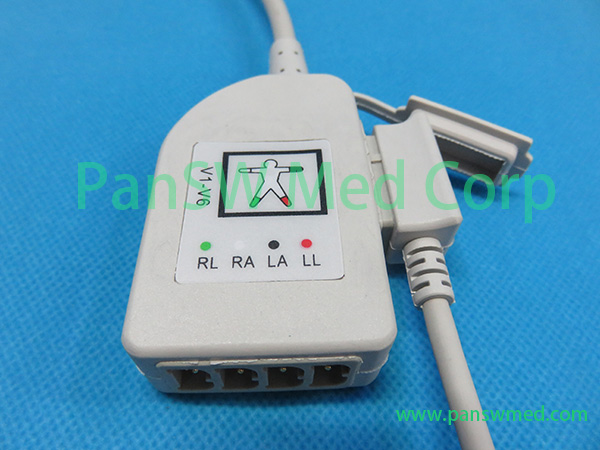

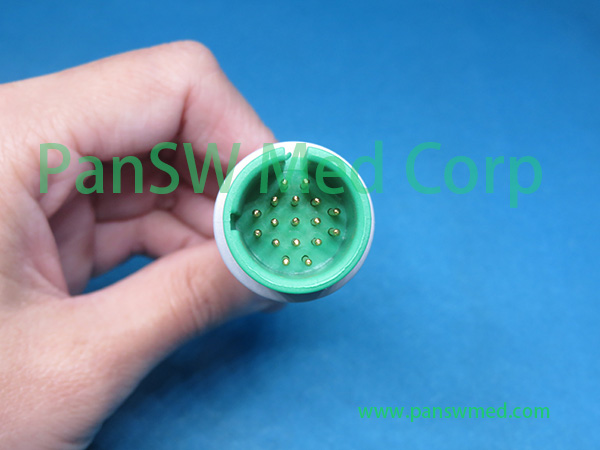

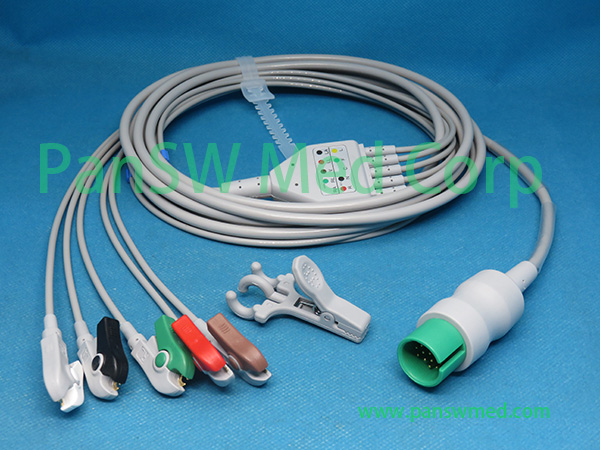

Spacelabs 17-pin ECG cable Compatible Spacelabs 700-0008-22 ECG cable 5-lead AHA clip Compatible Spacelabs 700-0008-25 ECG cable connector 17-pin ECG cable, classic for Spacelabs. Available as ten-lead integrated or detachable cable. Compatible ten-lead ECG trunk cable for Spacelabs 17-pin system Compatible ten-lead ECG trunk leads for Spacelabs 17-pin system Spacelabs Medical Instrument: 90496 Ultraview, 90369 Ultraview, 90367 Ultraview; 91220 mCare 300
Spacelabs ECG leadwire Compatible Spacelabs ECG leads IEC color clip ETC-10025I

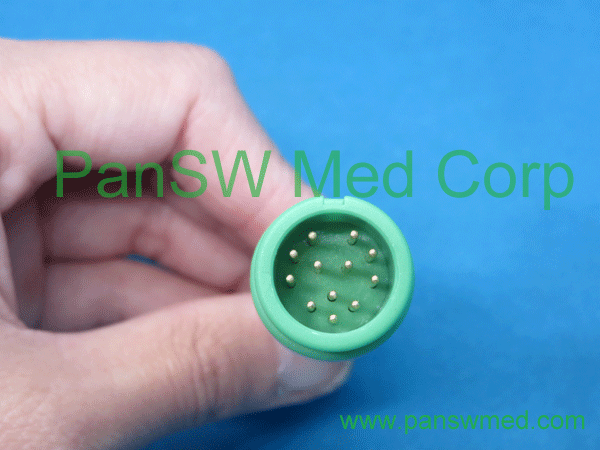

Newer Spacelabs OEM-style ECG cable Newer OEM-style Spacelabs ECG cable AHA snap 3-lead type Newly released Spacelabs ECG cable style. PANSW can supply this cable. Please contact PANSW if needed. Contact PANSW to confirm availability

3. Spacelabs NIBP Interconnect Hoses

Spacelabs model Connector picture and description PANSW part and reference link
Spacelabs NIBP hose Compatible Spacelabs Biolight Mindray Edan NIBP hose NBT-10001

4. Spacelabs NIBP Cuffs

Spacelabs model Picture and description PANSW part and reference link
All models, disposable NIBP cuff Compatible disposable child size NIBP cuff for Spacelabs monitors All sizes available. See disposable NIBP cuff list
All models, reusable NIBP cuff Compatible reusable adult size NIBP cuff single hose for Spacelabs monitors All sizes available. See reusable NIBP cuff list

5. Spacelabs NIBP Connectors

Connector / part reference Connector picture and description PANSW part and reference link
NIBP connector CNT-24N NIBP connector reference for Spacelabs patient monitor hose CNT-24
NIBP fast connector CNT-07M NIBP connector for Philips Mindray Edan and compatible patient monitors CNT-07M
Spacelabs 714-0045-00, 0.24 inches / 6 mm
Spacelabs 714-0046-00, 0.2 inches / 5 mm		 Female NIBP connector for Spacelabs 714-0045-00 and 714-0046-00 hose sizes CNT-07F

6. Spacelabs Temperature Probes

Spacelabs model Connector picture and description PANSW part and reference link
Spacelabs temperature module Compatible YSI400 temperature probe for Spacelabs monitor module See temperature probe list
Spacelabs integrated temperature probe Spacelabs temperature probe connector Spacelabs integrated YSI400 temperature probe New temperature probe, YSI400 type, integrated probe

7. Spacelabs Display Screen

A102VW01V7 compatible Spacelabs Ultraview medical display screen Compatible Spacelabs Ultraview Display Screen

Contact and confirmation

Please contact PANSW if you are unsure which Spacelabs cable or accessory is required. To avoid mistakes and unnecessary cost, provide the machine model, module type, existing cable part number, and clear connector photos.
