why my Philips SpO2 sensor not working?

many new engineers will ask.

ok. let us check it out.

1, modules

As a time-honored brand, Philips has got different modules for its SpO2 sector.

a) Philips Fast SpO2 technology.

this is the most common Philips SpO2 technology used in many machines, even in the HP machines.

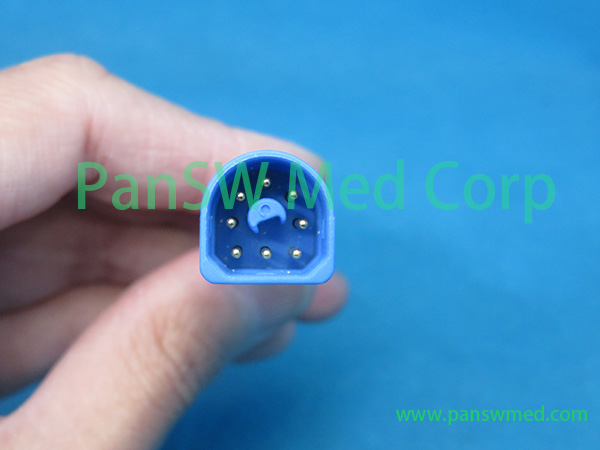

the connector is typical 8 pins

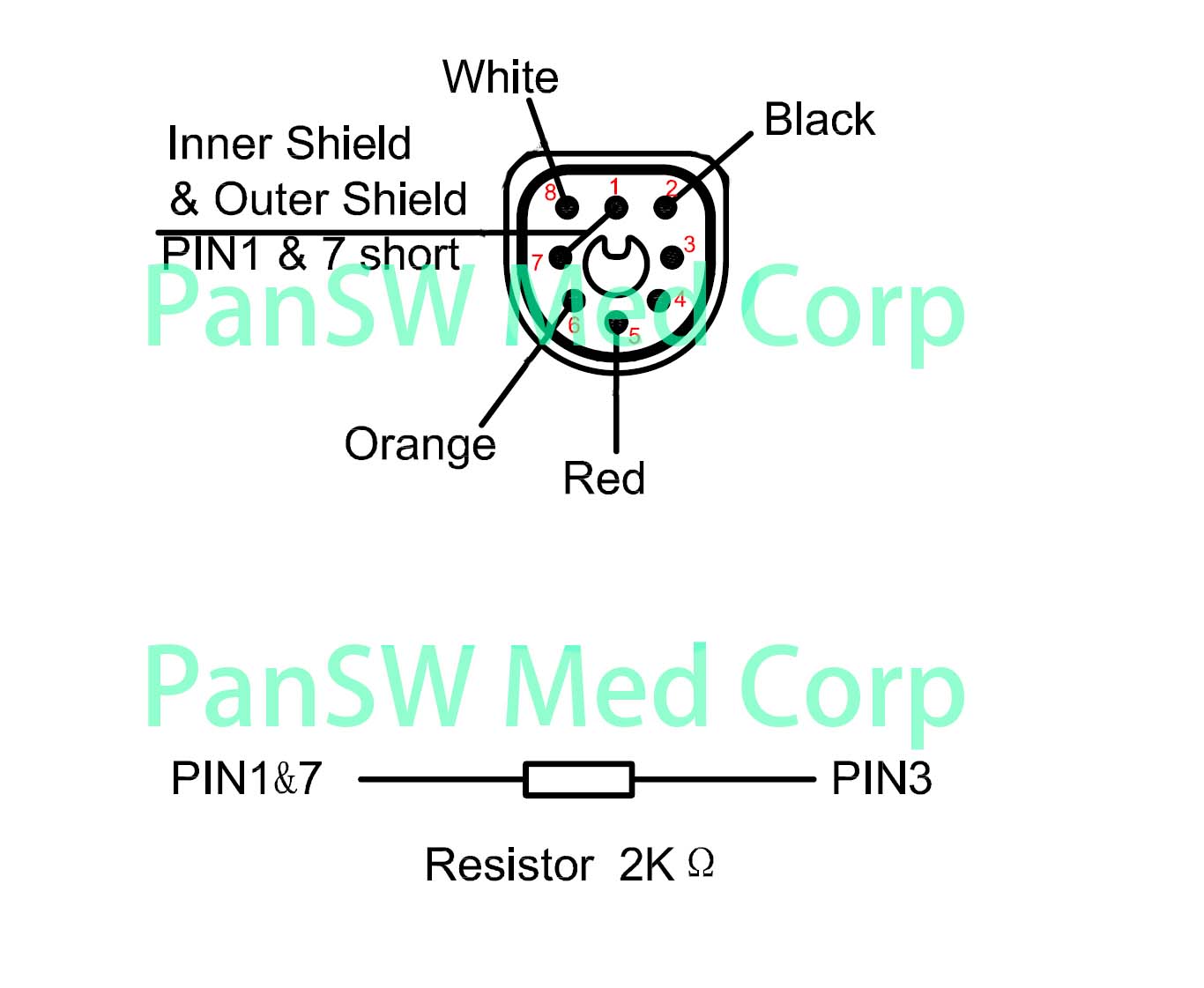

pinout for Philips Fast SPO2 sensor

here is the link for compatible Philips FAST technology sensors

b) Masimo technology

Philips is using Masimo modules for a long time.

older models use a Masimo sensor without SET technology

the connector is simple and a little different than the FAST technology

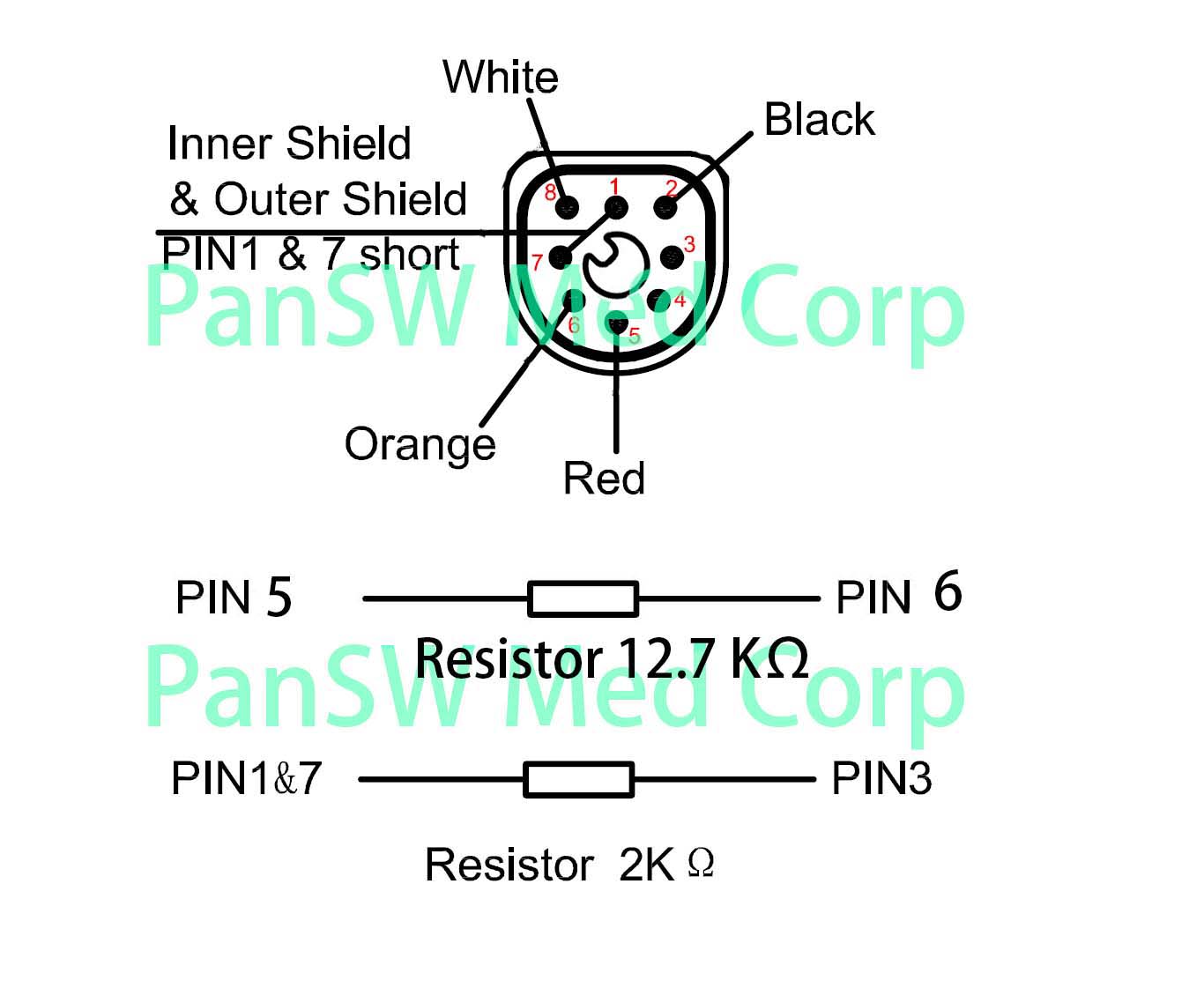

pinout for Philips Masimo SpO2 sensor

here is the link for compatible Philips Masimo technology sensors

later Philips uses Masimo SET technology so the pinout changes a little

also now, Philips has a new connector with Masimo SET module

the new Masimo 25 pins connector

here is the link for compatible Philips Masimo technology sensors

c)

Nellcor Oximax module

some Philips modules is with Oximax sensors

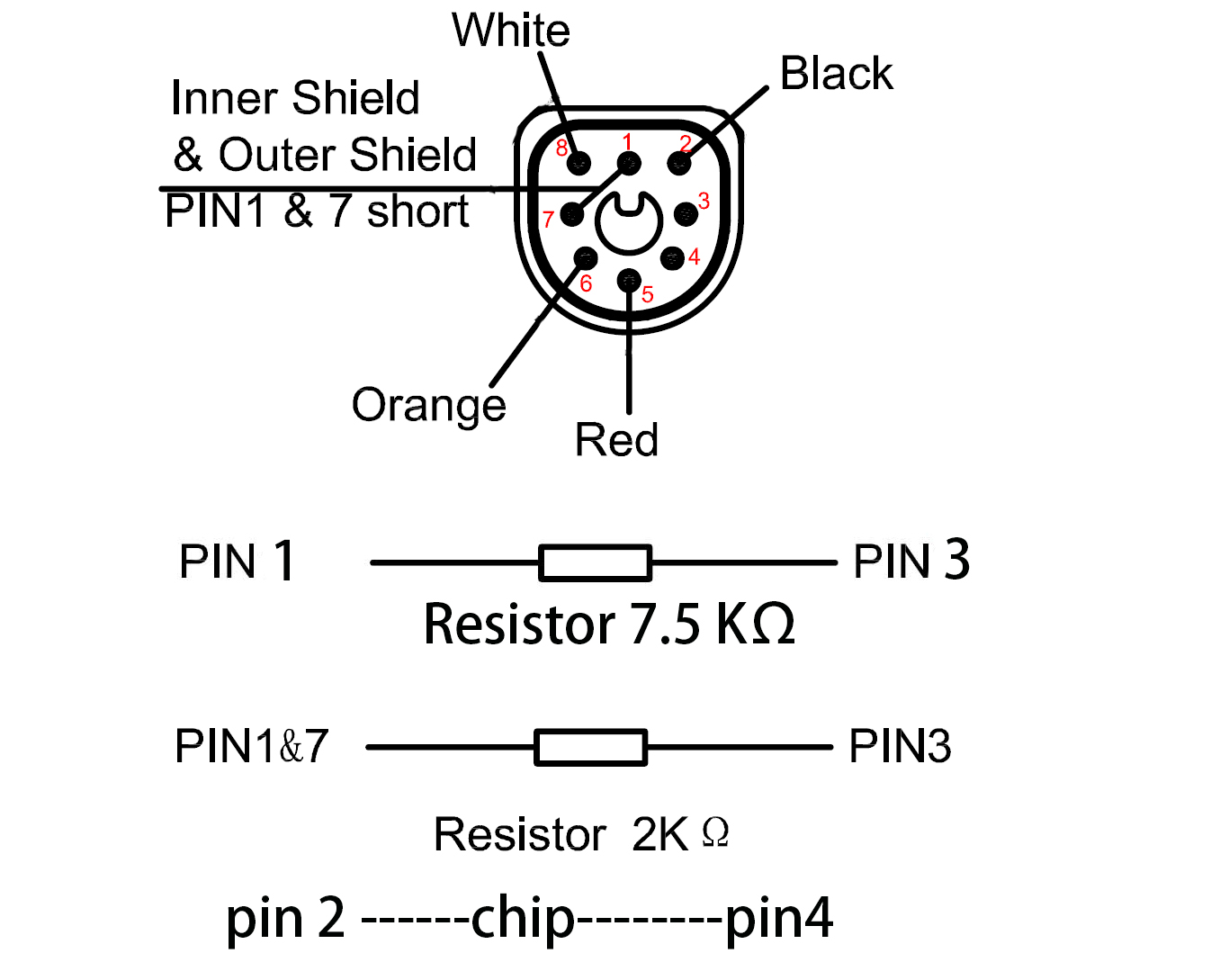

pinout for Philips Nellcor Oximax SpO2 sensor

here is the link for compatible Philips Nellcor technology sensors

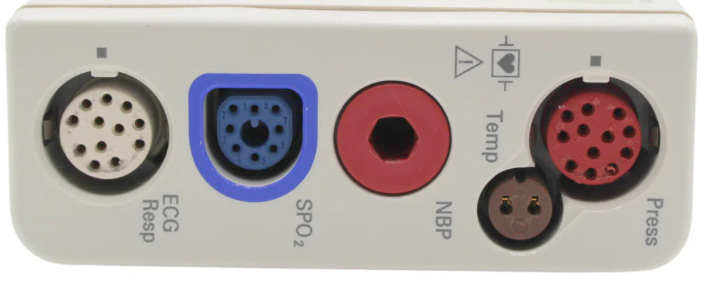

for Nellcor module, the appearance is same, but there is purple circle around the female port part

2, sensor defective

if the light is there, usually the problem from the photodetector, you have to replace the sensor

if you the light is not there, the problem usually in the emitter, you have to replace the sensor

usually the sensor breaks in the wires, sensor tip part of the connector tail part, because long time bending the inner conductor broken.

if you need new, cost effective sensors, please contact PanSW.

we have both original and compatible ones.

:)

Please feel free to contact PanSW if there is any doubt or further questions.

18h*6d technical support, products consultion, please contact PanSW for the specific cable you need and avoid mistake and unnecessary cost.
