Description: Mindray 12 pin connector; three leadwire, terminal: 4.0 snap.
TPU cables; shielded structure;
Compatible with: BeneView T5; BeneView T6; BeneView T8; MPM Module

Also, snaps, clips, 3 leads, 5 leads cables are available, please check the list below for details.

Part No	OEM No	Description
ECG-10010A		3-lead, AHA, Snap
ECG-10010B	040-000967-00	3-lead, IEC, Snap

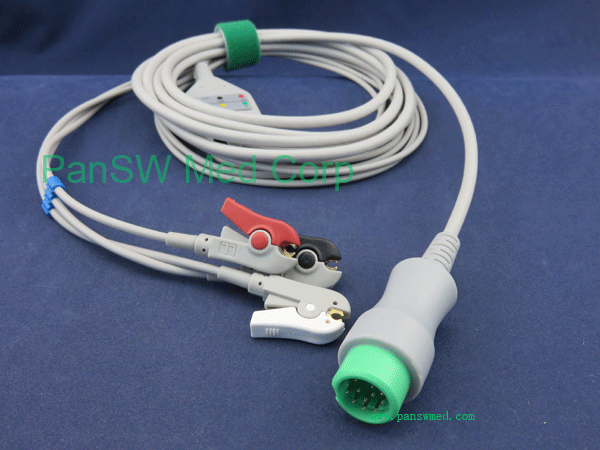

ECG-10010C	040-000964-00	3-lead, AHA, Clip
ECG-10010D	040-000966-00	3-lead, IEC, Clip
ECG-10010E		5-lead, AHA, Snap
ECG-10010F		5-lead, IEC, Snap
ECG-10010G	040-000960-00	5-lead, AHA, Clip

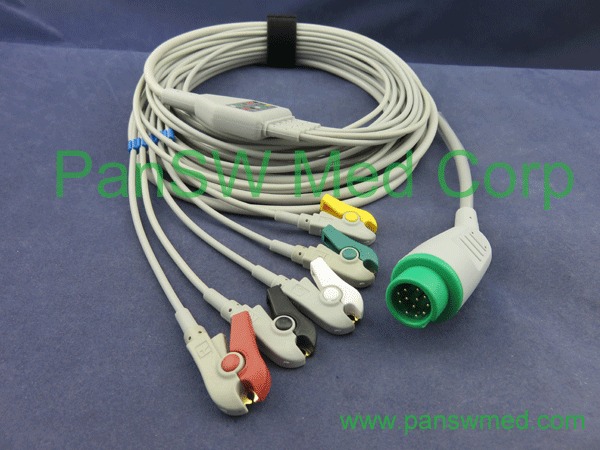

ECG-10010H	040-000962-00	5-lead, IEC, Clip

connector view;



compliance with ANSI/AAMI EC53 EN60601-1 ISO 10993-1 ISO 10993-5 ISO 10993-10

compliance with RoHS
