Description: semicircle 10 pin connector; Yoke: LL three leadwire.

Siemens 10 pins ECG cable to LL leads yoke; cable length: 2.4 meters;
Compatible with: Sirecust Series 400,600,700,900,1200

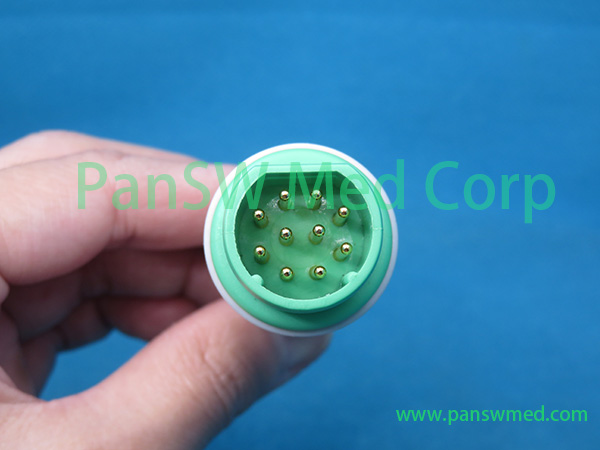

connector view (monitor side);

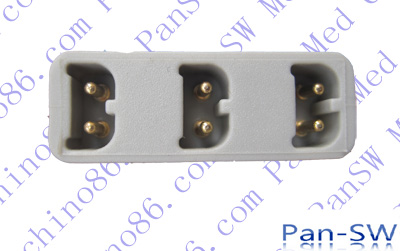

LL style yoke, 3 leads connector view;

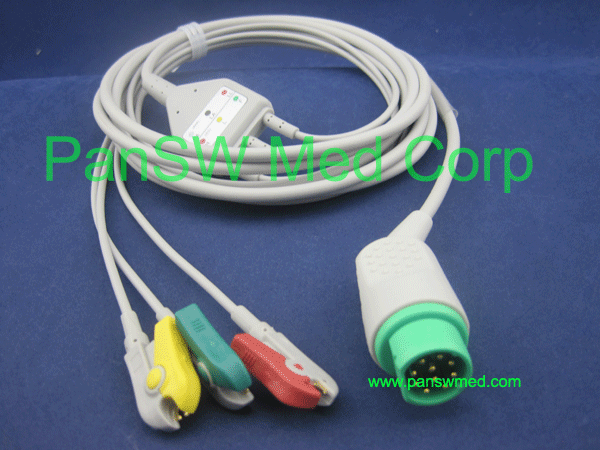

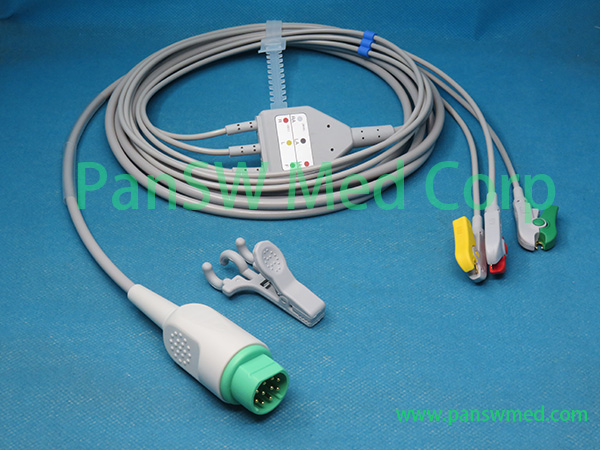

3 leads integrated ECG cable

Part No	OEM No	Description	connector	Compatibility
ECG-10016A		3-lead, AHA, Snap		Siemens Sirecust Series 400, Series 600, 700, 900, 1200, Sirecust 341/610/620/630/720/722/730/732/900/960/961/1260/1281/1801/400/-500 ECG monitor,　Polymed Modul, Modulbox sirem
ECG-10016B		3-lead, IEC, Snap
ECG-10016C		3-lead, AHA, Clip
ECG-10016D		3-lead, IEC, Clip
ECG-10016E		5-lead, AHA, Snap
ECG-10016F		5-lead, IEC, Snap
ECG-10016G		5-lead, AHA, Clip
ECG-10016H		5-lead, IEC Clip



compliance with ANSI/AAMI EC53 EN60601-1 ISO 10993-1 ISO 10993-5 ISO 10993-10

compliance with RoHS
