Product >>ECG/EKG cables>>compatible Nihon Kohden ECG machine patient cable

for description please refer the below

for gallery for more pictures please click here

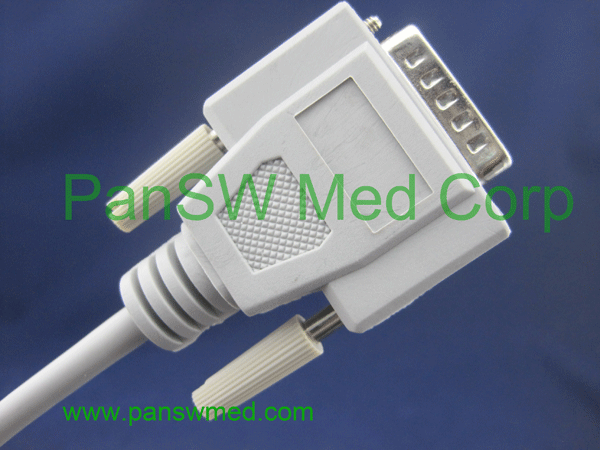

Description: Connetor:DB 15pin male connector, with screw; gold plated pins;

Cable material: medical TPU jacket wires; anti-noise design; double shielding; main cable: 2.5 meters long; leadwire length: 0.8 meters for chest leads; 1.2 meters for limb leads; main cable OD: 6.0mm; lead wire OD: 3.0mm; more details of ECG cable structure here:

Electrode terminal: 3.0 Din type. Other connectors for electrodes also available, please check the list below;

Compatible with: Use with Nihon Kohden ECG-9620, ECG-9010, ECG-9020, ECG-9022, ECG-9110,ECG-9130,ECG-9132, DongJiang ECG-11A,ECG-11B, ECG-11D, ECG-32A, (II), ECG-120

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Please refer to the list below for all the types cables; for more information please feel free to contact Pansw.

Part No	OEM No	Description
EKG-10005A	K079 (BJ-901D)	integrated; IEC, DB15M-Din3.0
EKG-10005B	K019 (BA-901D)	integrated;  AHA, DB15M-Din3.0
EKG-10005C		integrated; IEC, DB15M-Banana4.0
EKG-10005D	K081 (BJ-902D)	integrated; AHA, DB15M-Banana4.0
EKG-10005E		integrated; IEC, 10 leads clip end

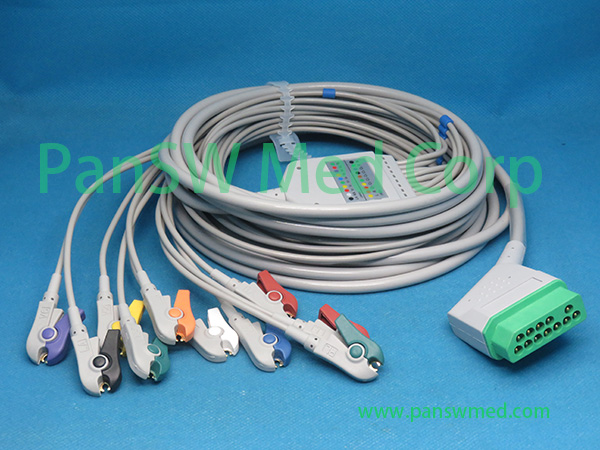

EKG-10005F		integrated; AHA, DB15M-clip
EKG-10005G		integrated; IEC, DB15, snap

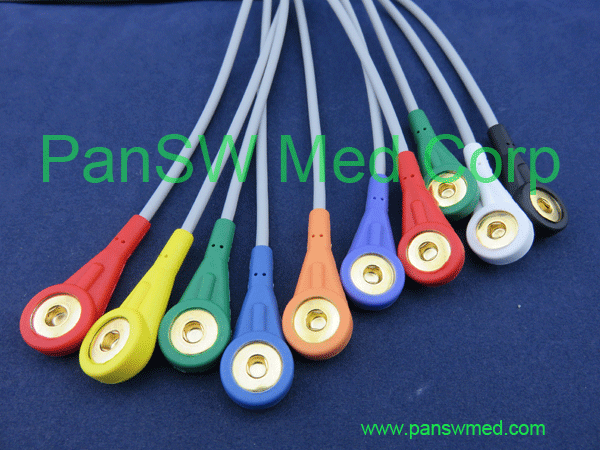

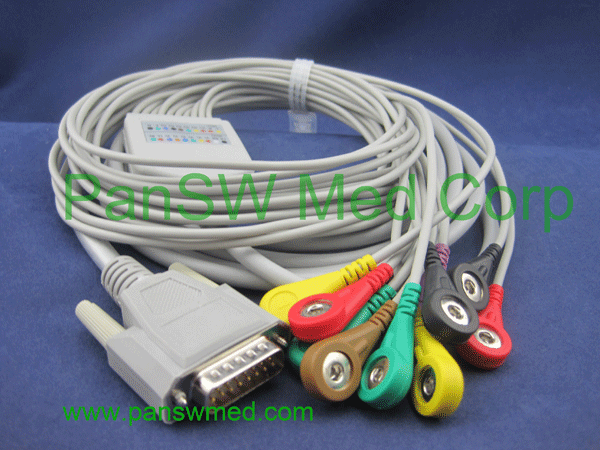

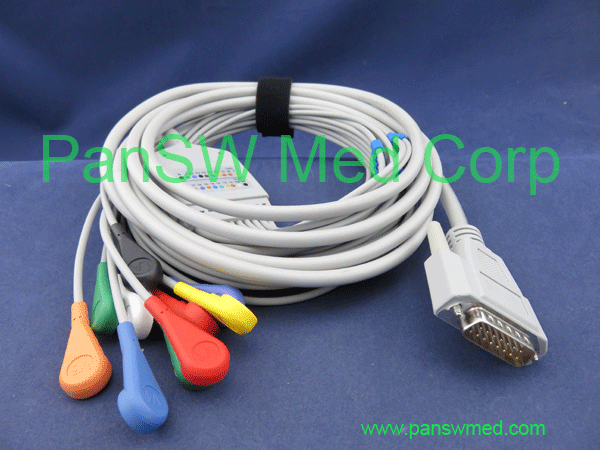

EKG-10005H		integrated; AHA, DB15M-snap

for description please refer the above

for gallery for more pictures please click here

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Nihon Kohden ECG cable pinout

---
