Product >>SPO2 products >>Nellcor DS-100A spo2 sensor (Non-Oximax)

Nellcor DS100A spo2 sensor non-oximax

Compatibie with the following brands and models:
Artema:Diascope Datascope :Accutorr Plus,Expert,Passport;Dräger:Cicero,Narkomed,Vitalert 1000 GEMS: Corometrics 118,120,129,188,510,556;GEMS:Critikon  9710,9720 Plus,Compact,Dinamap Select ,MPS ,Oxyshuttle,Pro 300/400 (non-OxiMax®);GEMS: Eagle Series,Dash Series,Hellige Eagle 1000,3000,Eagle SMK ,SMU,SMV,SOLAR Series,TRAM Modular x50SL Series;Invivo Research :M12 (Nellcor® SpO2),Millennia 4500 Plus 2;Invivo/M.D.E .:Escort 100 OPT11A,Escort 300A,Escort II OPT30,Prism (Nellcor® SpO2);Ivy Biomedical :405A,405D,405P,405T,Vital-Guard 450CN ;Mennen:Horizon XL (Nellcor® SpO2) ,MR 1300 Mercury 1200;Nellcor®:N100 (req. preamp cable),N180,N200 (req. extension cable),N-20,NPB-40,NPB-75,NPB-290/5 ,N-390,N-395,N-3000,N-6000;Nihon Kohden: BSM-1102 LifeScope EC,BSM-2304 iPro (LifeScope i),BSM-4102 Procyon LT (LifeScope P),BSM-4104 Procyon (LifeScope P),BSM-4112 Procyon LT (LifeScope P),BSM-4114 Procyon (LifeScope P),BSM-9510 LifeScope M (Nellcor® SpO2),OGS-2000 PocketCare (Nellcor® SpO2); Pace Tech:Vitalmax 800 Series (black face,Nellcor® SpO2);  MEK (nellcor module): MP1000 Siemens :SC6000,SC7000,SC8000,SC9000XL,Sirecust 630 ,Sirecust700,Sirem SpO2 Module; Spacelabs :90351-0/6,90465 (Nellcor®SpO2),90466 (Nellcor® SpO2) ,90467 (Nellcor® SpO2),90489 (Nellcor®SpO2) ,90496/90369/90367 Ultraview (Nellcor® SpO2) ,90651A-08,IM77; Welch Allyn Protocol :Atlas (Nellcor® SpO2),Propaq CS  (Nellcor® SpO2),:Propaq 106-EL,Propaq 202-EL,Propaq 204-EL,Propaq 206-EL,Micropaq (Nellcor® SpO2) ,Spot Vital Signs, Vital Signs (non-OxiMax®)


And any other nellcor module equipped machine without Oximax technology.

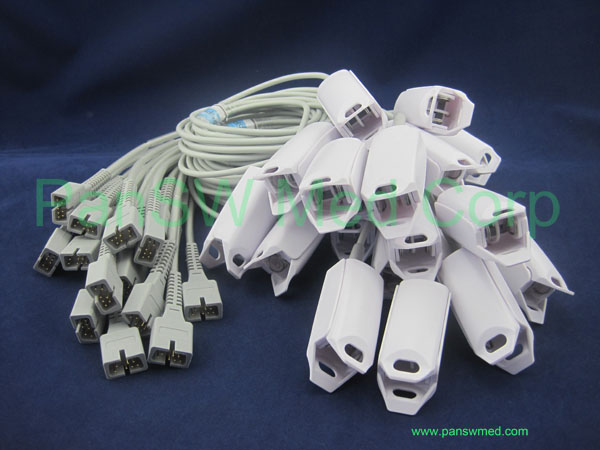

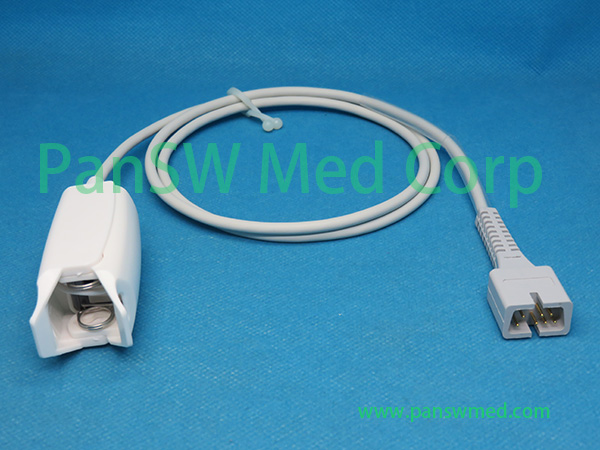

Nellcor DS-100A spo2 sensor non-oximax

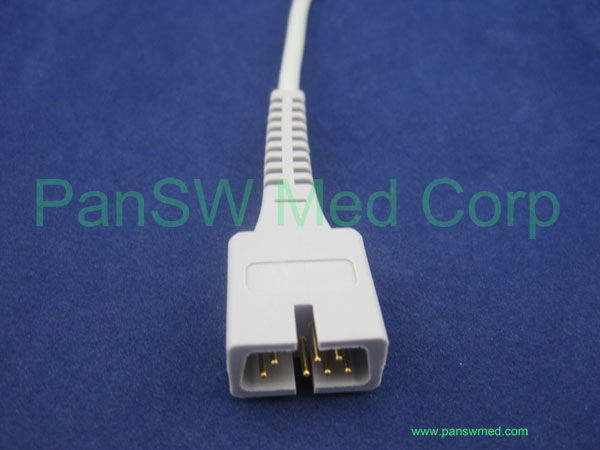

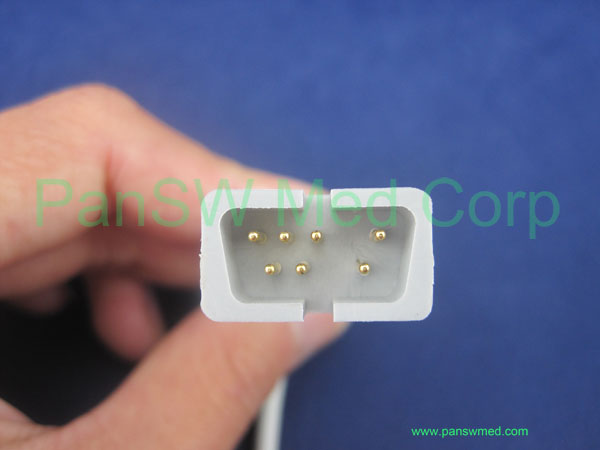

connector view

Also the following sensors types available:

Nellcor

DS-100A

RSP-10041A

Nellcor adult finger clip spo2 sensor,3ft



RSP-10041B

Nellcor adult soft tip spo2 sensor,3ft



RSP-10041C

Nellcor pediatric finger clip spo2 sensor,3ft



RSP-10041D

Nellcor pediatric soft tip spo2 sensor,3ft



RSP-10041E

Nellcor neonate wrap spo2 sensor,3ft



RSP-10041F

Nellcor adult ear clip Spo2 sensor,3ft



RSP-10041G

Nellcor animal tongue Spo2 sensor,3ft

For DS-100A Oximax, please refer to: DS-100A Oximax

nellcor D-sub spo2 sensor connector diagramfront view
Reference pins diagram value for engineers:
a, there is a 7.5k ohm resistor between pin 1 & pin 6;
b, pin 3-->LED anode; pin 2-->LED cathode;
c, pin 5-->photodector anode; pin 9-->photodetector cathode;
d, pin 6 for outer shielding; pin 7 for inner shielding;
e; LED & IR frequency: 660/905nm;

nellcor non-oximax spo2 sensor DS-100A

Nellcor DS-100A spo2 sensor non-oximax

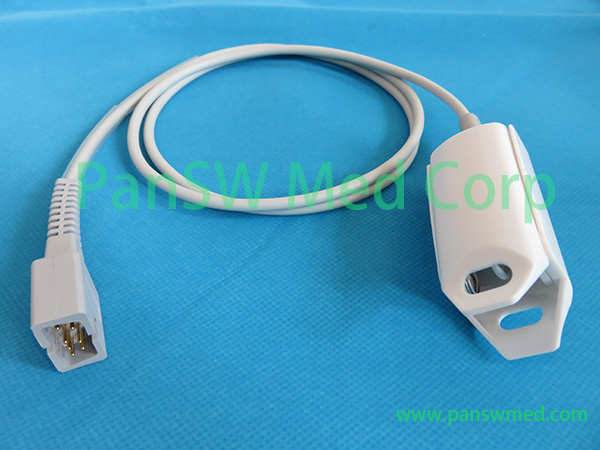

DS-100A ADULT CLIP SPO2 SENSOR

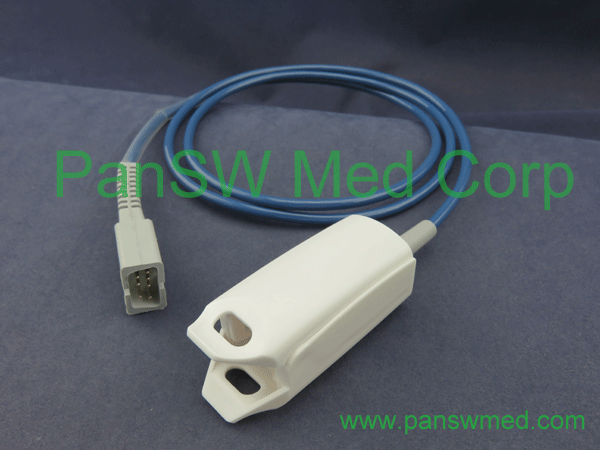

adult clip spo2 sensor nellcor
adult clip

adult ear clip spo2adult ear clip

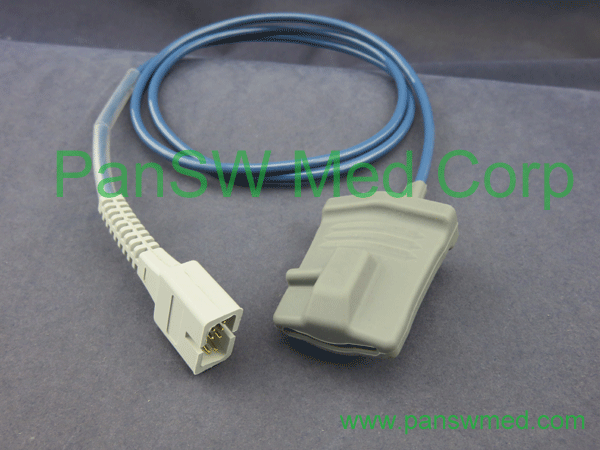

NEllcor spo2 sensor adult soft
adult silicone soft

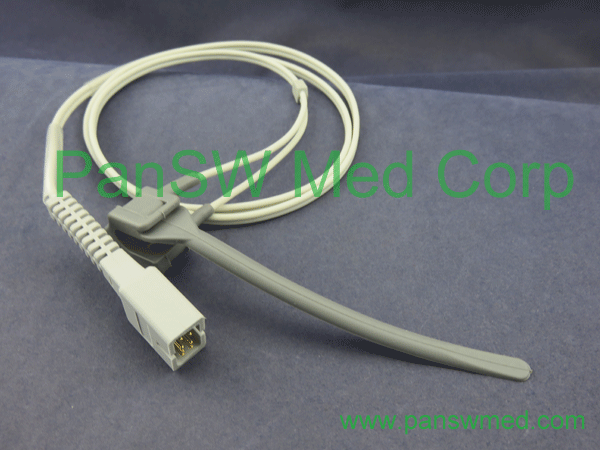

neonate spo2 sensor adult
neonate wrap

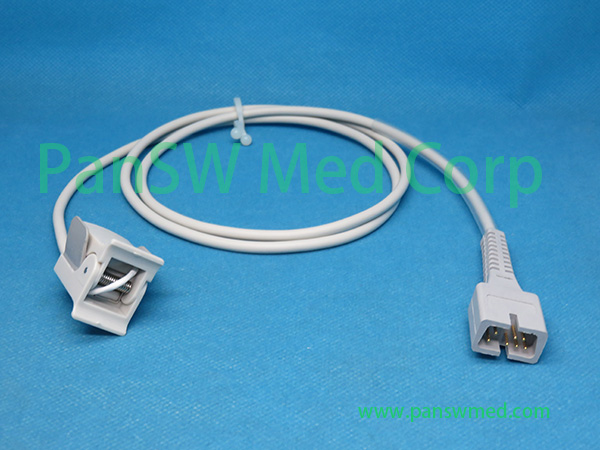

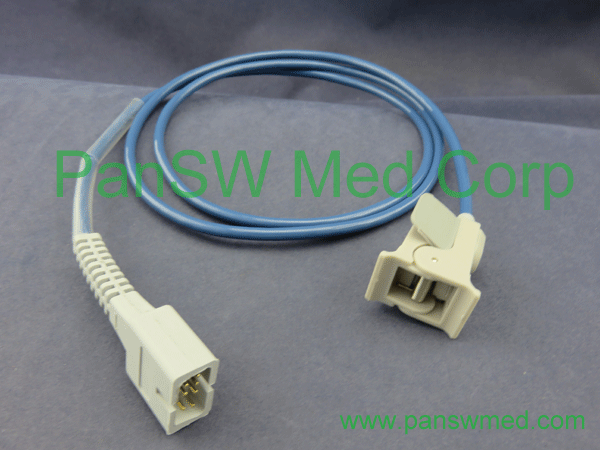

Nellcor spo2 sensor pediatric clip
pediatric clip

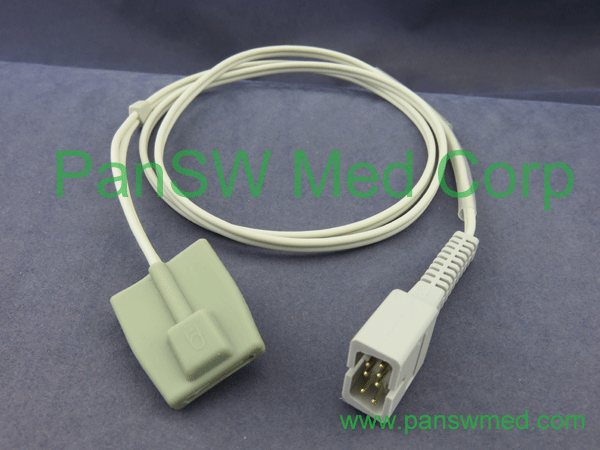

nellcor spo2 sensor pediatric soft
pediatric soft


Nellcor D25 disposible
spo2 probe
Nellcor DOC-10 series spo2
sensor
Nellcor Oximax spo2 sensor
nellcor disposible spo2 sensor adult nellcor spo2 sensor DOC-10 nellcor DS-100 spo2 sensor
