Product >>ECG/EKG cables>>compatible Dixtal EKG EP-3 EP-12 cable with leadwire

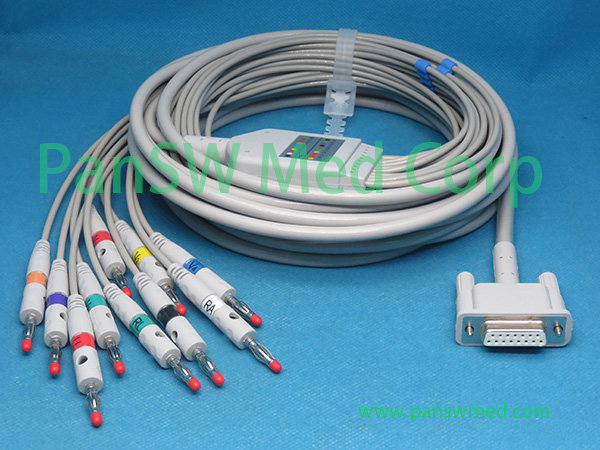

Picture 1: general view of Dixtal ECG cable (AHA color coding, banana);

Compatible with: Eletropágina; EP-3 EP-12

Description: completely shielded structure; TPU jacket wire; anti-noise design;

Please refer the list below to see all the types cables for Dixtal EKG machine:

Part No	OEM No	Description
EKG-10023A		10 leads;  integrated; IEC, DB15M-Din3.0
EKG-10023B		10 leads;  integrated; AHA, DB15M-Din3.0
EKG-10023C		10 leads;  integrated; IEC,DB15M-Banana4.0
EKG-10023D		10 leads;  integrated; AHA,DB15M-Banana4.0
EKG-10023E		10 leads;  integrated; IEC,DB15M-Clip end
EKG-10023F		10 leads;  integrated; AHA,DB15M-Clip end
EKG-10023G		10 leads;  integrated; IEC,DB15M-snap end
EKG-10023H		10 leads;  integrated; AHA,DB15M-snap end

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Dixtal EP-12 cables
Part No	OEM No	Description
EKG-10055A		integrated; IEC, DB15M-Din3.0
EKG-10055B		integrated; AHA, DB15M-Din3.0
EKG-10055C		integrated; IEC,DB15M-Banana4.0
EKG-10055D		integrated; AHA,DB15M-Banana4.0
EKG-10055E		integrated; IEC,DB15M-Clip end
EKG-10055F		integrated; AHA,DB15M-Clip end
EKG-10055G		integrated; IEC,DB15M-snap end
EKG-10055H		integrated; AHA,DB15M-snap end

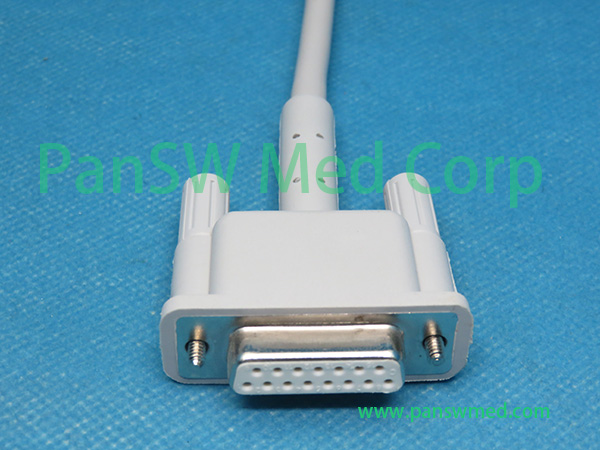

Picture 2: 10 leads ECG connector view (female 15 pins S-sub connector)

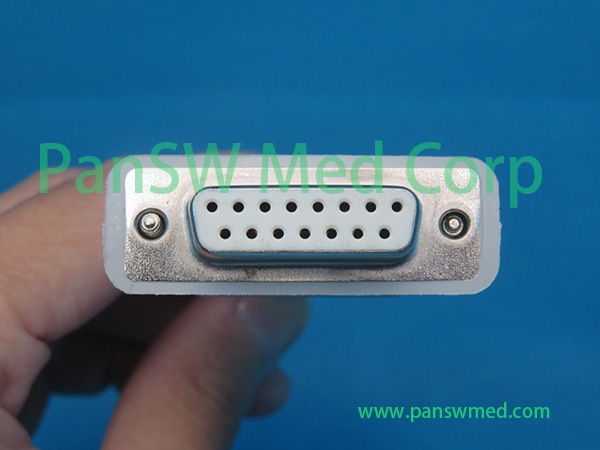

Picture 3: machine connector side view

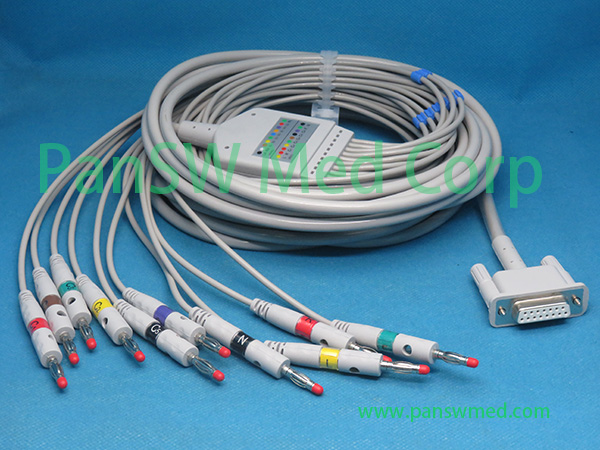

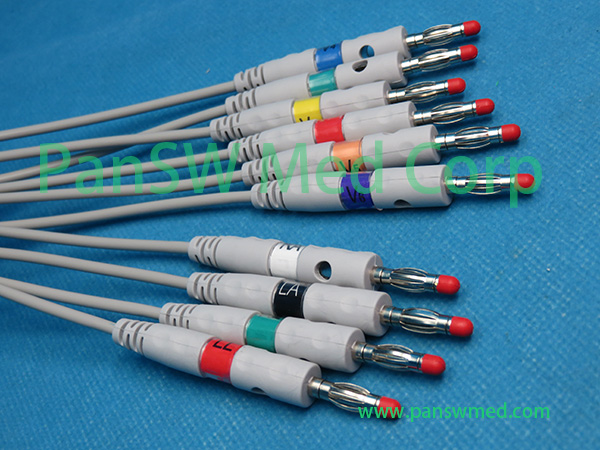

banana type ECG cable

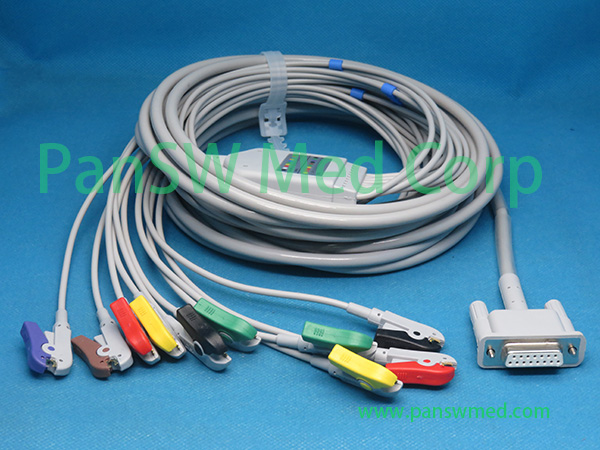

clips type

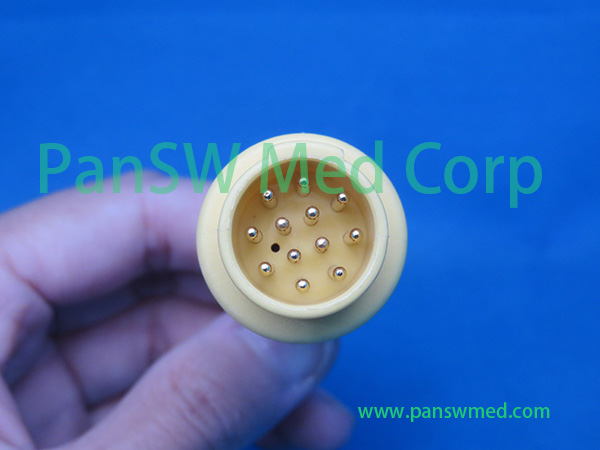

PANSW also provides EKG cable for Dixtal EP-12; 10 leads, 12 pins connector;

with adatper for disposible ECG electrodes

multi use adapter to use with disposible electrodes...

---
