For description please refer to below
for detailed pictures please click here:
PanSW part code:

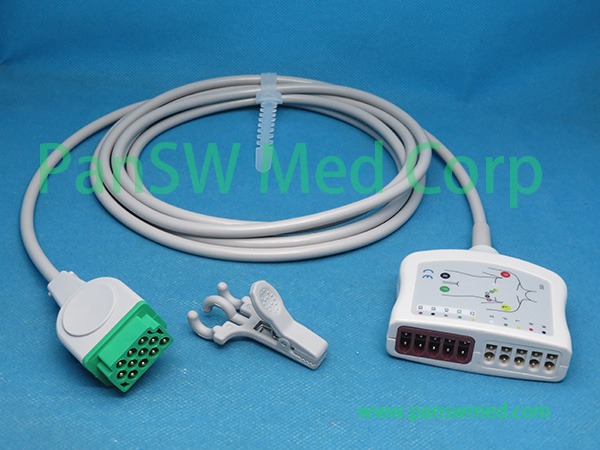

| EKG-10047A | Trunk cable, IEC | |
| EKG-10047B | Trunk cable, AHA |
Compatible with: GE Eagle, Solar, Dash , Tram,
MAC-Lab Cath Lab System,
Datex-Ohmeda S/5 FM,
Original P/N:
(AAMI: E9002ZH, 416035-001)
(IEC: E9002ZJ, 416035-002)
2017006-003-M (3.6 meters)
2017006-004-M (1.2 meters)
EKG-10046A |
|
integrated; IEC, DB15M-Din3.0 |
|
|
EKG-10046B |
|
integrated; AHA, DB15M-Din3.0 |
|
|
EKG-10046C |
|
integrated; IEC,DB15M-Banana4.0 |
|
|
EKG-10046D |
|
integrated; AHA,DB15M-Banana4.0 |
|
|
EKG-10046E |
|
integrated; IEC,DB15M-Clip end |
|
|
EKG-10046F |
|
integrated; AHA,DB15M-Clip end |
|
|
EKG-10046G |
|
integrated; IEC,DB15M-snap end |
|
|
EKG-10046H |
|
integrated; AHA,DB15M-snap end |
|
|
EKG-10047A |
|
Trunk cable, IEC |
|
|
EKG-10047B |
Trunk cable, AHA |
|
|
|
EKG-10048A |
|
10 leads lead set; IEC, Din3.0 |
|
|
EKG-10048B |
|
10 leads lead set; AHA, Din3.0 |
|
|
EKG-10048C |
|
10 leads lead set; IEC, Banana4.0 |
|
|
EKG-10048D |
|
10 leads lead set; AHA, Banana4.0 |
|
|
EKG-10048E |
|
10 leads lead set; IEC, clips |
|
414556-004 Set/5, Grabber connector, R,L,F,N,C, 130 cm, IEC; 416467-004 74 cm grabber connector, C2--C6, IEC 416467-002 130cm, C2-C6 IEC |
EKG-10048F |
|
10 leads lead set; AHA, clips |
|
|
EKG-10048G |
|
10 leads lead set; AHA, snap |
|
|
EKG-10048H |
|
10 leads lead set; AHA, snap |
|
|
limb leads: 130cm length
connector view;
Description:
cable length: 3 meters;
Double shielding cables; anti-noise design; GE 11 pins connector;
PanSW also provide integarted ECG trunk cable for this machine. clips or banana or snap are available
For description please refer to above
for detailed pictures please click here:
Core technology:
1, All the leads we have longer length to coordinate with bigger size patients without difficulty.
2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment
3, the wires we use bigger size, very durable; surface is convenient for cleaning
4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.
compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
