Compatible GE Marquette 5-lead ECG leadwire
Compatible GE Marquette 5-lead ECG leadwire is a compatible ecg cable supplied by PanSW Med for patient monitor maintenance, replacement, and distributor ordering.
Product Details
- Product type: Compatible ECG cable
- Compatibility: Dash2000,3000,4000,Eagle3000,4000,Solar Part number: 414556006 Use with GE Marquette ECG trunk cable See also: GE Marquette 3 leads ECG leadwires connector view

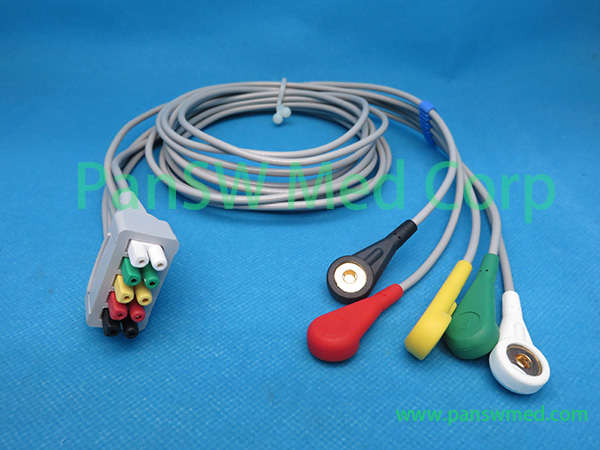

- GE Marquette 5 leads ECG leadwire, AHA color coding, snaps
- Description: VS style 2 pins connector; terminal: 4.0 snap. clips leadwire also available; cable length: 1 meters; cable material: TPU jacket shielded cable; Compatible with: Dash2000,3000,4000,Eagle3000,4000,Solar Part number: 414556006 Use with GE Marquette ECG trunk cable
- See also: GE Marquette 3 leads ECG leadwires

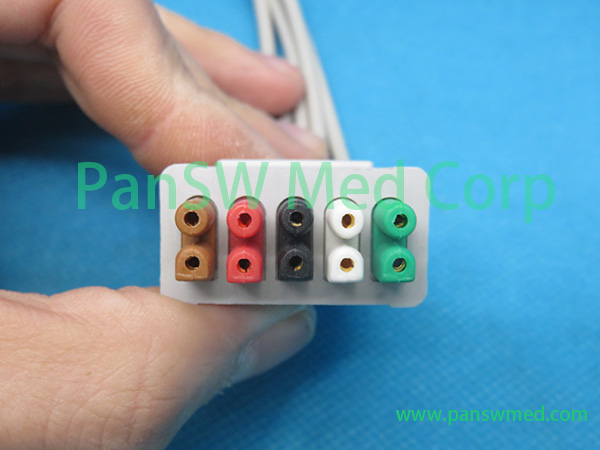

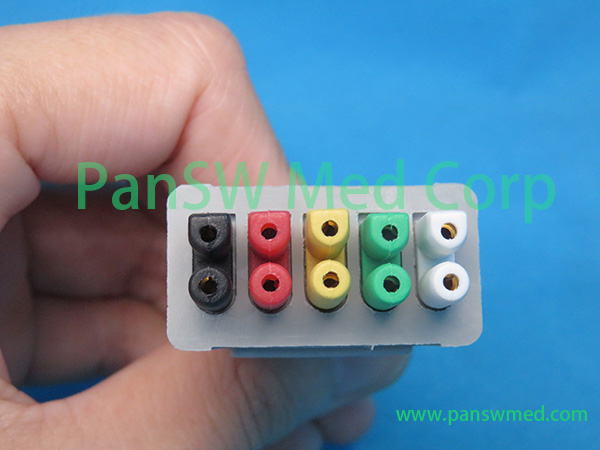

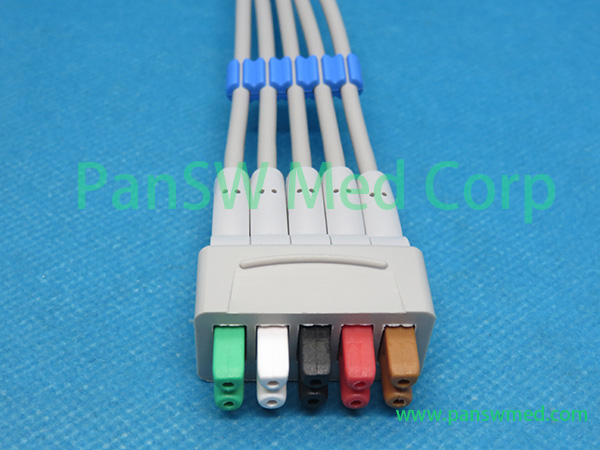

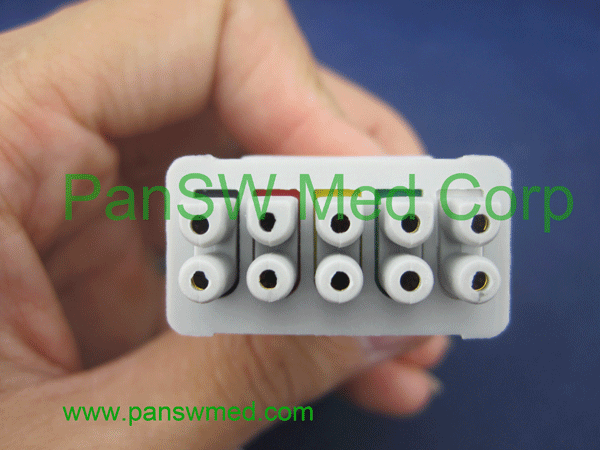

- connector view;
- Clips type: GE original part number: 414556-003 Leadwire set/5, grabber, 74 cm, IEC 414556-004 130 cm
- Medical TPU jacket cable with shielded conductor design for stable ECG signal transmission.
- AHA/AAMI and IEC color coding options can be supplied according to the requested configuration.
- Snap, clip/grabber, and other patient-end options are available when applicable.
- Confirm connector style, lead count, color standard, and electrode terminal before ordering.
Application and Ordering Notes
Used for ECG signal connection between compatible patient monitors/modules and patient-side ECG electrodes. Please confirm monitor model, monitor-side connector, lead count, color standard, cable length, and patient-end terminal before ordering.
Product Images and Available Configurations
Compliance and Quality Notes
- compliance with ANSI/AAMI EC53 EN60601-1 ISO 10993-1 ISO 10993-5 ISO 10993-10
- compliance with RoHS
