Description: Connector: Round 12 pin connector ,
Electrode terminal: snap 4.0 on electrode end .
Compatibile with:
Martara Surveyor

Part No	OEM No	Description
EKG-10032A		integrated; IEC, 12pin connector-Din3.0
EKG-10032B		integrated;  AHA, 12pin connector-Din3.0
EKG-10032C		integrated; IEC, 12pin connector-Banana4.0
EKG-10032D		integrated; AHA, 12pin connector-Banana4.0

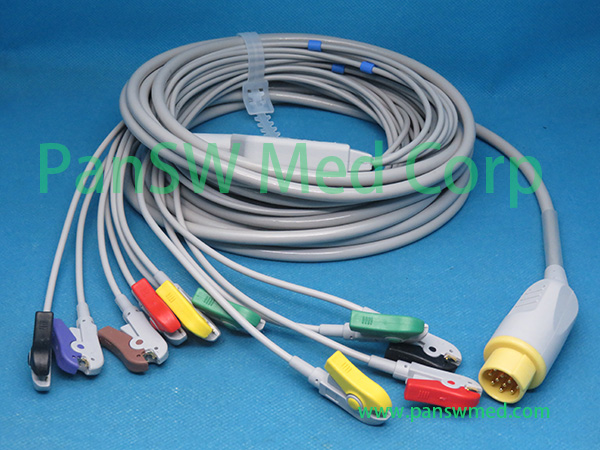

EKG-10032E		integrated; IEC, 12pin connector 10 leads clip end
EKG-10032F		integrated; AHA, 12pin connector -clip

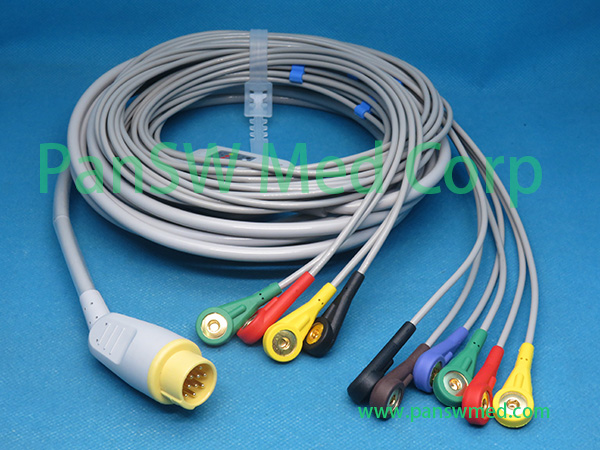

EKG-10032G		integrated; IEC, 12pin connector , snap
EKG-10032H		integrated; AHA, 12pin connector -snap

Description: medical TPU jacket cable; dual shielding; anti-noise design; fully compatible with original cable;
Cable length: 2.5 meters for main cable; 0.8 meters/1.2 meters for lead wires; OD for main cable: 6.0mm; OD for leadwire: 3.0 mm;
more details for cable structure here:

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

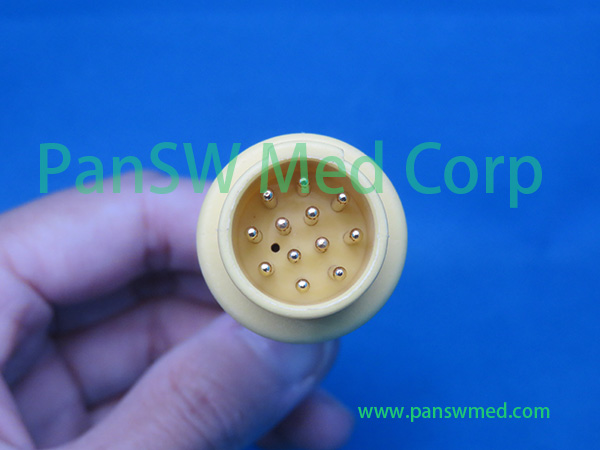

connector view;

multi use adapter to use with disposible electrodes...
