Product >>ECG/EKG cables>> compatible Nihon Kohden BSM-6000 BSM-9100 ten leads ECG patient cable

Description: Connetor: 12 pin connector;

Cable material: medical TPU jacket wires; anti-noise design; double shielding; main cable: 2.5 meters long; leadwire length: 0.9 meters for chest leads; 1.3 meters for limb leads; main cable OD: 6.0mm; lead wire OD: 3.0mm; more details of ECG cable structure here:

Electrode terminal: 3.0 Din type. Other connectors for electrodes also available, please check the list below;

Compatible with: Nihon Kohden BSM series, 10 leadwires

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Please refer to the list below for all the types cables; for more information please feel free to contact Pansw.

Part No	OEM No	Description
EKG-10025A		integrated; IEC, DB15M-Din3.0
EKG-10025B		integrated;  AHA, DB15M-Din3.0
EKG-10025C		integrated; IEC, DB15M-Banana4.0
EKG-10025D		integrated; AHA, DB15M-Banana4.0
EKG-10025E	BJ-900P	integrated; IEC, 10 leads clip end
EKG-10025F	BJ-900PA	integrated; AHA, DB15M-clip
EKG-10025G		integrated; IEC, DB15, snap
EKG-10025H		integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

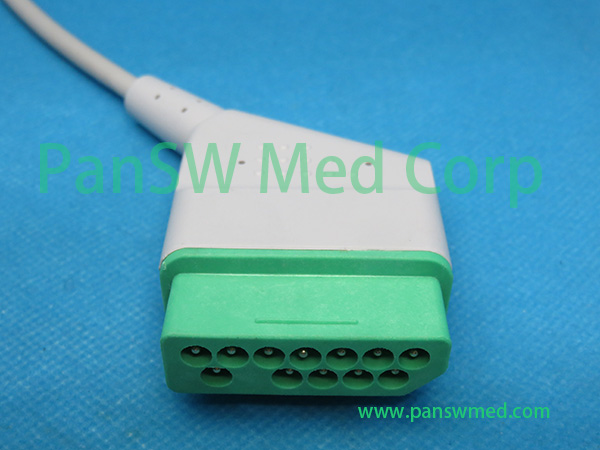

connector view 1;

---
