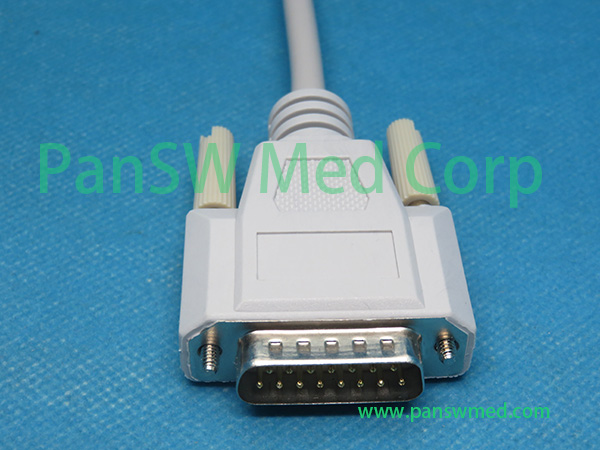

Description: Connetor:DB 15pin male connector, with screw; gold plated pins;

Cable material: medical TPU jacket wires; anti-noise design; double shielding; main cable: 2.5 meters long; leadwire length: 0.8 meters for chest leads; 1.2 meters for limb leads; main cable OD: 6.0mm; lead wire OD: 3.0mm; more details of ECG cable structure here:

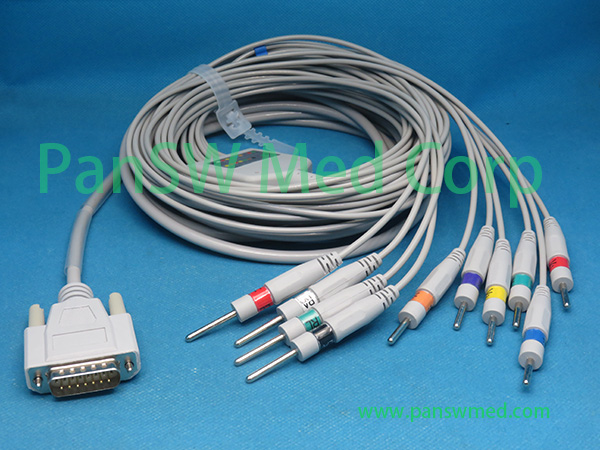

Electrode terminal: 3.0 Din type. Other connectors for electrodes also available, please check the list below;

Compatible with: Use with Nihon Kohden ECG-9620, ECG-9010, ECG-9020, ECG-9022, ECG-9110,ECG-9130,ECG-9132, DongJiang ECG-11A,ECG-11B, ECG-11D, ECG-32A, (II), ECG-120

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Please refer to the list below for all the types cables; for more information please feel free to contact Pansw.

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

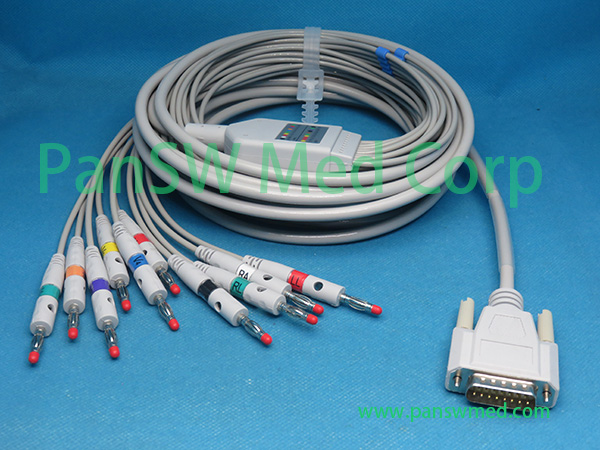

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

Nihon Kohden ECG cable pinout
