Description : DB 15pin male connector,

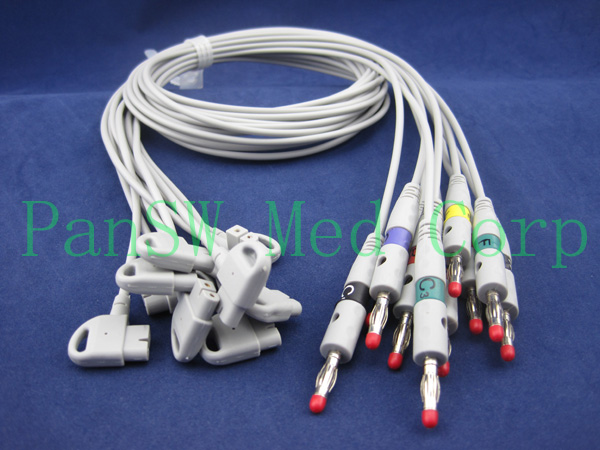

Electrode terminal: 4.0 banana end.
Compatible with: philip Medical:
M1770A PageWriter 200i ,
M1771A PageWriter 200
M1772A PageWriter 100
TC20 ECG machine

Original part number：M3703C(IEC) M3702C(AHA/AAMI)

Part No	OEM No	Description
EKG-10040A		integrated; IEC, DB15M-Din3.0
EKG-10040B		integrated; AHA, DB15M-Din3.0
EKG-10040C		integrated; IEC,DB15M-Banana4.0
EKG-10040D		integrated; AHA,DB15M-Banana4.0
EKG-10040E		integrated; IEC,DB15M-Clip end
EKG-10040F		integrated; AHA,DB15M-Clip end
EKG-10040G		integrated; IEC,DB15M-snap end
EKG-10040H		integrated; AHA,DB15M-snap end

Details:
TPU jacket multi-conductor cables; dual shielding wires; anti-noise design; braided shielding;

each cable with a ferrite bead to surppress noise;

connector view;

Cable diagram for IEC color;

for more pictures please click here,

for detailed description please refer the above

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
