Compatible with: Philips TC30 TC50 ECG machines

For description please refer to below

for detailed pictures please click here

Description: shielded; anti-noise design; banana/DIN/clips connectors are available;

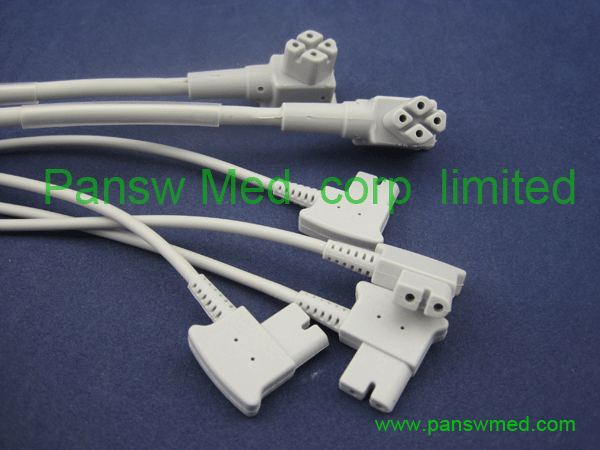

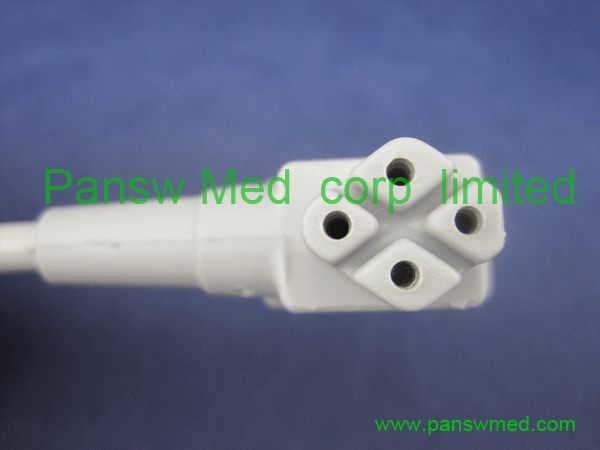

Philips TC30 TC50  ECG leads
Part No	OEM No	Description	Compatibility
EKG-10034A		integrated; IEC, DB15M-Din3.0	philips EKG machine TC30 TC50 TC70
EKG-10034B		integrated;  AHA, DB15M-Din3.0
EKG-10034C		integrated; IEC, DB15M-Banana4.0
EKG-10034D	989803151631	integrated; AHA, DB15M-Banana4.0
EKG-10034E		integrated; IEC, 10 leads clip end
EKG-10034F		integrated; AHA, DB15M-clip
EKG-10034G		integrated; IEC, DB15, snap
EKG-10034H		integrated; AHA, DB15M-snap

single unit is available, original part number: 989803151671

For description please refer to the above

for detailed pictures please click here

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10
