Product >>ECG/EKG cables>>compatible Siemens Cardina-C Cardirex-3T 4 6T 62 ECG cable

Description:
main cable length: 2.5 meters; leadwire length: 0.8 mm for chest leads; 1.2 meters for limb leads;

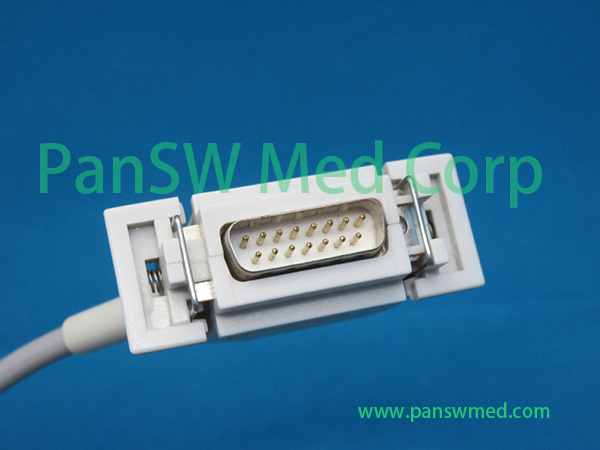

D-sub 15 pins connector with Hellige clips connector;
Medical TPU cable; completed shielded from machine connector to patient connector; anti-noise design;


Compatible with:

Bosch:603 D, 603 ER, 603 S, 606
Cambridge: CM 6000, CM 6400
Custo-med: Custo-card
DEGO: Cardiomed 3

Hellige: EK 36, EK 41, EK 43, EK 53,
EK 56, EK 403, EK 413, EK 512, EK 512 E,
EK 512 P, Cardiosmart, CardioSys, Corna

Siemens:Cardiostat1/3T/703/710/31/31S
Cardina C, Cardirex 3T/4/6T/62, Cathcor,
Megacard Elema A/B, R, R/E, Mingodoc,
Mingocard 3 / 4 / 7, Mingograph 4 / 62 / 81
Mingograph 82 / 740, Mingolog 7,
Mingophon 3/7/310/410/420/710/720,
Miracard 1, Sirecard440/440S/460/460S/740
Siereg, Sirecard 803, Sirecust 701
Megacart;

Von Berg:Bioset3500/3600/3700/6000/8000

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

all types available: clips, snaps, banana, DIN; IEC/AAMI/AHA color coding are available; for detailed products codes please review the list below:

Part No	OEM No	Description
EKG-10021A		integrated; IEC, DB15M-Din3.0
EKG-10021B		integrated; AHA,DB15M-Din3.0
EKG-10021C		integrated; IEC,DB15M-Banana4.0
EKG-10021D		integrated; AHA,DB15M-Banana4.0
EKG-10021E		integrated; IEC, DB15M-clip
EKG-10021F		integrated; AHA, DB15M-clip
EKG-10021G		integrated; IEC, DB15M-snap
EKG-10021H		integrated; AHA, DB15M-snap

Cable diagram for IEC color;

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

---
