Compatible ECG/EKG Cables and Leadwires for Patient Monitors

PanSW Medical supplies compatible ECG/EKG cables and leadwires for patient monitors and ECG systems. Product options include 3-lead ECG cables, 5-lead ECG cables, ECG trunk cables, ECG leadwires, snap terminals, clip terminals, banana terminals and defibrillation-protected ECG cable versions.

ECG cable options are available for many compatible monitor systems, including Philips, GE Marquette, Mindray, Datex-Ohmeda, Nihon Kohden, Schiller, Kontron, BCI, CSI, Spacelabs, Artema and other patient monitor brands.

ECG Trunk Cables

PM ECG-01 ECG Leads Trunk Cable, DIN Style

PM ECG-01 ECG leads trunk cable DIN style
  • Category: ECG cables and leadwires
  • Part Number: PM ECG-01
  • Part Name: ECG leads trunk cable, DIN style
  • Compatibility: 3-lead safety ECG trunk cable
  • Connector Type: 6-pin male
  • Cable Length: 2.7 metres
  • Characteristics: AHA or IEC color coding; use with PMECGLW-01 ECG leadwire

PM ECG-02 ECG Leads Trunk Cable, 5 Leads DIN Style

Compatible DIN ECG trunk cable 5 leads
  • Category: ECG cables and leadwires
  • Part Number: PM ECG-02
  • Part Name: ECG leads trunk cable, DIN style
  • Compatibility: 5-lead safety ECG trunk cable
  • Connector Type: 6-pin male
  • Cable Length: 2.7 metres
  • Characteristics: AHA or IEC color coding; use with PM ECGLW-01 ECG leadwire

PM ECG-03 Philips Style ECG Trunk Cable

Compatible Philips ECG trunk cable 3 leads IEC color
  • Category: ECG cables and leadwires
  • Part Number: PM ECG-03
  • Part Name: ECG leads trunk cable, Philips style
  • Compatibility: Philips 78352C, 78834C, M1001A/B, M1002A/B, M1722A/B, M1723A/B, M2475B, M3000A, M4735A
  • Connector Type: 12-pin male
  • Cable Length: 2.7 metres
  • Characteristics: AHA or IEC color coding; use with PM ECGLW-08 ECG leadwire

3-Lead ECG Cables

PM ECG-04(S) ECG 3-Lead Cable with Snaps

Compatible Philips ECG cable IEC snap ECG 10013B
  • Part Number: PM ECG-04(S)
  • Part Name: ECG 3-lead cable with snaps, common style
  • Compatibility: BCI, CSI, IVY, Critikon, MDE, Physio-Control series monitors
  • Connector Type: 6-pin male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

PM ECG-04(C-Defib) ECG 3-Lead Cable with Clips

Compatible Mindray ECG cable 3 leads AHA clip
  • Part Number: PM ECG-04(C-Defib)
  • Part Name: ECG 3-lead cable with clips, defibrillation protection
  • Compatibility: BCI, CSI, IVY, Critikon, MDE, Physio-Control series monitors
  • Connector Type: 6-pin male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

ECG-04(S-Defib) ECG 3-Lead Cable with Snaps

Compatible Nihon Kohden ECG cable 3 leads
  • Part Number: ECG-04(S-Defib)
  • Part Name: ECG 3-lead cable with snaps, defibrillation protection
  • Compatibility: BCI, CSI, IVY, Critikon, MDE, Physio-Control series monitors
  • Connector Type: 6-pin male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

ECG-05 Datex Style ECG 3-Lead Cable with Snaps

Compatible ECG leads for Siemens Drager IEC color 5 leads snap
  • Part Number: ECG-05
  • Part Name: ECG 3-lead cable with snaps, Datex style
  • Compatibility: Datex-Ohmeda AS/3, S/5, Cardiocap I/II, Cardiopan, CS/3, Satellite Plus, Satellite Trans
  • Connector Type: 10-pin female
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

Datex-Ohmeda Style ECG 3-Lead Cable with Clips

Compatible Datex integrated ECG cable IEC snap
  • Part Name: ECG 3-lead cable with clips, Datex style
  • Compatibility: Datex-Ohmeda AS/3, CS/3, S/5, Cardiocap I & II, Light Monitor, Satellite Plus
  • Connector Type: 10-pin female
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

Kontron Style ECG 3-Lead Cable with Clips

Bruker Schiller ECG cable 4 leads
  • Part Name: ECG 3-lead cable with clips, Kontron style
  • Compatibility: Kontron 7137, 7138, 7220, 7221, 7222, 7260, 7284, Kolormon, Micromon, Minimon
  • Connector Type: 10-pin male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

ECG-08 Kontron Style ECG 3-Lead Cable with Clips

Compatible ECG cable for Kontron IEC color clip 3 leads
  • Part Number: ECG-08
  • Part Name: ECG 3-lead cable with clips, Kontron style
  • Compatibility: Kontron 7000, 7250, 7251, 7210 monitors
  • Connector Type: 12-pin male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

S&W Diascope Style ECG 3-Lead Cable with Snaps

Artema 3 leads ECG cable
  • Part Name: ECG 3-lead cable with snaps, S&W Diascope style
  • Compatibility: Diascope 1/2, Neoscope, DMS 700, Diascope-NT, Athena Systems, Cardio-Aid, DS Traveller, DSNT, DS1, DS2, MCX/LS
  • Connector Type: 10-pin female
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

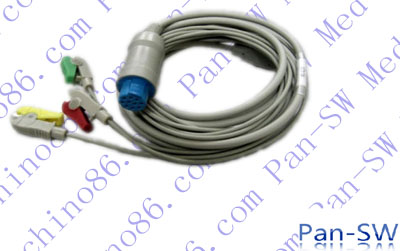

ECG-09C S&W Diascope Style ECG 3-Lead Cable with Clips

Datex Ohmeda ECG cable
  • Part Number: ECG-09C
  • Part Name: ECG 3-lead cable with clips, S&W Diascope style
  • Compatibility: Diascope 1/2, Neoscope, DMS700, Diascope-NT, Athena Systems, Cardio-Aid, DS Traveller, DSNT, DS1, DS2, MCX/LS
  • Connector Type: 10-pin female
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

5-Lead ECG Cables

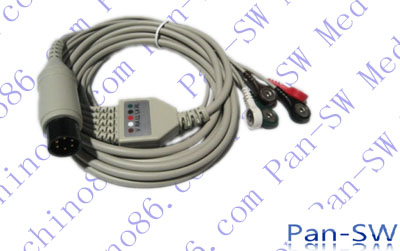

ECG-10 ECG 5-Lead Cable with Snaps, Common Style

Compatible ECG cable for Mindray IEC color clip
  • Part Number: ECG-10
  • Part Name: ECG 5-lead cable with snaps, common style
  • Compatibility: BCI, CSI, IVY, Critikon, MDE, Physio-Control series monitors
  • Connector Type: 6-pin male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

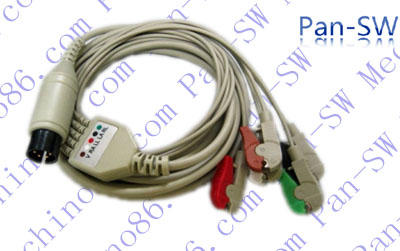

ECG-10C ECG 5-Lead Cable with Clips, Common Style

Compatible ECG cable Mindray AHA color clip ECG 10009G
  • Part Number: ECG-10C
  • Part Name: ECG 5-lead cable with clips, common style
  • Compatibility: BCI, CSI, IVY, Critikon, MDE, Physio-Control series monitors
  • Connector Type: 6-pin male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

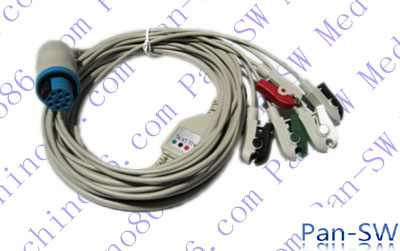

ECG-12 Datex-Ohmeda Style ECG 5-Lead Cable with Clips

Compatible ECG cable for Datex Ohmeda 5 leads IEC color clip
  • Part Number: ECG-12
  • Part Name: ECG 5-lead cable with clips, Datex style
  • Compatibility: Datex-Ohmeda AS/3, CS/3, S/5, Cardiocap I & II, Light Monitor, Satellite Plus
  • Connector Type: 10-pin female
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

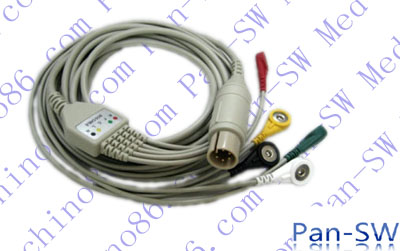

ECG-13 ECG 5-Lead Cable with Snaps, Defibrillation Protection

Mindray 3 leads ECG cable snap IEC color
  • Part Number: ECG-13
  • Part Name: ECG 5-lead cable with snaps, defibrillation protection
  • Compatibility: OEM model
  • Connector Type: 6-pin male
  • Cable Length: 3.2 metres

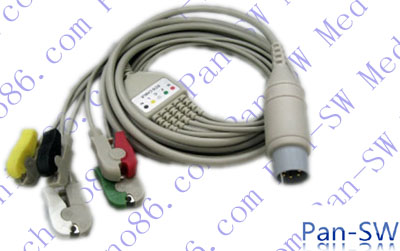

ECG-13C ECG 5-Lead Cable with Clips, Defibrillation Protection

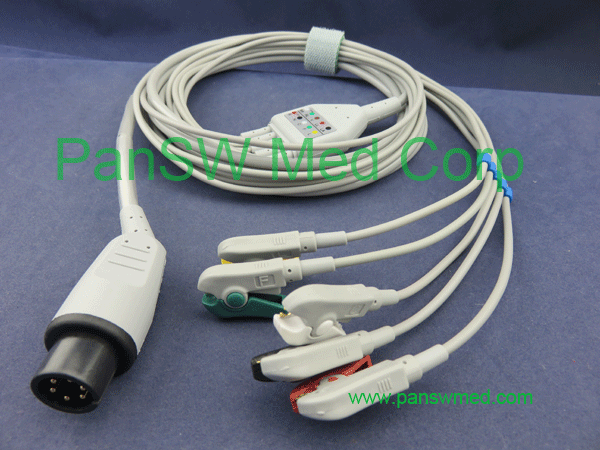

Compatible Mindray PM9000 ECG cable 5 leads IEC
  • Part Number: ECG-13C
  • Part Name: ECG 5-lead cable with clips, defibrillation protection
  • Compatibility: OEM model
  • Connector Type: 6-pin male
  • Cable Length: 3.2 metres

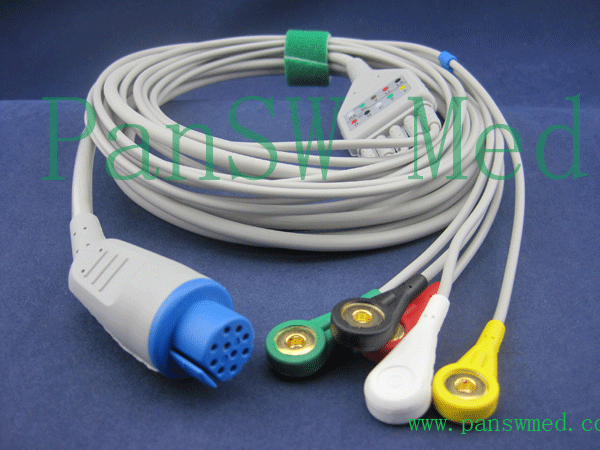

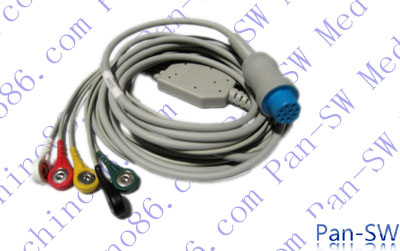

ECG-14 Datex Style ECG 5-Lead Cable with Snaps

Datex Ohmeda integrated ECG cable IEC snap
  • Part Number: ECG-14
  • Part Name: ECG 5-lead cable with snaps, Datex style
  • Compatibility: Datex AS/3, AS/3 Compact, AS/3 Light, S/5, Cardiocap I/II, Cardiopan, CS/3, Satellite Plus, Satellite Trans
  • Connector Type: 10-pin female
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

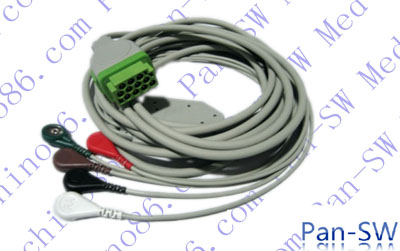

ECG-15 GE Marquette Style ECG 5-Lead Cable with Snaps

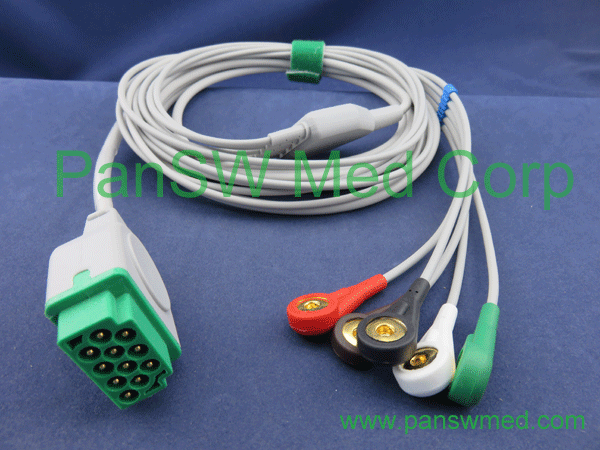

GE Medical ECG cable 5 leads AHA snap
  • Part Number: ECG-15
  • Part Name: ECG 5-lead cable with snaps, GE Marquette style
  • Compatibility: Hellige-Marquette Dash 2000/3000/4000, Eagle 3000/4000, EKG-Modul, Solar 8000, TRAM-Modul
  • Connector Type: 11-pin rectangular male
  • Cable Length: 3.2 metres
  • Characteristics: AHA or IEC color coding

Compatible ECG Cable Brands and Options

ECG cables and leadwires are available with different connector types, lead counts, color standards and electrode terminals. Please confirm the patient monitor model, ECG connector, lead count, AHA or IEC color coding, and electrode terminal type before ordering.

PhilipsCompatible ECG trunk cables and leadwires
GE MarquetteCompatible ECG cables for Dash, Eagle, Solar and TRAM systems
MindrayCompatible ECG cables and leadwire options
Datex-OhmedaCompatible 3-lead and 5-lead ECG cables
Nihon KohdenCompatible ECG cable options
SchillerECG machine cable and patient cable options
BCI / CSICommon style ECG cable compatibility
Kontron / Artema / S&WCompatible ECG cable options for selected systems

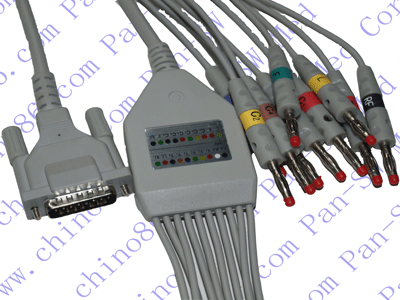

Schiller ECG Machine Cable with Suction Balls and Clamps

Schiller One-piece 10-Lead ECG Cable, AHA

Compatible Schiller ECG cable with suction balls and ECG clamps
  • Description: Schiller one-piece 10-lead cable and leadwire, AHA
  • Connector: DB 15-pin
  • Electrode Terminal: Banana 4.0
  • Compatibility: Schiller AT-102, CS-200, Cardiovit AT-10 Plus, AT-104 PC, AT-110
Inquiry Information:
To confirm the correct ECG/EKG cable or leadwire, please provide the patient monitor brand, model, ECG connector type, lead count, AHA or IEC color coding, electrode terminal type, and whether defibrillation protection is required.
