GE Medical SpO2 Sensor Compatibility Guide

Customers often ask questions such as: “I have a GE Dash 4000 patient monitor. Which SpO2 sensor should I use?” or “Which SpO2 sensor works with my GE Solar 8000 monitor?” The answer depends on the installed SpO2 module and cable interface, not only the monitor model name.

Why the monitor model alone is not enough

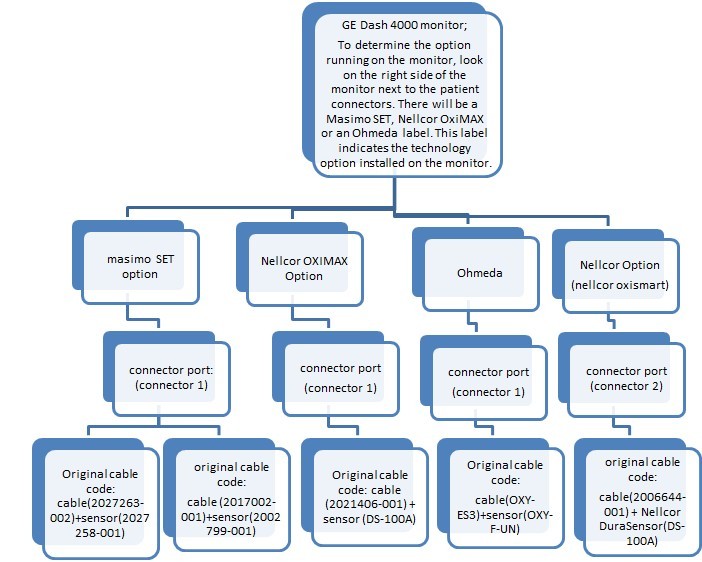

GE patient monitors can use different SpO2 technologies and connector systems, including Masimo SET, Nellcor Oximax, Nellcor non-Oximax, and Ohmeda/TruSignal types. For example, a GE Dash 4000 monitor may use different SpO2 modules, so the correct cable or sensor must be identified by the module port, connector shape, and original part number.

The safest method is to confirm the current SpO2 cable part number or provide photos of the monitor SpO2 port and cable connector.

GE Medical SpO2 sensor and extension cable compatibility overview

GE 11-pin SpO2 connector compatibility list

GE Medical SpO2 module, connector, original part number, and PANSW replacement reference
Connector group Module / port type Monitor connector view Related SpO2 cable Original part number PANSW part number

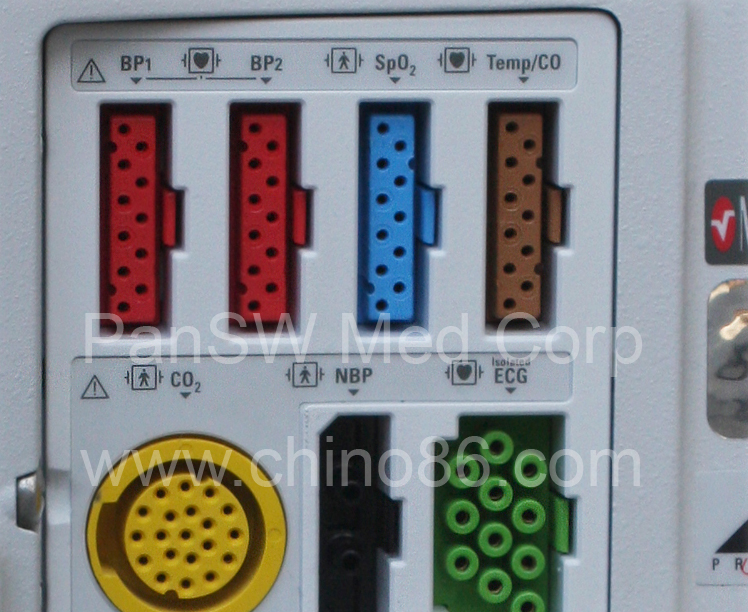

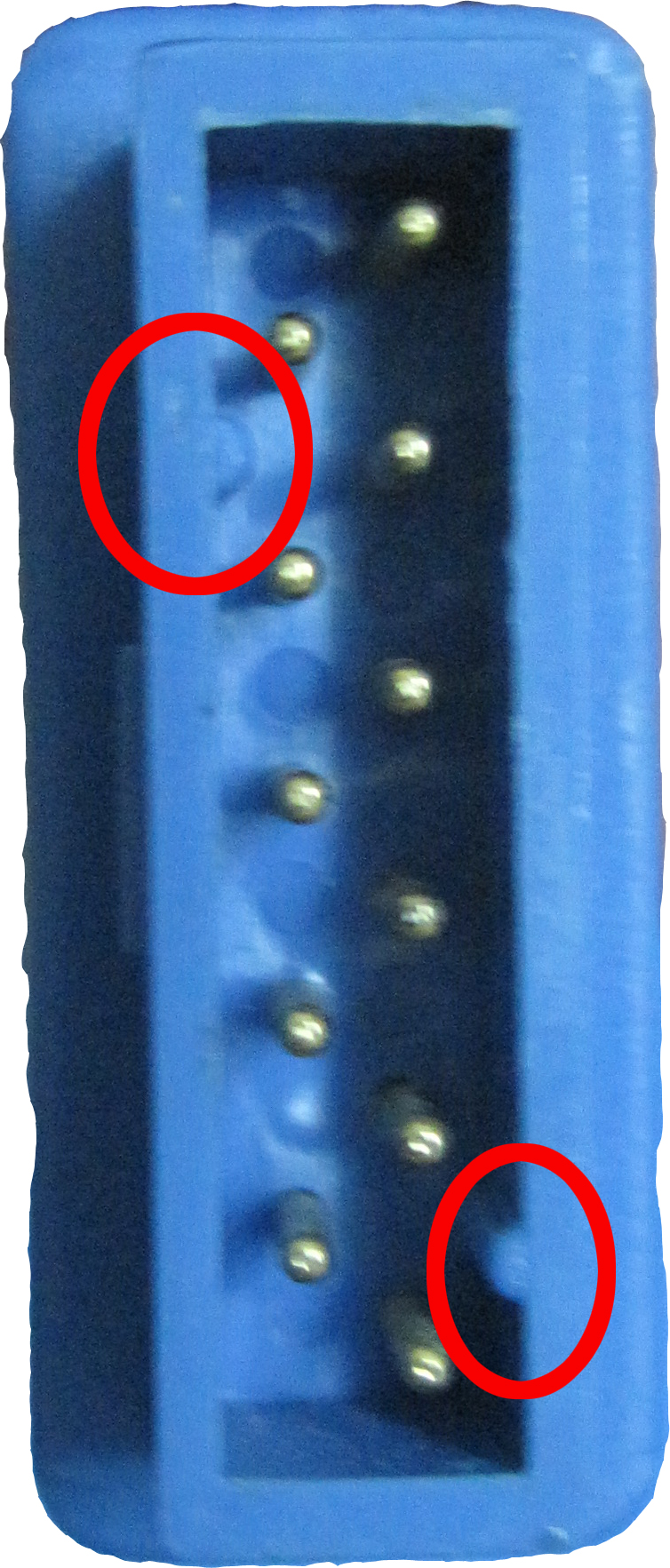

Connector 1 GE Masimo SET SpO2 module port Masimo SET GE SpO2 connector 1 reference image GE 2006644-001 Oxismart SpO2 cable 2027263-002 ADP-10010C
Connector 1 Masimo LNOP GE SpO2 connector 1 reference image for Masimo LNOP cable GE 2017002 Masimo LNOP SpO2 cable 2017002-001 (3.6m)
2017002-003 (2.4m)		 ADP-10010D

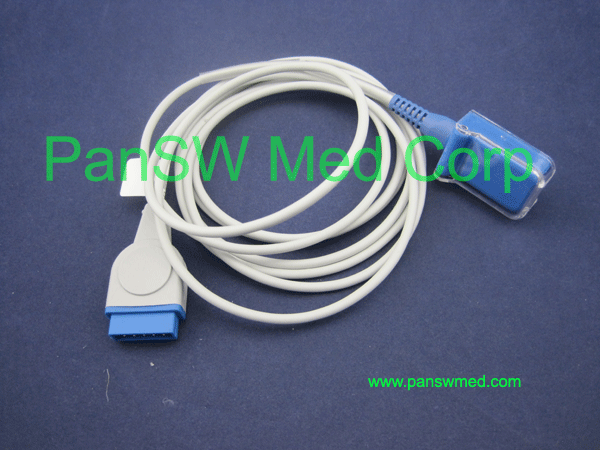

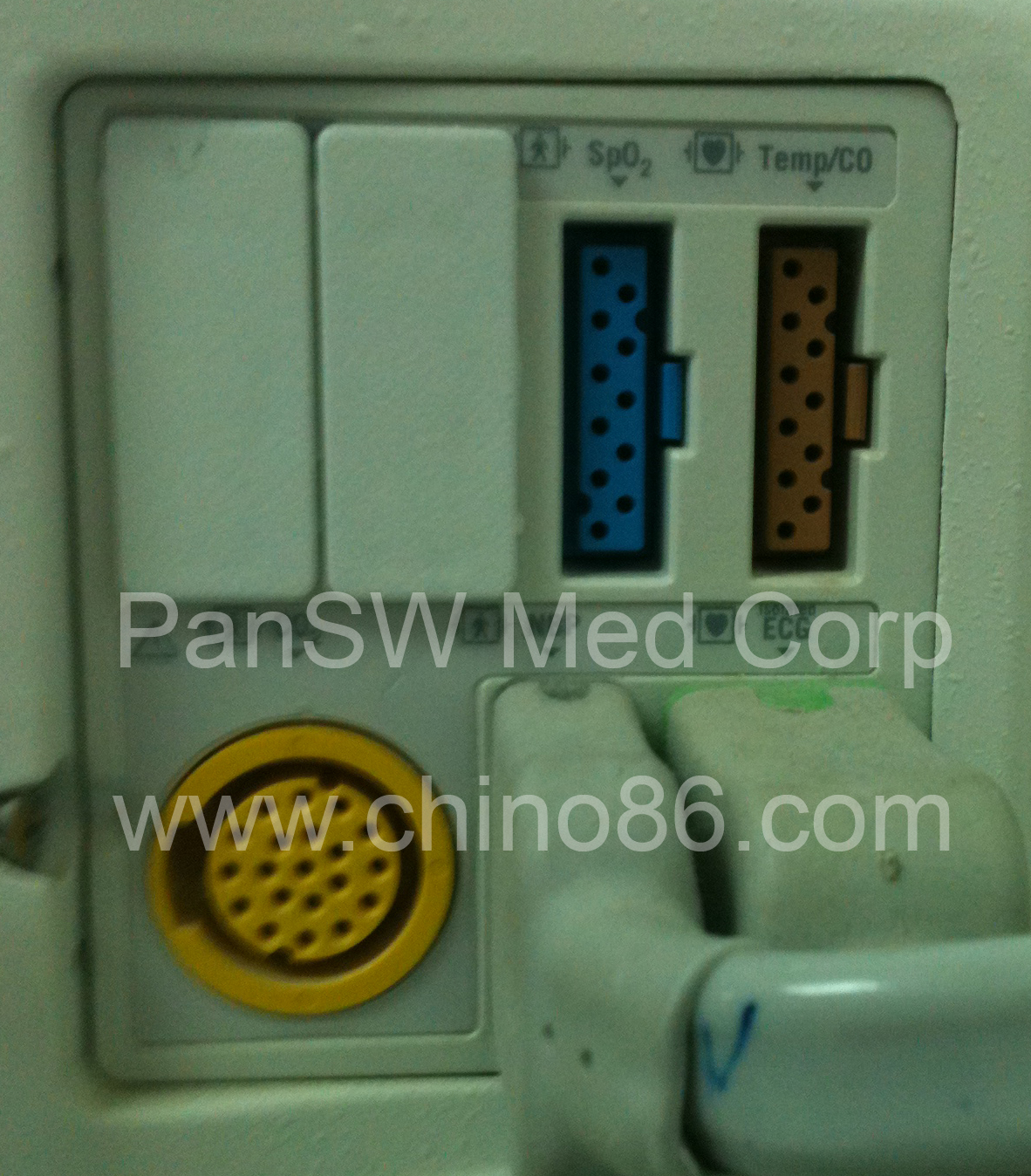

Connector 1 GE Nellcor Oximax SpO2 port Nellcor Oximax SpO2 port GE SpO2 connector 1 reference image for Nellcor Oximax GE 2021406-001 Oximax SpO2 cable 2021406-001 ADP-10010B

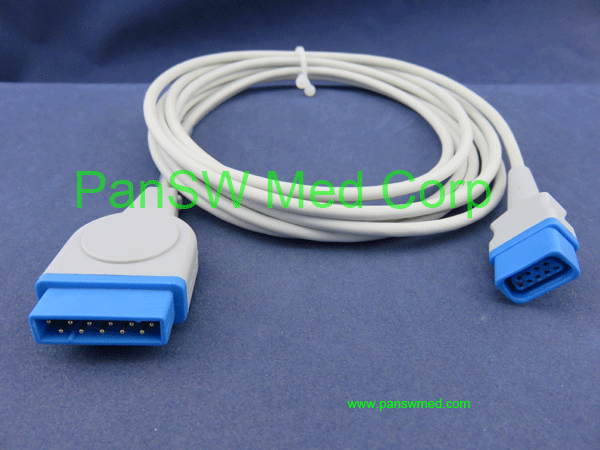

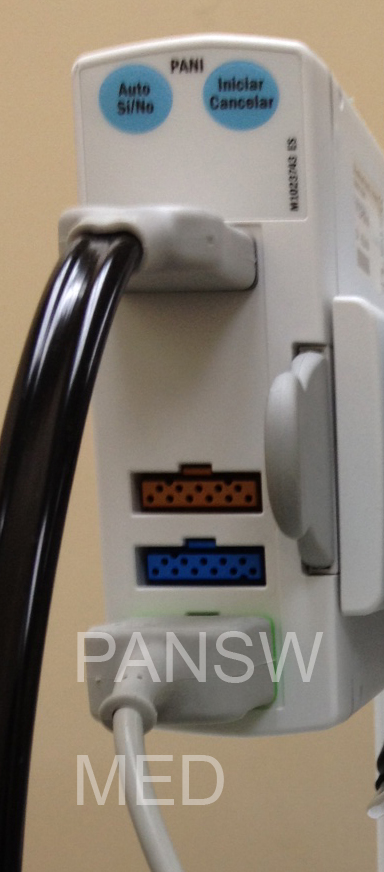

Connector 1 GE Ohmeda SpO2 module Ohmeda module GE SpO2 connector 1 reference image for Ohmeda module GE Marquette to Ohmeda SpO2 extension cable Compatible GE Ohmeda TS-G3 SpO2 cable OXY-ES3

TS-G3		 ADP-10010E
ADP-10010F

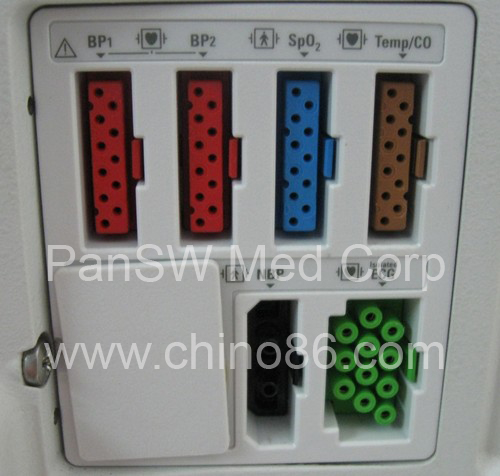

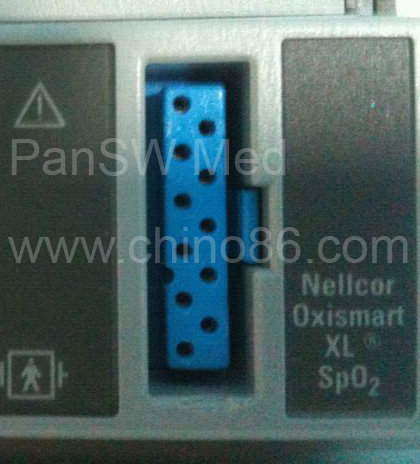

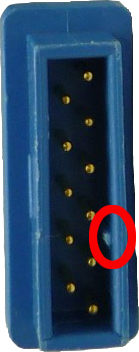

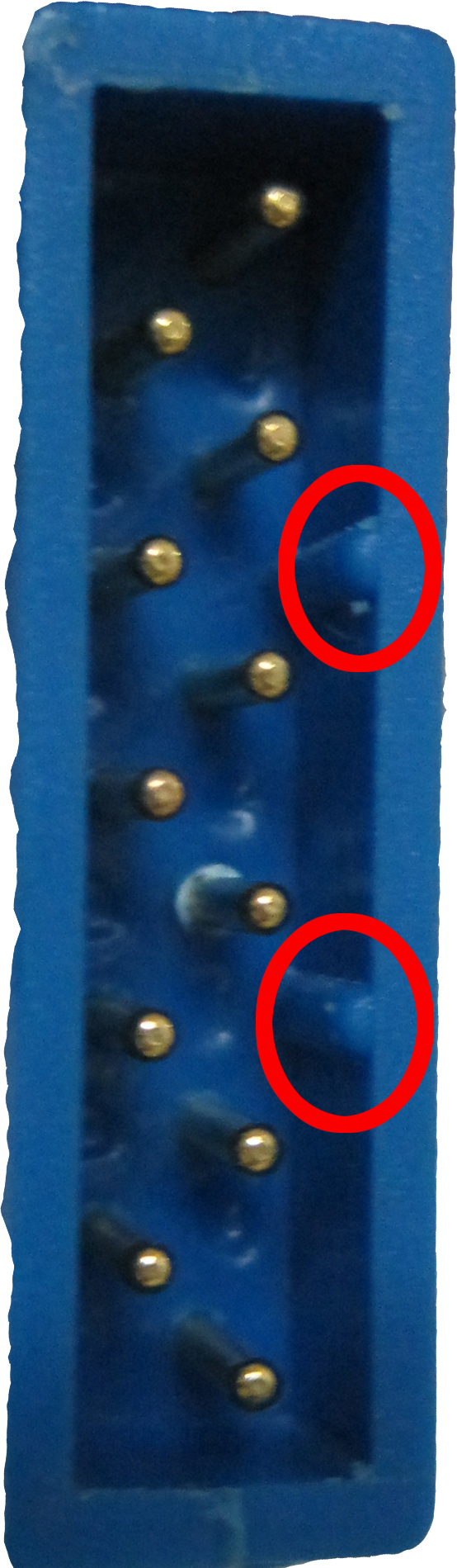

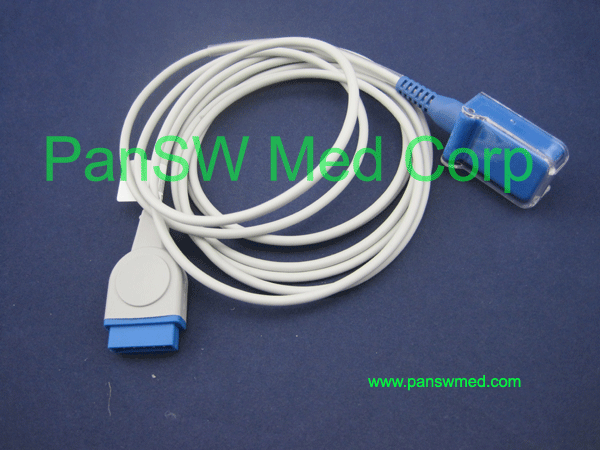

Connector 2 GE Nellcor SpO2 port GE Dash 4000 Nellcor module port Nellcor SpO2 port, non-Oximax / Oxismart GE Nellcor SpO2 connector GE Nellcor SpO2 cable plug reference GE 2006644-001 non-Oximax SpO2 cable 2006644-001 ADP-10010A

GE SpO2 sensor reference images

GE Medical Oxismart SpO2 sensor reference
GE Medical Oxismart SpO2 cable and sensor reference
GE Medical Oximax and Ohmeda SpO2 cable reference

Ordering note

If you are not sure which GE SpO2 sensor or extension cable you need, please provide the GE monitor model, SpO2 module type, existing cable part number, and clear photos of both connectors. This avoids selecting the wrong Masimo, Nellcor, Oximax, Ohmeda, or TruSignal type.

GE 2027263-002 SpO2 cable GE 2017002-001 SpO2 cable GE 2021406-001 SpO2 cable GE OXY-ES3 SpO2 cable GE 2006644-001 SpO2 cable
