Description: BCI DB9 connector; white color; for adult ear clip use; cable length 1 meter;
Medical TPU jacket cable; copper conductor; Flexible and durable;
Compatible with BCI adult ear clip spo2 sensor
use with: BCI(Biochem International): 3401,3304,3303,3302,3301,3300;
Spacelabs Burdick: PRO2;
Dräger: Dräger Oxipac 2000
Choice Electronic: MD300M
Brand |
Original P/N |
P/N |
Description |
BCI |
3044 |
RSP-10001A |
|
3044 |
RSP-10001B |
BCI adult soft tip spo2 sensor, 3ft |
|
3178 |
RSP-10001C |
BCI pediatric finger clip spo2 sensor, 3ft |
|
3178 |
RSP-10001D |
BCI pediatric soft tip spo2 sensor, 3ft |
|
|
RSP-10001E |
BCI neonate wrap spo2 sensor, 3ft |
|
|
RSP-10011F |
BCI adult ear clip Spo2 sensor. 3ft |
|
|
RSP-10011G |
BCI animal tongue Spo2 sensor, 3ft |
|
Compatibilities: BCI 3100, 3101, 3300, 3301, 3302,3303,3304, 3401, 6100, 9100 Advisor, Autocorr Mini Torr, Mini Torr Plus; Monicard patient monitor; Spacelabs Burdick: PRO2; Dräger: Dräger Oxipac 2000; Beijing Chioce: MD300M |
|||

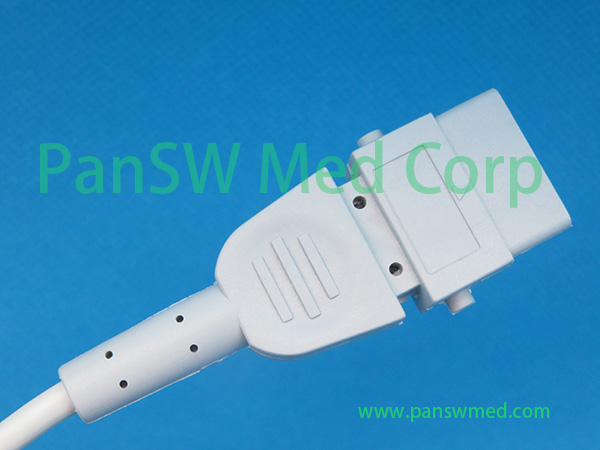

connector view
front view
Reference pinout diagram value for engineers:
a, Pin 1,6,7 short, connected with outer and inner shielding;
b, pin
3-->LED anode; pin 2-->IR anode;
c, pin 5-->photodector anode; pin 9-->photodetector cathode;
compliance with EN60601-1 ISO80601-2-61 ISO 10993-1 ISO 10993-5 ISO 10993-10
compliance with RoHS
