Description: White BCI DB9 connector; cable length, usually 1 meter but could be 3 meters also; ABS clips; medical TPU jacket; double shielding;

Compatible with:
BCI(Biochem International): 3401,3304,3303,3302,3301,3300;
Spacelabs Burdick: PRO2;
Dräger: Dräger Oxipac 2000

All the types available, for details please refer to the list following:

Brand	Original P/N	P/N	Description

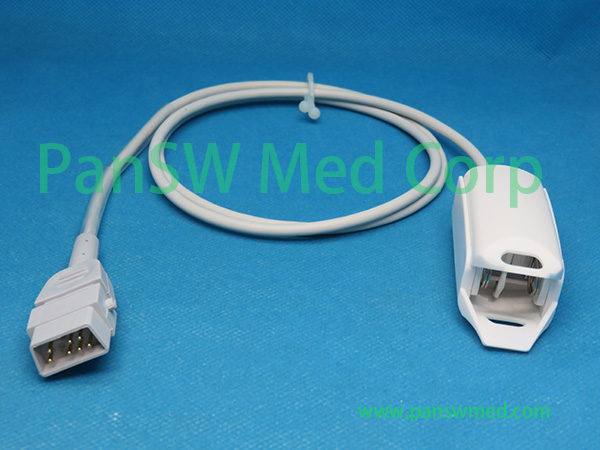

BCI	3044	RSP-10001A	BCI adult finger clip spo2 sensor, 3ft
	3044	RSP-10001B	BCI adult soft tip spo2 sensor, 3ft

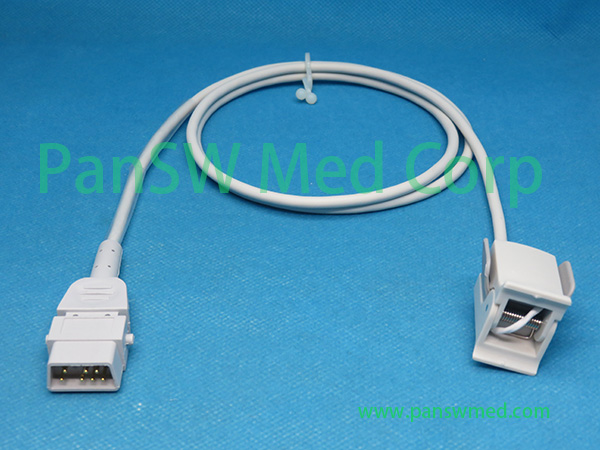

	3178	RSP-10001C	BCI pediatric finger clip spo2 sensor, 3ft
	3178	RSP-10001D	BCI pediatric soft tip spo2 sensor, 3ft
		RSP-10001E	BCI neonate wrap spo2 sensor, 3ft
		RSP-10011F	BCI adult ear clip Spo2 sensor. 3ft
		RSP-10011G	BCI animal tongue Spo2 sensor, 3ft
Compatibilities: BCI 3100, 3101, 3300, 3301, 3302,3303,3304, 3401, 6100, 9100 Advisor, Autocorr Mini Torr, Mini Torr Plus; Monicard patient monitor; Spacelabs Burdick: PRO2; Dräger: Dräger Oxipac 2000; Beijing Chioce: MD300M

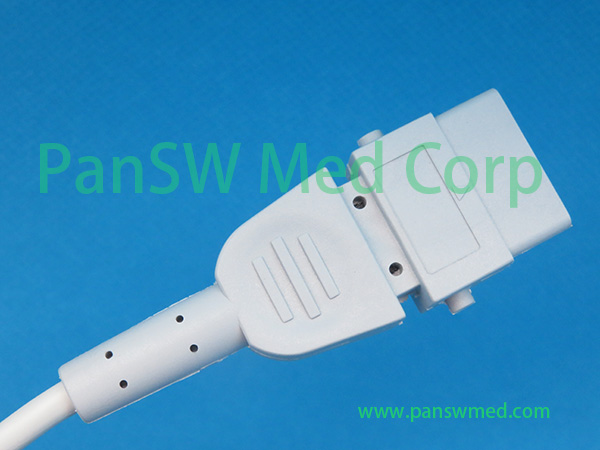

connector view

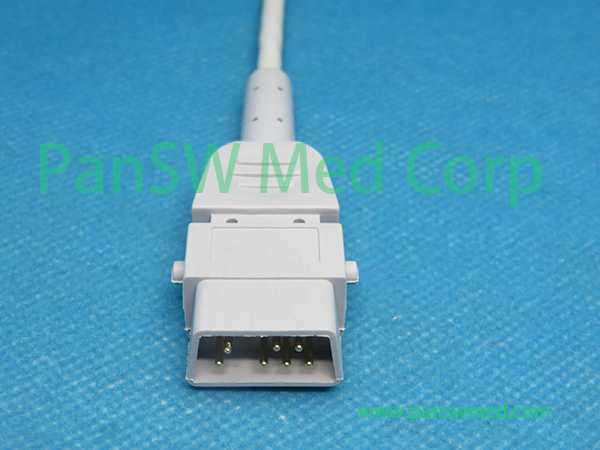

front view
Reference pins diagram value for engineers:
a, Pin 1,6,7 short, connected with outer and inner shielding;
b, pin 3-->red LED anode; pin 2-->red LED cathode;
c, pin 5-->photodector anode; pin 9-->photodetector cathode;



compliance with EN60601-1 ISO80601-2-61 ISO 10993-1 ISO 10993-5 ISO 10993-10

compliance with RoHS
