Product >>BP products>>disposible/single-patient use NIBP cuff

compatible Bionet ecg cable for more pictures please click the link



Detailed description:

Disposible NIBP cuff:

  No. Product description   Dimension use with

carton box dimension/quantity/Gross weight

  1 neonate NIBP cuff NEONATE[1] 110*16mm 3.3cm~5.6cm 55*48*18cm/500pcs/4kg
  2 neonate NIBP cuff NEONATE[2] 140*32mm 4.2cm~7.1cm 55*48*18cm/500pcs/4.5kg
  3 neonate NIBP cuff NEONATE[3] 200*40mm 5cm~10.5cm 55*48*18cm/500pcs/5kg
  4 neonate NIBP cuff NEONATE[4] 250*50mm 6.9cm~11.7cm 55*48*18cm/500pcs/7kg

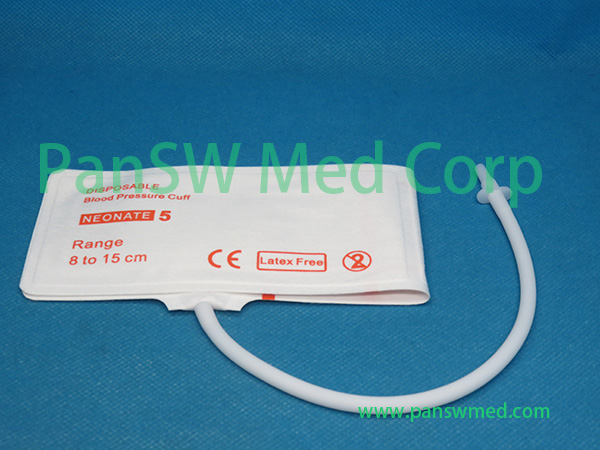

  5 neonate NIBP cuff NEONATE[5] 270*60mm 8.9cm~15cm 55*48*18cm/500pcs/7.5kg
  6 neonate NIBP cuff NEONATE[6] 213*49mm 7.7cm~10.5cm 55*48*18cm/500pcs/5kg
  7 infant NIBP cuff INFANT[7] 255*59mm 9.8cm~13.3cm 55*48*18cm/300pcs/5.5kg
  8 small child NIBP cuff SMALL CHILD[8] 305*75mm 12.4cm~16.8cm 55*48*18cm/250pcs/6kg
  9 child NIBP cuff CHILD[9] 385*90mm 15.8cm~21.3cm 55*48*18cm/200pcs/6kg
  10 small adult NIBP cuff SMALL ADULT[10] 405*110mm 20cm~27cm 55*48*18cm/200pcs/8kg
  11 adult NIBP cuff ADULT[11] 518*140mm 25.3cm~34.3cm 55*48*18cm/100pcs/6kg
  12 large adult NIBP cuff LARGE ADULT[12] 640*170mm 32.1cm~43.4cm 55*48*18cm/80pcs/7.2kg
  13 adult thigh NIBP cuff ADULT THIGH[13] 790*225mm 46cm~66cm 55*48*18cm/50pcs/6.5kg
Remark:
1. Material: non-woven cloth with TPU/PVC coating
2. 1-5# tube 3*6*200mm,7-13# tubes 4*8*200mm
3. single tube or dual tube
4. Durablity:≥3,000 time

products comply with RoHS standard, EN 60601-1 EN980 EN1041 ISO 10993-1 ISO 10993-5 ISO 10993-10 ANSI/AAMI SP10

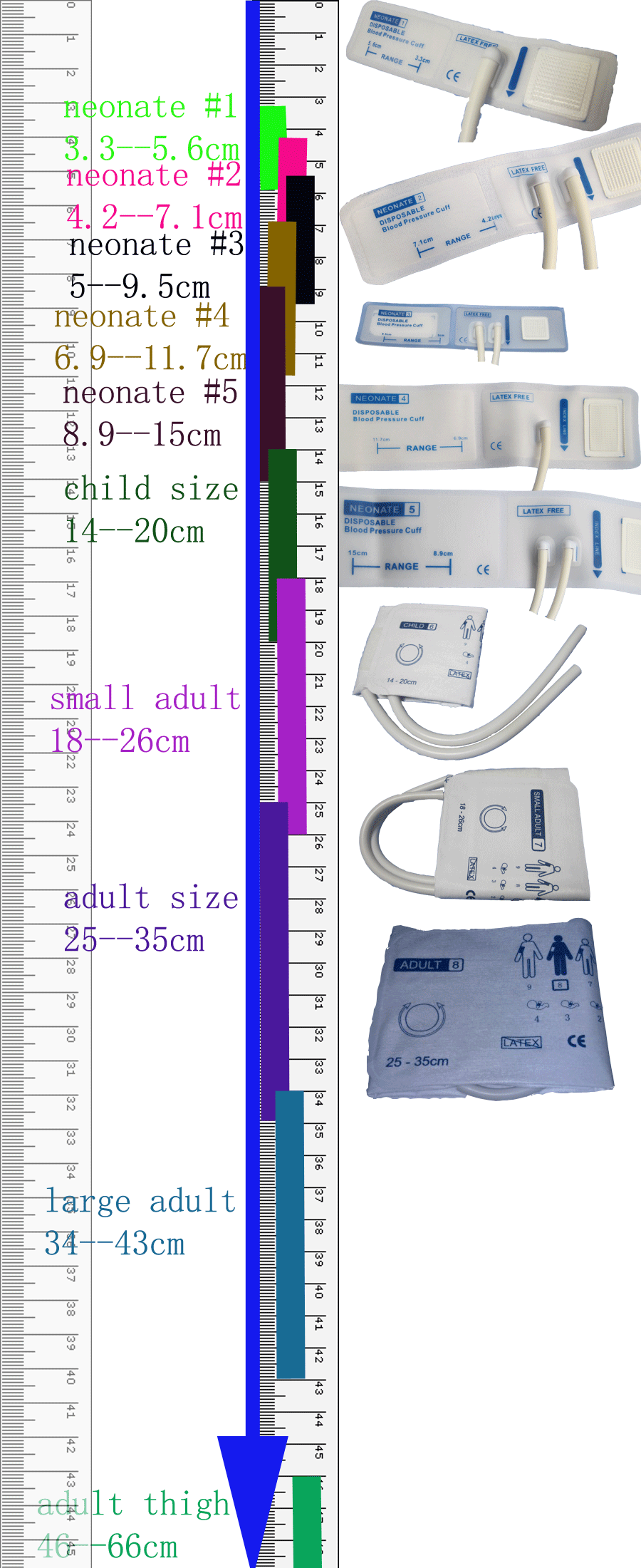

How to choose correct nibp cuff?

how to choose correct disposible nibp cuff

Counterpart compatibility charter:
Original Spacelabs Counterpart charter:
714-1020-00  Child Arm Circumstance: 12—19 cm/4.72 to 7.48 inches
714-1021-00  Small Adult: Arm circumstance 17—25 cm/6.69 to 9.84 inches
714-1022-00  Small Adult Arm Circumstance 17—26 cm/6.69 to 10.24 inches
714-1023-00  Adult Arm Circumstance 23—33 cm/9.06 to 13 inches
714-1024-00  Adult Arm Circumstance 24--32 cm/9.45 to 12.60 inches
714-1025-00  Large Adult Arm Circumstance 31 to 40 cm/12.20 to 15.75 inches
714-1026-00  Large Adult Arm Circumstance 32 to 46 cm/12.20 to 18.11 inches
714-1027-00  Thigh Circumstance 38 to 50 cm/14.96 to 19.69 inches

714-1028-01 Neonatal 1 Arm Circumstance 3 to 6 cm/1.18 to 2.36 inches
714-1029-01 Neonatal 2 Arm Circumstance 4 to 8 cm/1.57 to 3.15 inches
714-1030-01 Neonatal 3 Arm Circumstance 6 to 11 cm/2.36 to 4.33 inches
714-1031-01 Infant Arm Circumstance 8 to 13 cm/3.15 to 5.12 inches

Datex-Ohmeda counterpart charter:

Part No. Description Limb Circum Pu
Soft-Cuf Blood Pressure Cuffs, Dual-Tube, Mated Submin Connectors – For Datex-Ohmeda Monitors
2451 Soft-Cuf, Child, 2 TB, Mated Submin, Green/White 12 – 19 cm
2452 Soft-Cuf, Small Adult, 2 TB, Mated Submin, Lt. Blue/White 17 – 25 cm
2453 Soft-Cuf, Adult, 2 TB, Mated Submin, Navy/White 23 – 33 cm
2454 Soft-Cuf, Adult Long, 2 TB, Mated Submin, Navy/White 23 – 33 cm
2455 Soft-Cuf, Large Adult, 2 TB, Mated Submin, Rose/White 31 – 40 cm
2456 Soft-Cuf, Large Adult Long, 2 TB, Mated Submin, Rose/White 31 – 40 cm
2457 Soft-Cuf, Thigh, 2 TB, Mated Submin, Brown/White 38 – 50 cm

Nihon Kohden Counterpart charter:
• YP-920P Cuff for neonates · width 2.5 cm · cone joint on 15 cm
connection hose
• YP-921P Cuff for neonates · width 3 cm · cone joint on 15 cm
connection hose
• YP-922P Cuff for neonates · width 4 cm · cone joint on 15 cm
connection hose
• YP-923P Cuff for neonates · width 5 cm · cone joint on 15 cm
connection hose
• YP-910P Cuff for infants · width 6 cm · NK bayonet joint on 20 cm
connection hose
• YP-912P Cuff for children · width 9 cm · NK bayonet joint on 20 cm
connection hose
• YP-913P Cuff for adults · width 12 cm · NK bayonet joint on 20 cm
connection hose
• YP-914P Cuff for adults · width 14 cm · NK bayonet joint on 20 cm
connection hose
• YP-915P Cuff for adults · width 16 cm · NK bayonet joint on 20 cm
connection hose
• YP-916P Cuff for adults · width 20 cm · NK bayonet joint on 20 cm
connection hose


GE Critikon:
2503
Soft-cuf, Adult, 2 TB, Navy
/ White, Screw (BX/20)
2504
Soft-cuf, Large Adult,
2TB, Rose / White, Screw

compliance with:

ANSI/AAMI SP10 EN60601-1 EN980 EN1041 ISO 10993-1 ISO 10993-5 ISO 10993-10

RoHS
