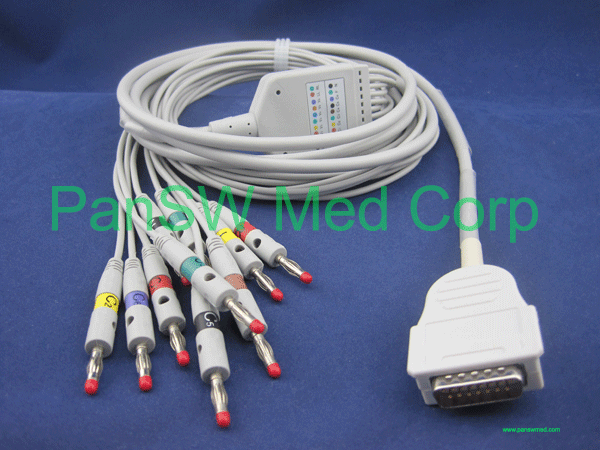

Picture 1: general view

Description: Connector:DB 15pin male 3.0 Din on electrode end

material: TPU jacket wires; completely shielded structure; more details for cable structure here:

Compatible with: Burdick EK-10

Part No	OEM No	Description
EKG-10008A	EK-10	integrated; IEC, DB15M-Din3.0
EKG-10008B		integrated; AHA, DB15M-Din3.0
EKG-10008C		integrated; IEC, DB15M-Banana4.0
EKG-10008D		integrated; AHA ,DB15M-Banana4.0
EKG-10008E		integrated; IEC, DB15M-clip
EKG-10008F		integrated; AHA, DB15M-clip
EKG-10008G		integrated; IEC, DB15M-snap
EKG-10008H		integrated; AHA, DB15M-snap

Core technology:

1, All the leads we have longer length to coordinate with bigger size patients without difficulty.

2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment

3, the wires we use bigger size, very durable; surface is convenient for cleaning

4, the banana connector is specifically enhanced to make sure not signal loss even after long time usage.

compliance with
ANSI/AAMI EC53; ICE 60601-1 ISO10993-1 ISO 10993-5 ISO 10993-10

connector view:

multi use adapter to use with disposible electrodes...
