ECG/EKG cables >> banana to clip adapters

banana to clip adapters

Adapter banana 4mm - Snap

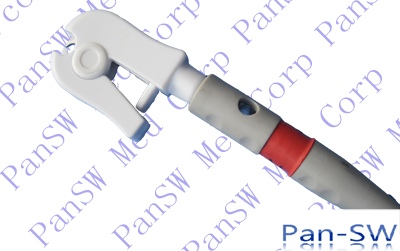

ECG Adapter Banana To Clip With Wire IEC – PanswMed

Product Details

Product type: ECG adapter
Compatible brand: Nihon Kohden
Connector / lead end: banana to clip adapters
Application: Converts ECG banana plug connections to snap, clip, grabber, or button electrode interfaces depending on model.
Options: AHA/IEC color coding and different lead-end styles are available for selection.

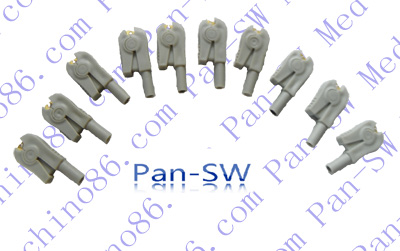

Reference / part code: EKG-ADP-1; counterpart of original Nihon Kohden part number: Y086; EKG-ADP-2; Nihon Kohden Original part number: N-08; EKG-ADP-3; EKG-ADP-4; EKG-ADP-5; Universal Flat Clip Adapter w Banana ECG Electrodes; Philips part number 989803166031

Application and Ordering Notes

  • Designed for ECG/EKG leadwire connection conversion between banana plugs and electrode ends.
  • Useful when adapting reusable electrodes, disposable electrodes, grabbers, clips, or snap electrodes.
  • Confirm plug size, color coding, and end style before ordering.

Product Images

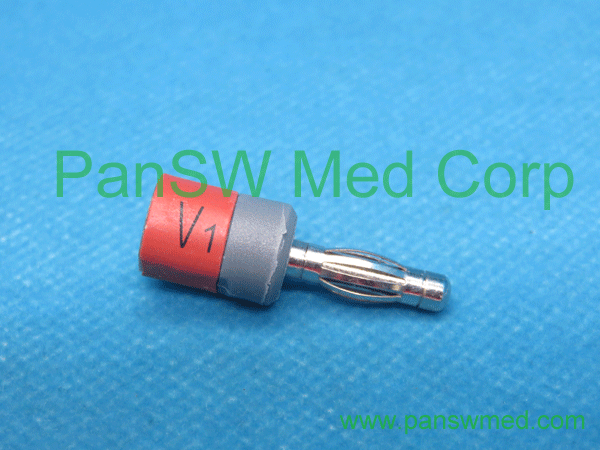

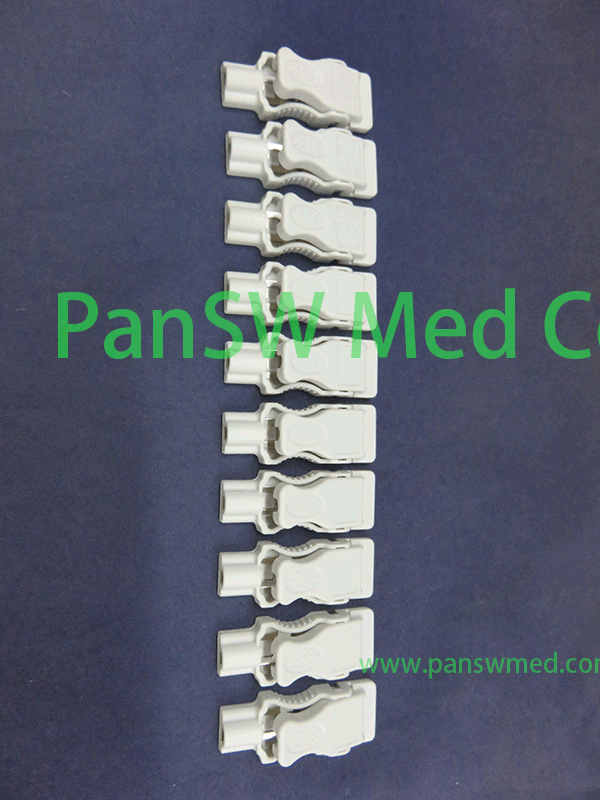

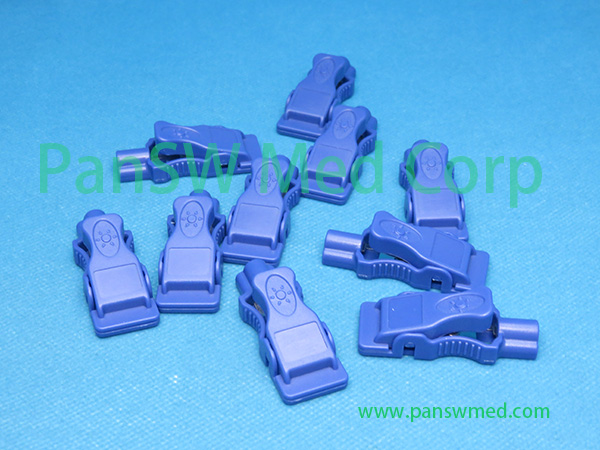

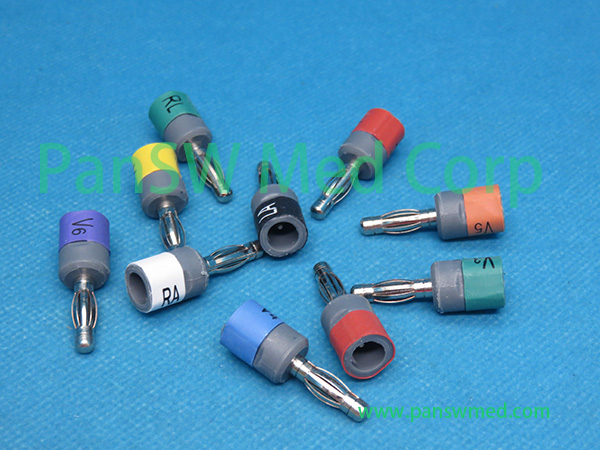

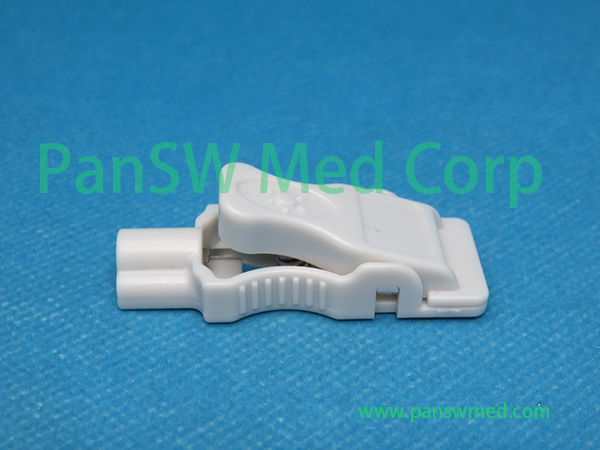

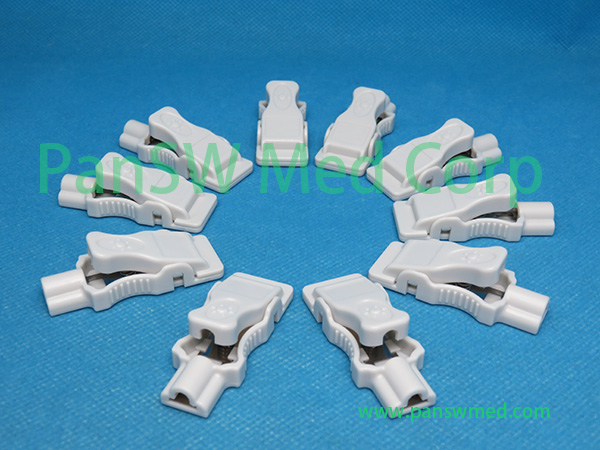

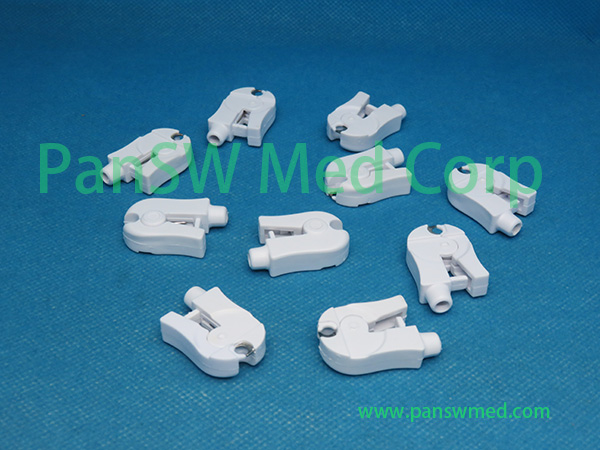

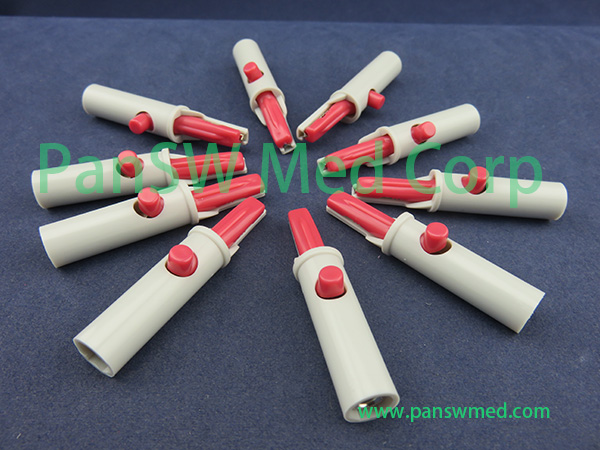

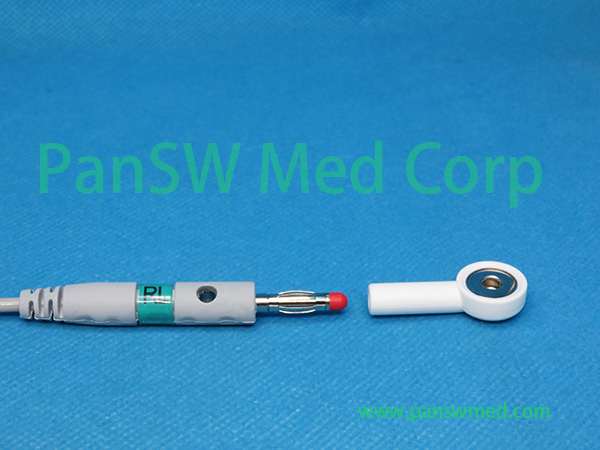

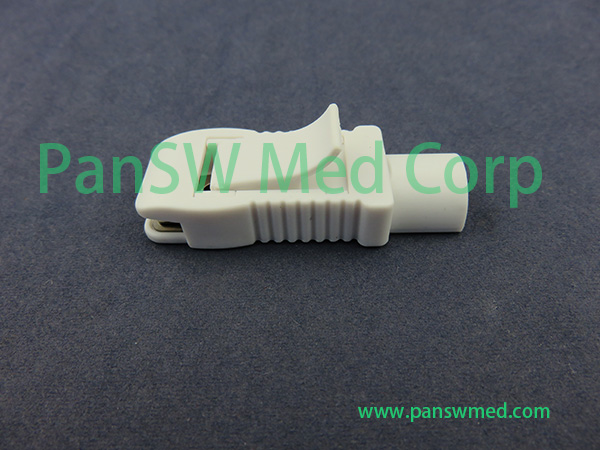

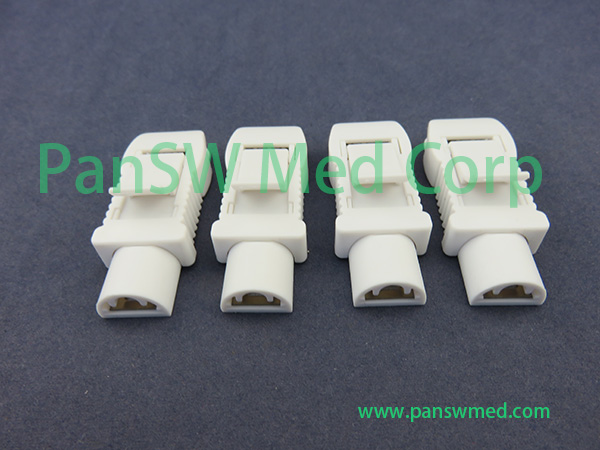

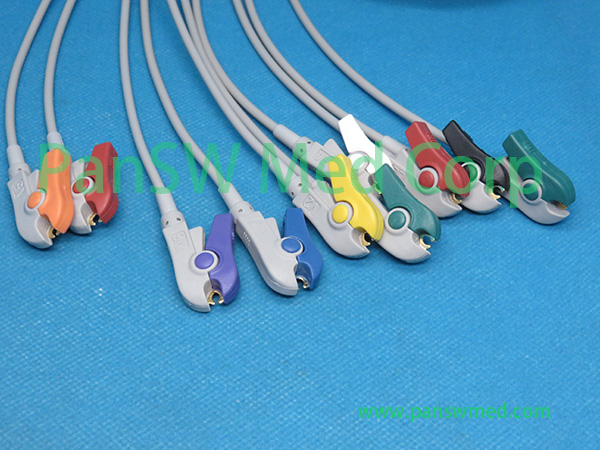

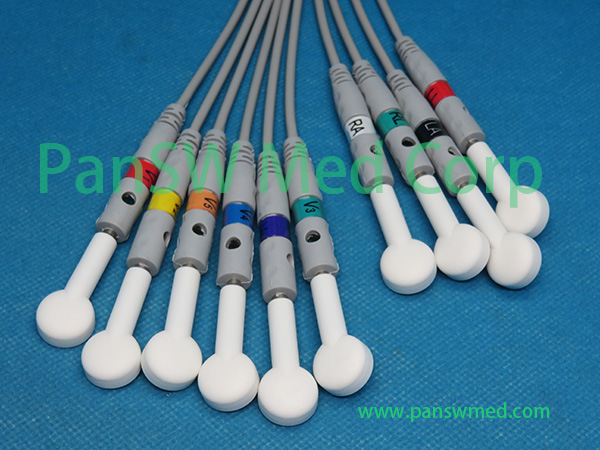

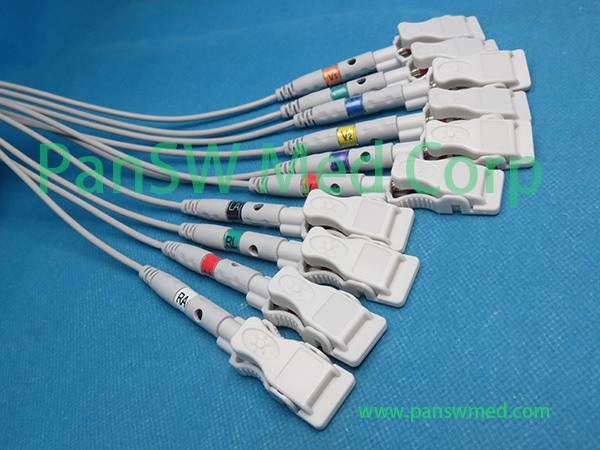

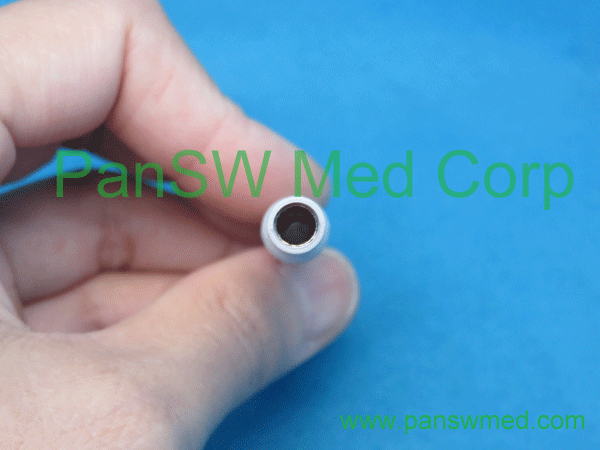

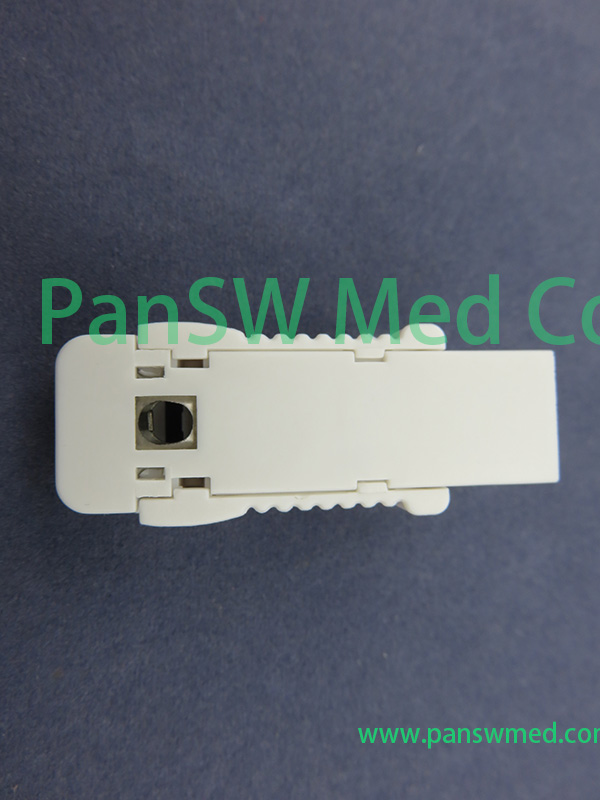

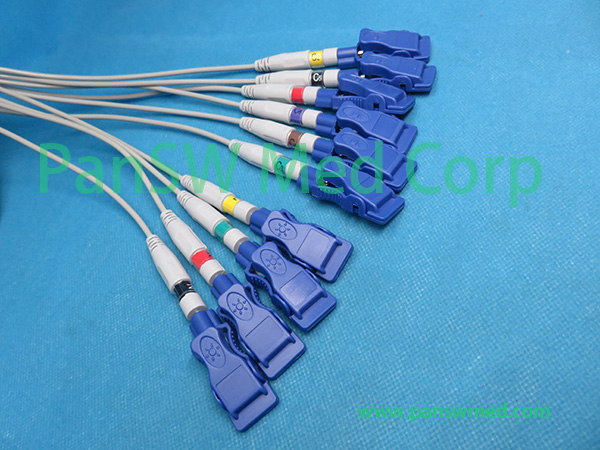

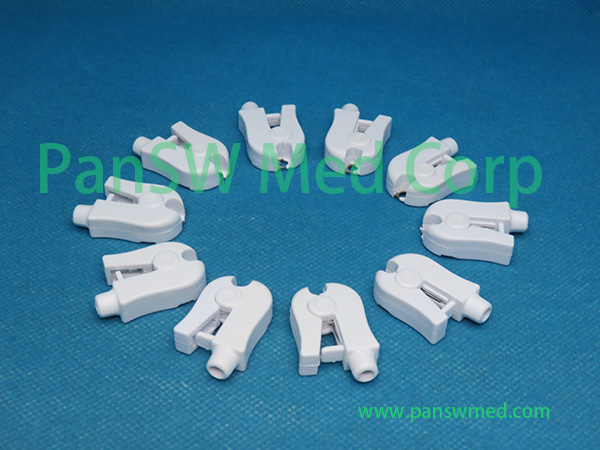

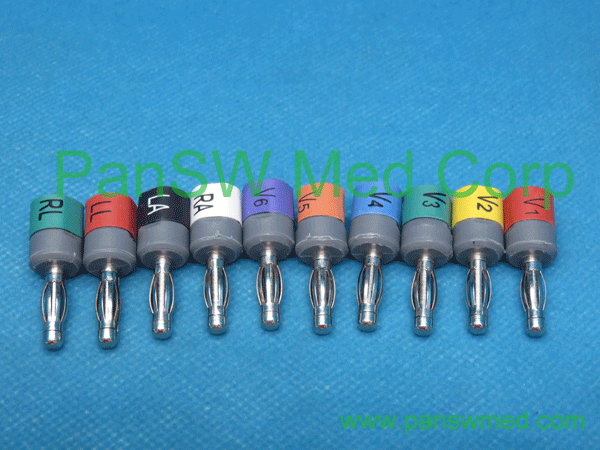

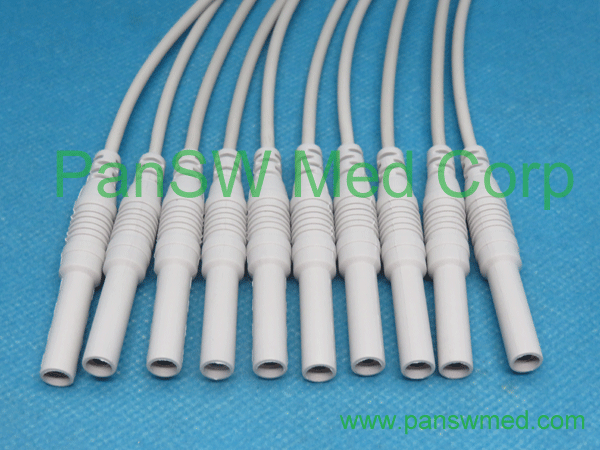

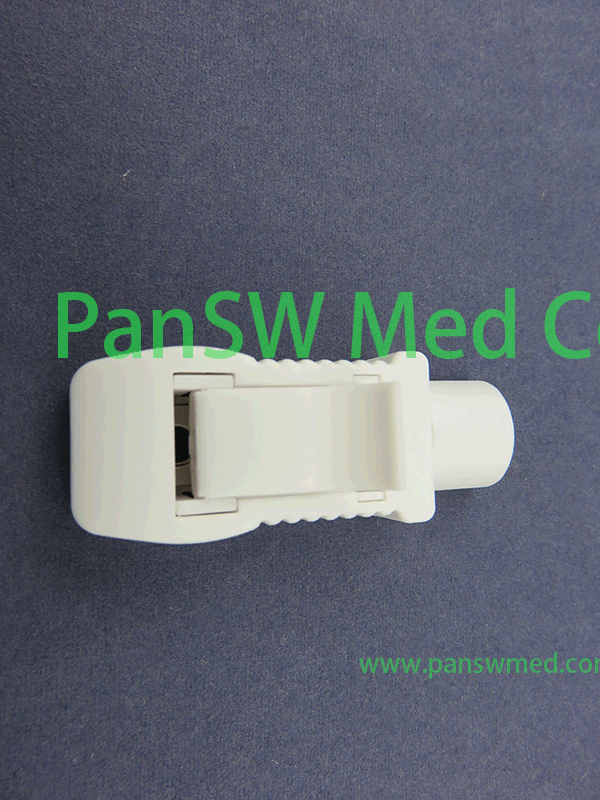

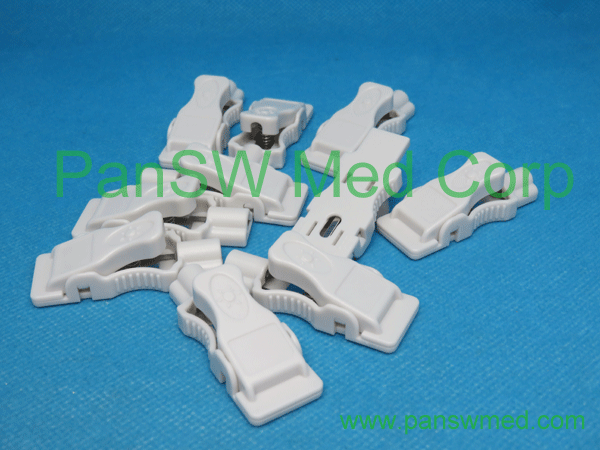

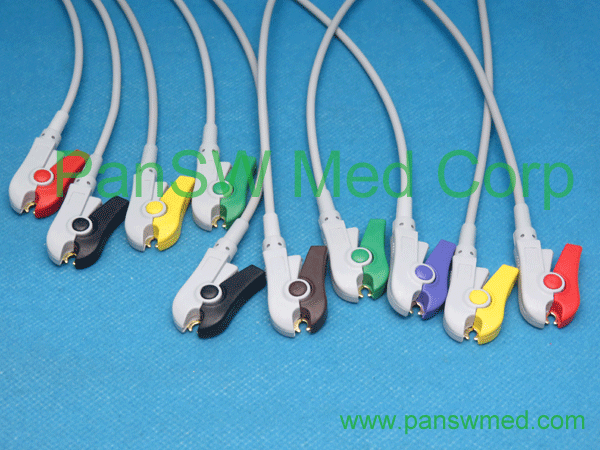

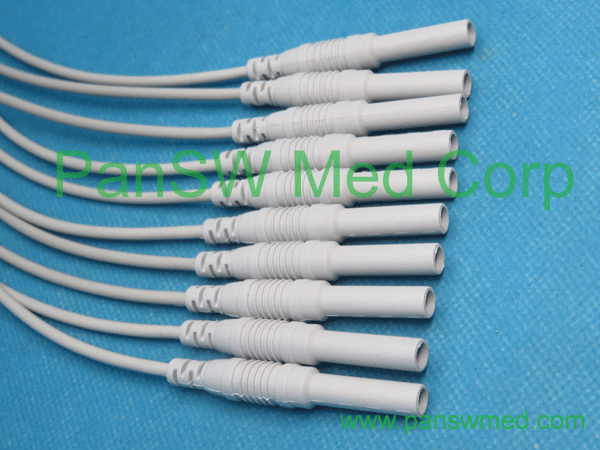

ECG Adapter Banana To Clip With Wire IEC 4 – PanswMed ECG Adapter Banana To Clip With Wire IEC 3 – PanswMed Compatible ECG Adapter Banana To Grabber 4 – PanswMed Compatible ECG Cable AHA Clip – PanswMed 2 - PanswMed Compatible Nihon Kohden N 08 ECG Adapter – PanswMed Compatible Bananas With Snaps AHA 6 – PanswMed Compatible ECG Cable 12 Leads For With Snap Adapters 4 – PanswMed 2 - PanswMed Compatible Philips 989803166031 ECG Cable Adapter – PanswMed 2 - PanswMed Compatible Flat Electrodes To Banana Adapter 1 – PanswMed

Quality and Compliance

Materials and production can be supplied according to professional medical cable requirements. Common references include ANSI/AAMI EC53, IEC 60601-1, ISO 10993-1, ISO 10993-5, and ISO 10993-10 where applicable.
