Description: Nellcor Oximax Finger Clip Spo2 sensor; DB9 connector, 9 pins
Compatible with: Nellcor Oximax
Original part number: DS-100A




Nellcor type clip

Pansw Nellcor Oximax spo2 sensors list:

Nellcor Oximax	DS-100A	RSP-10043A	adult finger clip spo2 sensor,3ft
		RSP-10043B	adult soft tip spo2 sensor,3ft
		RSP-10043H	adult soft tip spo2 sensor,10ft
	D-YSPD	RSP-10043C	pediatric finger clip spo2 sensor,3ft
		RSP-10043D	pediatric soft tip spo2 sensor,3ft
	D-YS	RSP-10043E	neonate wrap spo2 sensor,3ft
	D-YSE	RSP-10043F	adult ear clip Spo2 sensor,3ft
		RSP-10043G	animal tongue Spo2 sensor,3ft

Compatibilities: GE-Medical System:Dinasmap,PRO1000;Nellcor:N550,N595,Require adapter cable;

Tips: NOT compatible with: Nellcor N65; N-600x; GE Dash Oximax series monitor; Oximax equipped Spacelabs monitors such as 91220; For those machines we need another special sensor, please contact Pansw for more information and compatibilities.

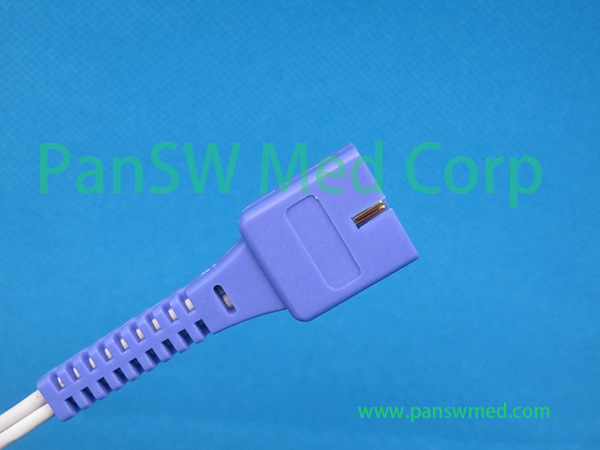

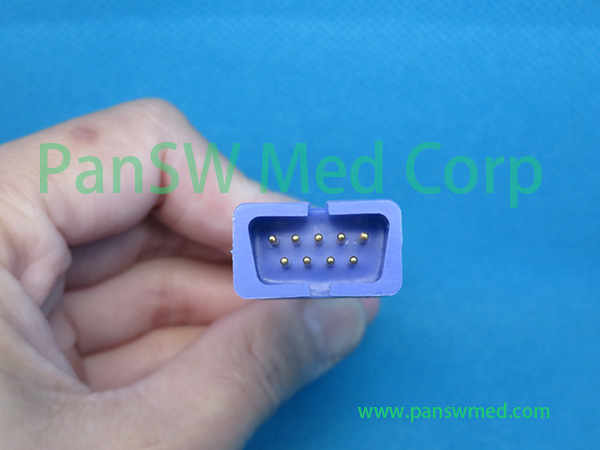

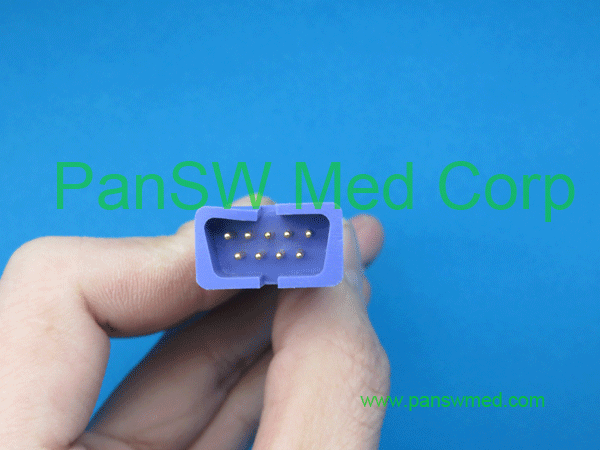

front view
Reference pins diagram value for engineers:
a, there is a 7.5k ohm resistor between pin 1 & pin 6;
b, pin 3-->LED anode; pin 2-->LED cathode;
c, pin 5-->photodector anode; pin 9-->photodetector cathode;
d, pin 6 for outer shielding; pin 7 for inner shielding;
e; LED & IR frequency: 660/905nm;
f; oximax chip is in between pin 4 & pin 8;

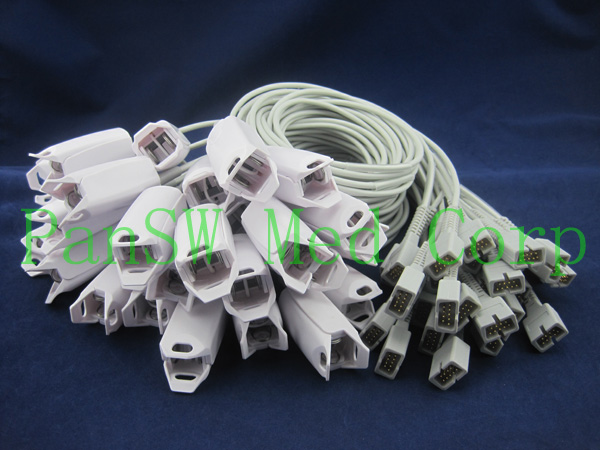

wholesale price

strong connector also soft and durable, a perfect match to the original female connector

For Nellcor early DS-100A equipped machines without Oximax, we recommend Nellcor DS-100A without Oximax to save cost.

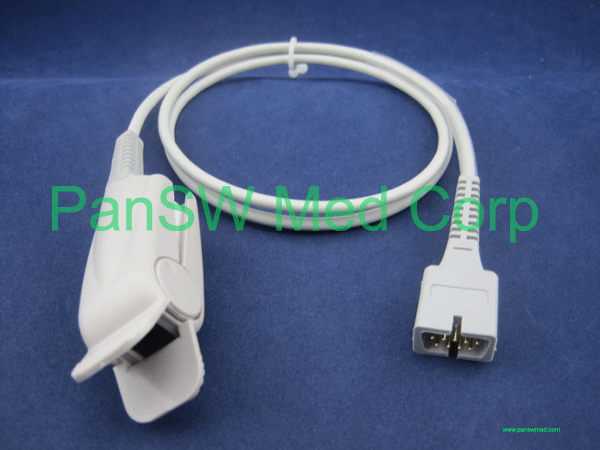

adult clip

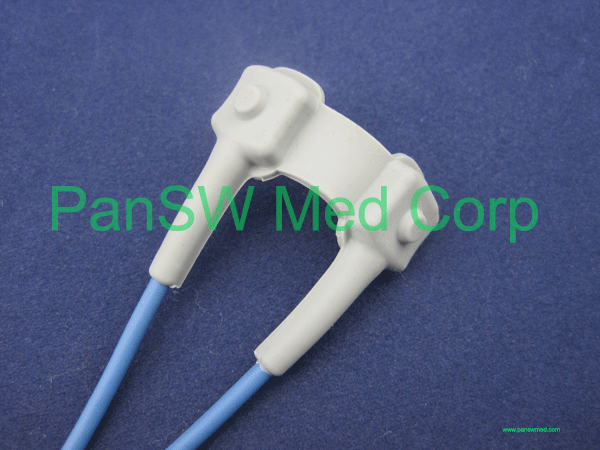

adult ear clip

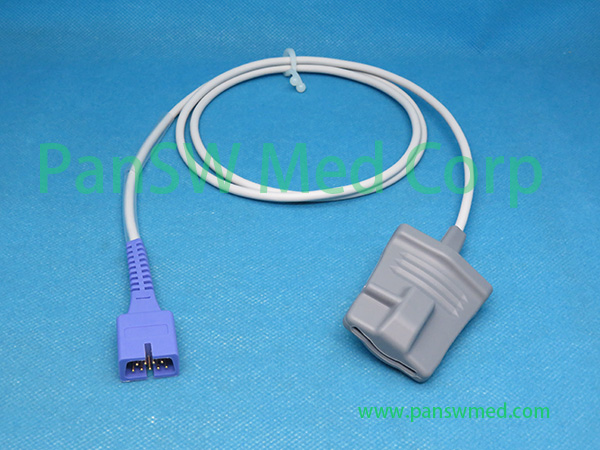

adult silicone soft

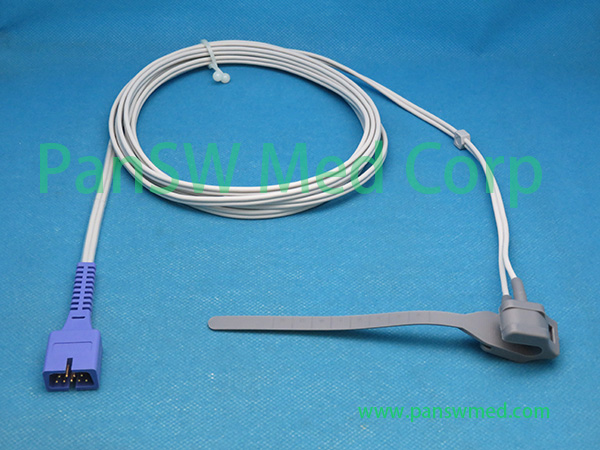

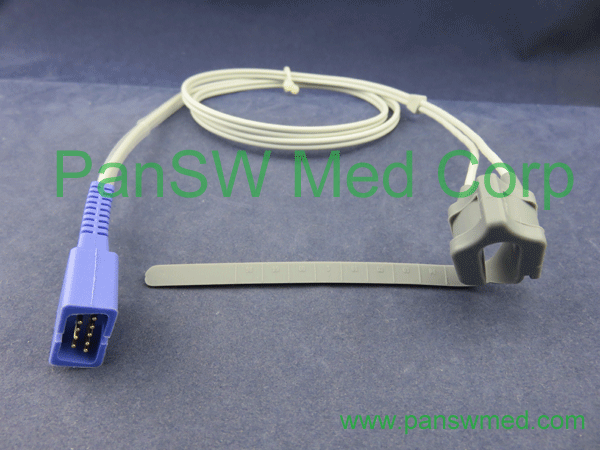

neonate wrap

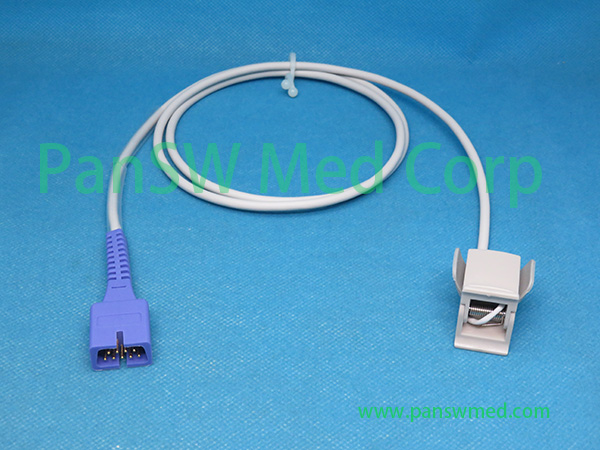

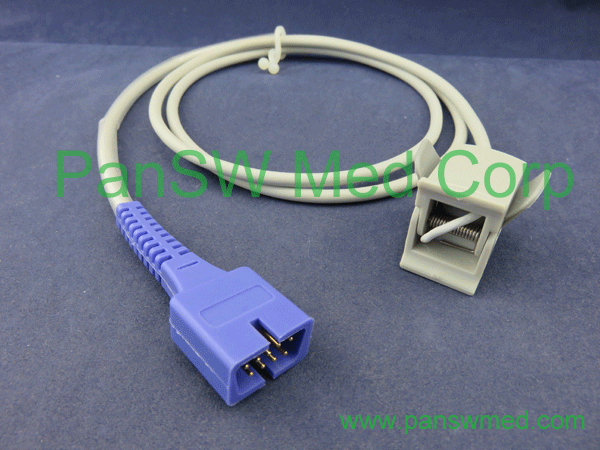

pediatric clip

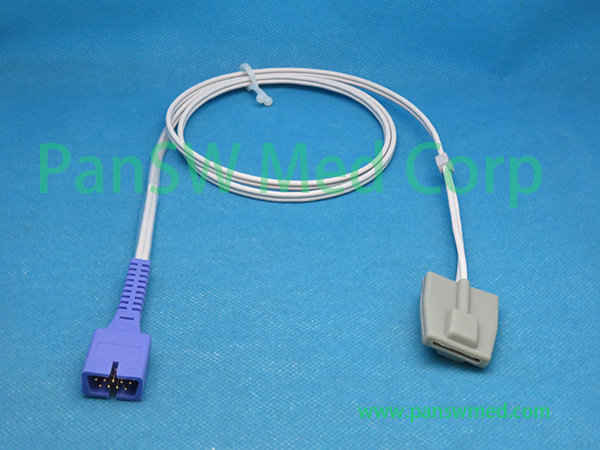

pediatric soft

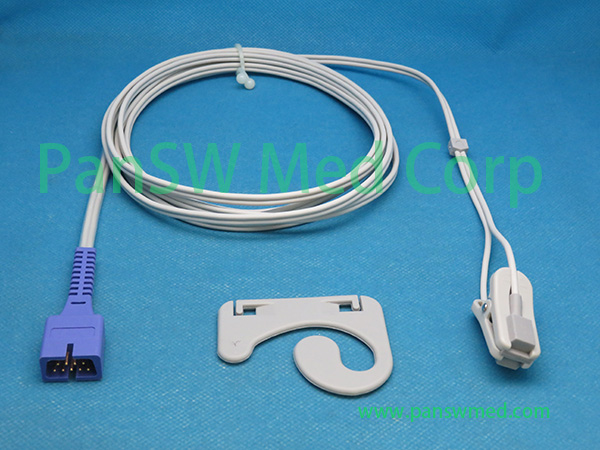

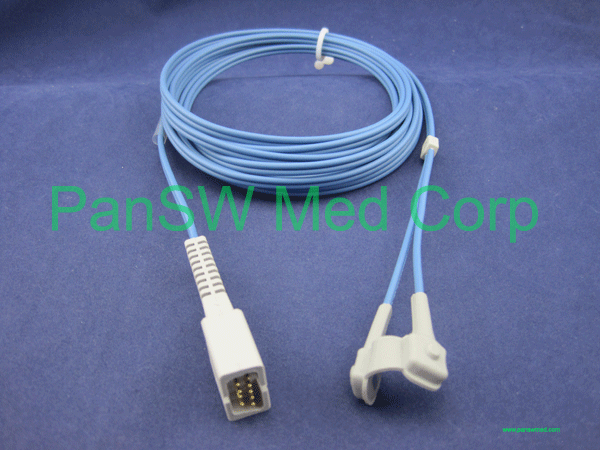

Compatible Nellcor Oximax SpO2 sensor, adult ear clip

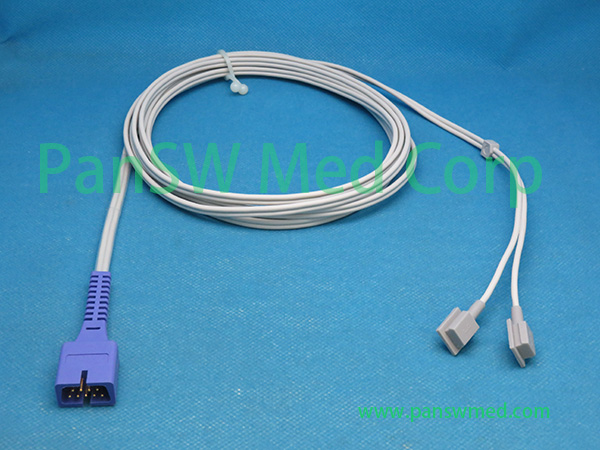

compatible Nellcor Oximax SpO2 sensor, multi site



compliance with EN60601-1 ISO80601-2-61 ISO 10993-1 ISO 10993-5 ISO 10993-10

compliance with RoHS
