Description for Bionet ecg cables please refer to the below
for more detailed pictures please click here

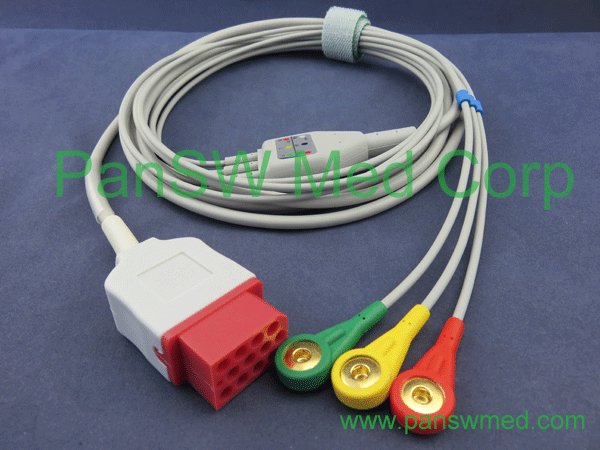

Description: connector: 8pin, three leads, electrode terminal:4.0 snap; TPU jacket wires; gold plated connector pins; integrated cable from machine to patients;
Compatible with: BIONET, BM3 Plus, BM31, BM3Vet; Econet: cardio M and cardio M plus
Pansw supplies Bionet cable with 5 leads, 3 leads, snaps end, clips even banana end upon request; Also we provide ECG trunk cables for LL style, DIN style or HP AA style; Please refer to the list following for the detailed products models;
| Bionet (Econet) | |||
| Part No | OEM No | Description | Compatibility |
| ECG-10033A | 3-lead, AHA, Snap | Bionet BM3 BM3 plus;BM5; Econet: cardio M and cardio M plus | |
| ECG-10033B | 3-lead, IEC, Snap | ||
| ECG-10033C | 3-lead, AHA, Clip | ||
| ECG-10033D | 3-lead, IEC, Clip | ||

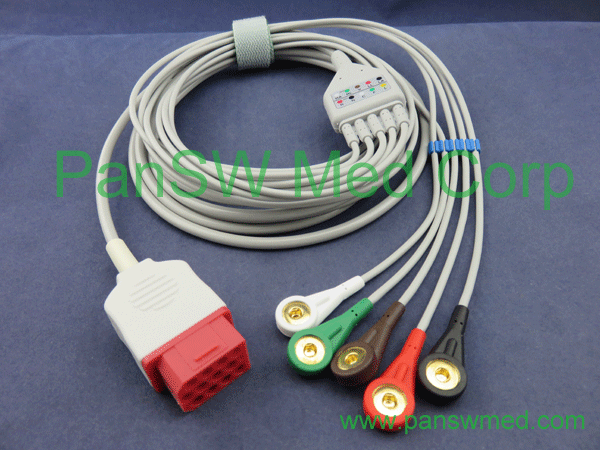

| ECG-10033E | 5-lead, AHA, Snap | ||
| ECG-10033F | 5-lead, IEC, Snap | ||
| ECG-10033G | 5-lead, AHA, Clip | ||
| ECG-10033H | 5-lead, IEC Clip | ||
| ECG-10073A | 3-lead, AHA, Snap | BM5 | |
| ECG-10073B | 3-lead, IEC, Snap | ||
| ECG-10073C | 3-lead, AHA, Clip | ||
| ECG-10073D | 3-lead, IEC, Clip | ||
| ECG-10073E | 5-lead, AHA, Snap | BM5 | |
| ECG-10073F | 5-lead, IEC, Snap | ||
| ECG-10073G | 5-lead, AHA, Clip | ||
| ECG-10073H | 5-lead, IEC, Clip | ||
Description for Bionet ecg cables please refer to above
for more detailed pictures please click here
Core technology:
1, All the leads we have longer length to coordinate with bigger size patients without difficulty.
2, the shileidng we have "Super-shield" technology to make it completely grounded and prevent any signal interference even in the complicated OR environment
3, the wires we use bigger size, very robust and durable; surface is convenient for cleaning
compliance with ANSI/AAMI EC53 EN60601-1 ISO 10993-1 ISO 10993-5 ISO 10993-10
compliance with RoHS
